SPX FLOW Deltech FLEX Series User Manual

10

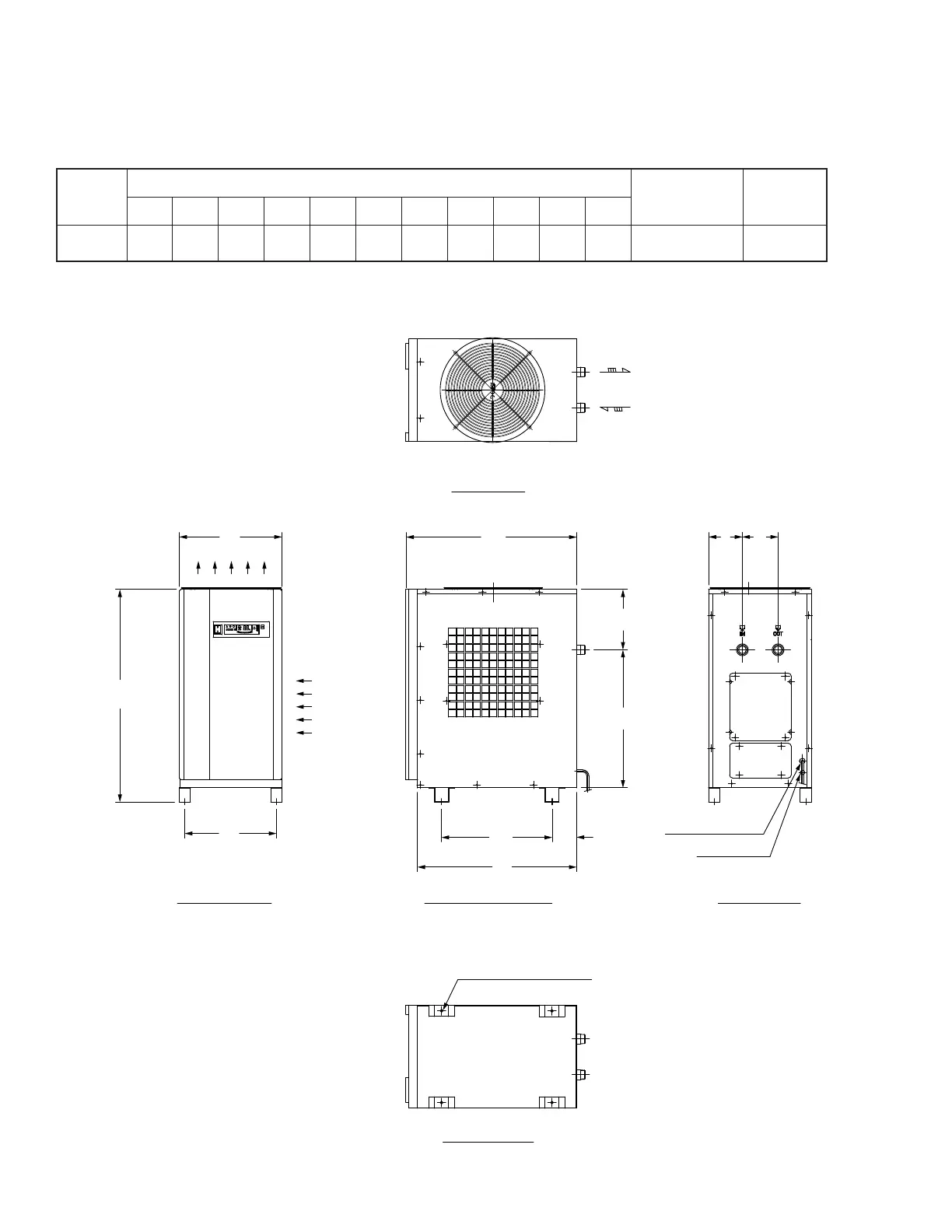

DRAWINGS: GENERAL ARRANGEMENT
Figure 5A
Model: DFX 1.1
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H I J K
DFX 1.1
4.69
(119)
4.97
(126.2)
8.41
(213.5)
19.20
(487.7)
14.27
(362.4)
29.58
(751.2)
12.75
(324)
23.72
(602.5)
3.39
(86.2)
15.40
(391.2)
22.14
(562.4)
1" NPT
120
(54.5)
DRIED AIR OUTLET
WETTED AIR INLET
AIR FLOW
COOLING
C
D
E
F
G
MAIN POWER CABLE
A B
4-Ø10 MOUNTING HOLES
DRAIN OUTLET
FOOT PRINT
FRONT VIEW REAR VIEWRIGHT SIDE VIEW
TOP VIEW
H
J
K
I
