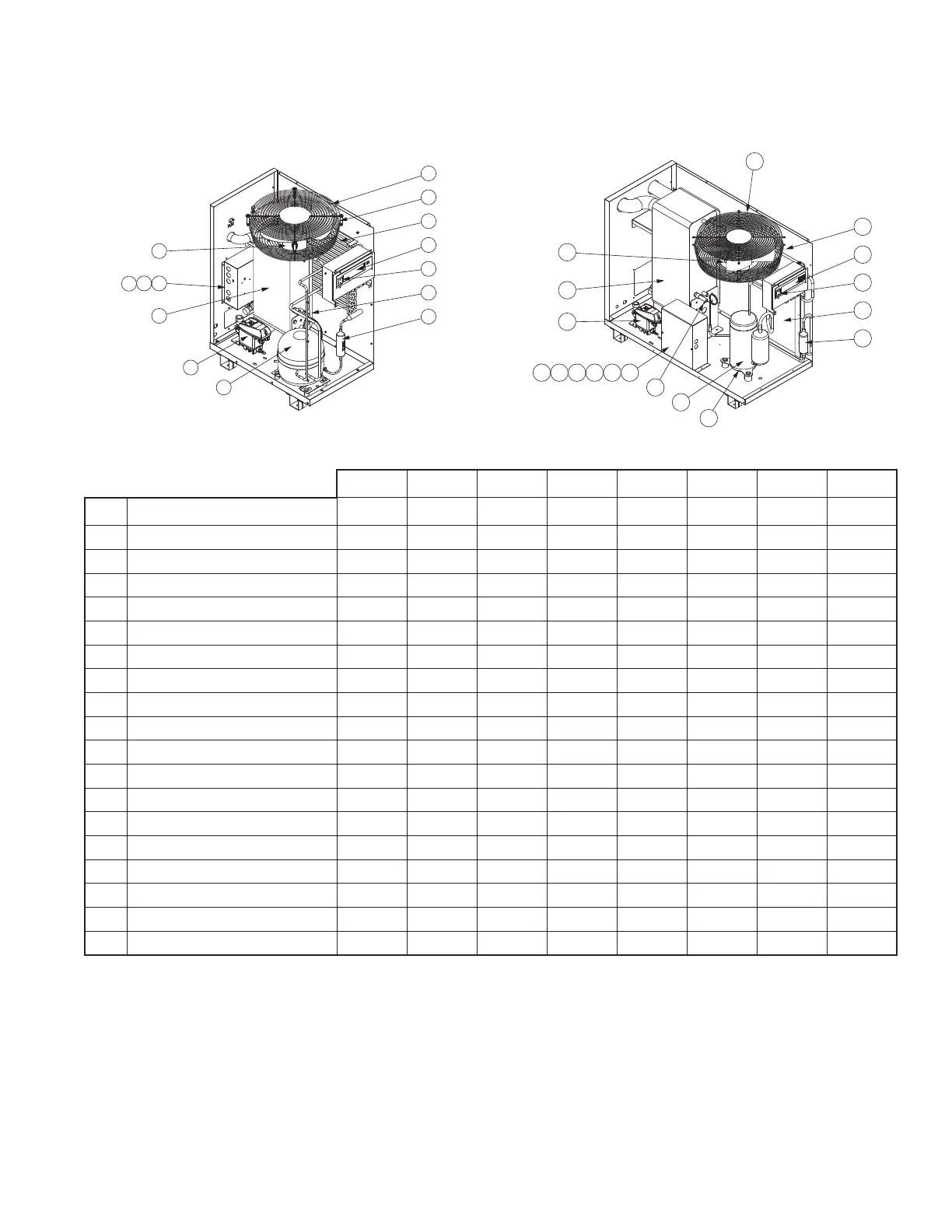

REPLACEMENT PARTS
DFX 1.1 DFX 1.2 DFX 1.5 DFX 2.1 DFX 3.1 DFX 4.1 DFX 4.5 DFX 5.5
ID# Part name
(115V) (115V) (230V) (230V) (460V) (230V) (460V) (460V
1 Refrigerant Compressor 7440069 7440070 7433660 7433661 3093041 7433664 7439957 7440109
2 Condenser 7440044 7440045 7440110 7439968 7440111 7439967 7439967 7440112
3 Fan Motor 3161243 3161243 7433673 7433673 7440057 7440113 7440057 7439969
4 Fan Grill 7426017 7426017 7426018 7426018 — 7440046 — —
5 Fan Grill (Ext.) 7440058 7440059 7440059 7440059 7440061 7440060 7440061 7440000
6 Filter Dryer 3142596 7433676 7433676 7433676 7433676 7433676 7433676 7433676
7 Plate Heat Exchanger 7440039 7440114 7440115 7440116 7440117 7440118 7440118 7440119
8 High Pressure Switch 3161273 3161273 7433678 7433678 7433678 7433678 7433678 7433678
9 No Loss Drain Valve 7440053 7440053 7440053 7440053 7440053 7440053 7440053 7440053
10 OPTi-Eco PCB+LCD 7440050 7440050 7440051 7440051 7440051 7440051 7440051 7440051
11 Temperature Sensor 7440054 7440054 7440055 7440055 7440056 7440056 7440056 7440056
12 Magnetic Contactor (Compressor) 7433697 7433697 7433697 7433697 3242864 7433698 3242864 3242864
13 Magnetic Contactor (Fan) — — — — 3242863 — 3242863 3242863
14 On/Off Switch 3209745 3209745 7440052 7440052 7440052 7440052 7440052 7440052
15 Start Capacitor — 7433696 — — — — — —
16 Run Capacitor 7440065 7433691 7433692 7433693 — 7433695 — —
17 Crankcase Heater — — 7440132 7440066 7439996 7440067 7439996 7439996
18 Voltage Transformer — — — — 7439965 — 7439965 7439965
3
7
9
18 16 15 13 12 8
1
17
11
6
2
14
10
4
5
1
4
3
5
10
2
6
14
11
16 12 8
7
9
FLEX 1.1
FLEX 1.2 - FLEX 5.1
3
7
9
18 16 15 13 12 8
1
17
11
6
2
14
10
4
5
1
4
3
5
10
2
6
14
11
16 12 8
7
9
FLEX 1.1
FLEX 1.2 - FLEX 5.1
Model: DFX 1.1 Models: DFX 1.2, DFX 1.5, DFX 2.1, DFX 3.1, DFX 4.1,
DFX 4.5, DFX 5.5
Phone: +1 724 745 8647
Email: deltech.amer.cs@spxflow.com
Web: www.spxflow.com/deltech
