SPX 2065 - 2065 LV - 2065 - 2065 HV Pump Parts

Parts Lists Waukesha Cherry-Burrell
Page 58 95-03009 10/2010

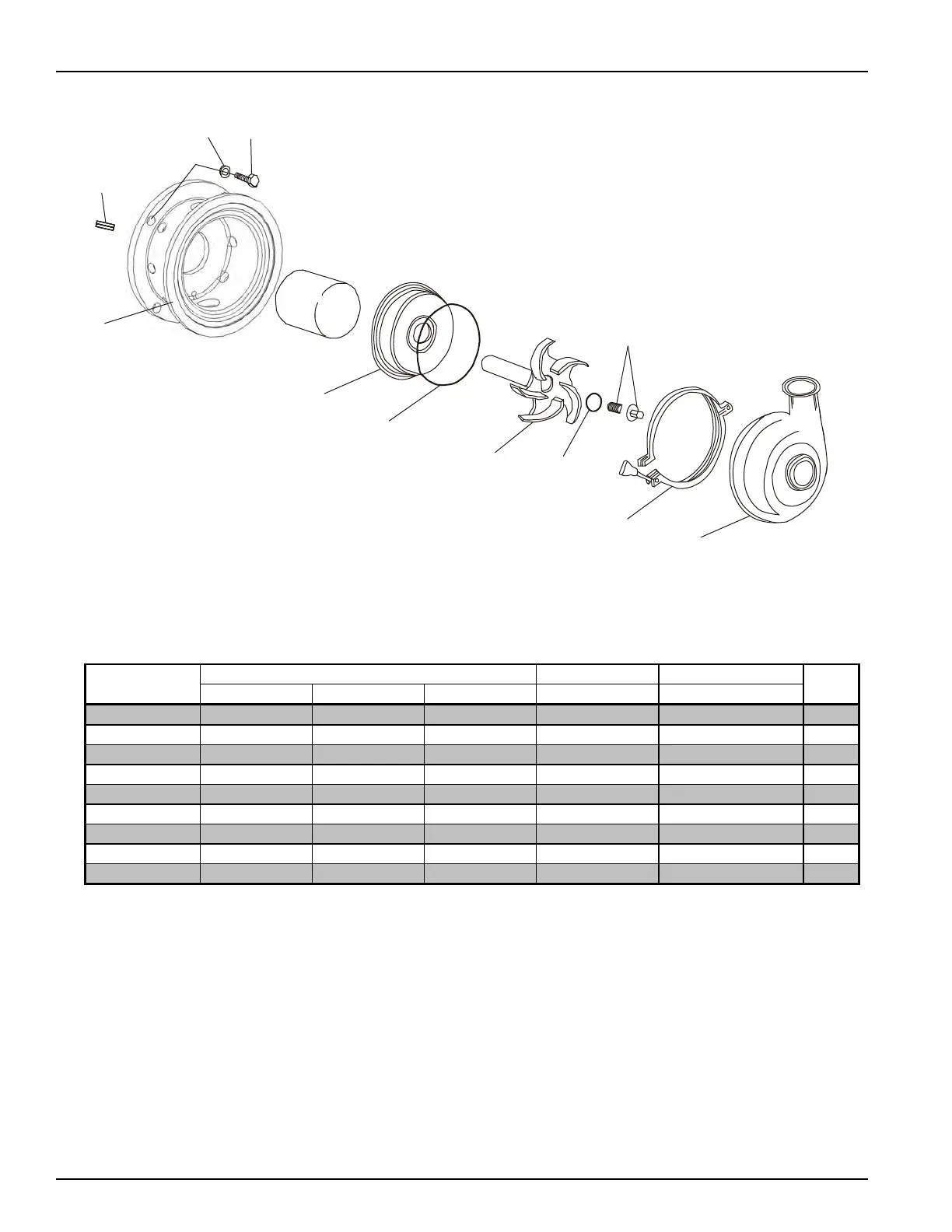

2065LV - 2065 - 2065HV Pump Parts
CT100-113a
Seals
12
8
7
5
10
9
2
4
11
1
3
2065LV - 2065 - 2065HV Casing Parts
2065 SANITARY 2065HV SANITARY
1-1/2 x 1-1/2 2 x 1-1/2 2-1/2 x 1-1/2 2-1/2 X 2 3 X 2
S-Line (MP) CENTPT00569 CENTPT00455 CENTPT00413 CENTPT00417 CENTPT00570
Bevel Seat CENTPT00571 CENTPT00572 CENTPT00573 CENTPT00574 CENTPT00575
I-Line; Female CENTPT00576 CENTPT00577 CENTPT00578 CENTPT00579 CENTPT00580
I-Line; Male CENTPT00581 CENTPT00582 CENTPT00583 CENTPT00584 CENTPT00585
Q-Line CENTPT00586 CENTPT00587 CENTPT00588 CENTPT00589 CENTPT00590
Weld CENTPT00591 CENTPT00592 CENTPT00593 CENTPT00594 CENTPT00595
NPT; Male CENTPT00596 CENTPT00597 CENTPT00598 CENTPT00599 CENTPT00600 1
NPT; Female CENTPT00601 CENTPT00602 CENTPT00603 CENTPT00604 CENTPT00605 1
150 LB. Flange CENTPT00606 CENTPT00607 CENTPT00608 CENTPT00609 CENTPT00280 1
PL5030-CH4
NOTES:
1. These casings
do not
meet the requirements of 3A Sanitary Standards.
NOTES
FITTING TYPE
2065LV SANITARY
