SPX 2065 - Motor Mounts; Motor Shaft Shims

Parts Lists Waukesha Cherry-Burrell
Page 70 95-03009 10/2010

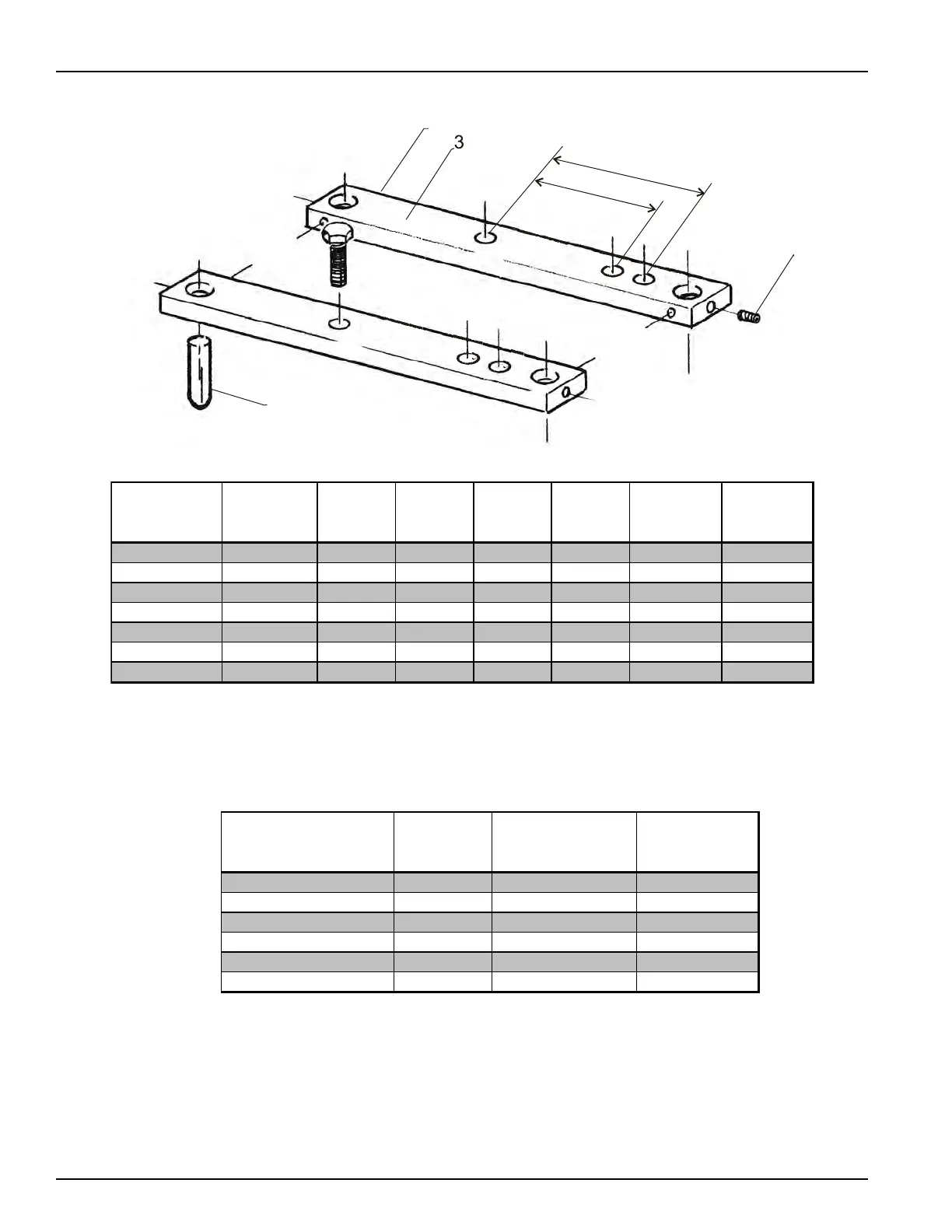

Motor Mounts
1
2
4
CT100-123b
A
B
143/145 JM/TC 110256+ 110262+ 110264+ 30-151 30-625 4.0 5.0
182/184 JM/TC 110255+ 110261+ 110264+ 30-30 30-625 4.5 5.5
213/215 JM/TC 110254+ 110260+ 110264+ 30-30 30-625 5.5 7.0
254/256 JM/TC 110253+ 110259+ 110263+ 30-36X 30-626 8.25 10.0
284/286 JM/TC 110252+ 110258+ 110263+ 30-36X 30-626 9.5 11.0
324/326 JM/TC 110251+ 110257+ 110263+ 30-24 30-626 10.5 12.0
364 JM/TC 110251A 110257+ 110263+ 30-24 30-626 10.5 12.0
PL5030-CH26
"A"
DIMENSION
(in.)
"B"
DIMENSION
(in.)
FRAME
COMPLETE
MOUNTING
KIT
ITEM 3
(HHCS)
PART NO.
ITEM 1
(BAR)
PART NO.
ITEM 2
(LEG)
PART NO.
ITEM 4
(SHSS)
PART NO.
Motor Shaft Shims
.005" THICK 35-4 254JM-326JM AS REQUIRED
.010" THICK 35-5 254JM-326JM AS REQUIRED
.020" THICK 35-6 254JM-326JM AS REQUIRED
.005" THICK 35-1 142JM-215JM AS REQUIRED
.010" THICK 35-2 142JM-215JM AS REQUIRED
.020" THICK 35-3 142JM-215JM AS REQUIRED
PL5030-CH27
MOTOR SHAFT SHIM PART #
MOTOR NEMA
FRAME SIZE
QTY.
