SPX C.A.T4 - Using; Locator Features; Transmitter Features; Screen Features

4 5

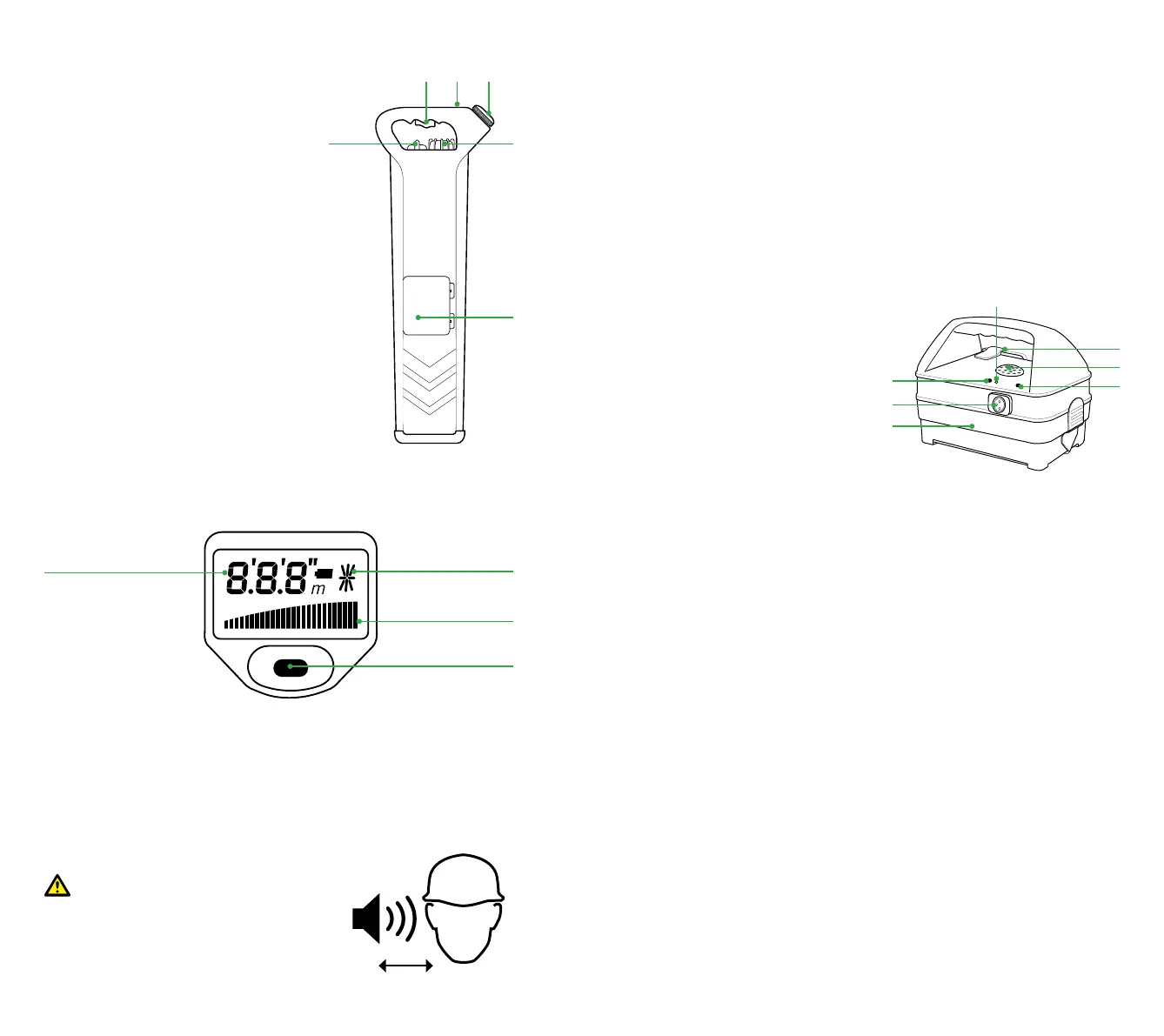

C.A.T4 Locator Features
1. On/Off Trigger.
Press and hold to use the C.A.T4.
2. LCD Screen and Depth button.
Displays signal level and
status information.
3. Loudspeaker.
Detachable speaker for use
in noisy environments.
4. Sensitivity Control.
5. Function Switch.
Selects locate mode.
6. Battery compartment.
C.A.T4 SCREEN FEATURES
The C.A.T4 screen displays the following features:
21 3
NOTE: The screen in gC.A.T4 models may remain active for up to
30 min, depending on the locator’s settings. Refer to the GPS/
GNSS Operation paragraph for further info.
C.A.T4 SPEAKER
When using the C.A.T4 in noisy environments, the speaker can be
detached and held closer to the ear.
To avoid excessive noise exposure,
hold the speaker no closer than 15cm
(6") from the ear. Prolonged use in this
position should be avoided.
Genny4 Transmitter Features
1. On/Off button.
Press to switch On and Off. Hold down when switching on to
reduce volume.
2. Signal Boost Button.
Press to boost locate signal strength; press again to return to
standard power. Genny4 starts-up in standard signal strength
mode.
3. Signal Boost LED.
LED lit when high signal strength
power level selected. Flashing
LED indicates low battery level.
4. Accessory socket.
5. Loudspeaker.
6. Battery compartment.
7. Accessory storage
compartment.
Genny4 signals can be detected by all previous 33 kHz C.A.T models
including C.A.T
3
. C.A.T4 will also locate Genny
3
signals.
Genny4 provides a second locate signal alongside the 33kHz signal
which can be located by C.A.T4 to assist in locating smaller cables
and spurs. Previous C.A.T models are not designed to locate this
signal.
Using the Genny4
The Genny4 is used to actively apply a locate signal to pipes or
cables. This signal can be traced using the C.A.T4 locator in either
Avoidance Mode or Genny mode. Use of the Genny is strongly
recommended, as passive power or radio signals may not be present,
or detectable, on all pipes and cables.
SIGNAL BOOST MODE
The Signal Boost button will increase the output signal level to give
better signal on the pipe or cable, and may increase the useable
locate distance from the Genny4. In Signal Boost mode the Signal
Boost LED will light. The Signal Boost switch toggles between high
and normal output.
5
4
6
GPS/GNSS indicator /
Depth / Warning readout
Mode / StrikeAlert /
SWING indicator
Signal Strength
bargraph
Depth estimation
button
1
5
6
2
4
7
3
15cm
91dB(A)
