16
SRAM S7
MAINTENANCE
Technical Manual 2006
• Unscrew fixed cone (36).
• Remove driver (35), compression spring
(33) with cover (32), large compression
spring (31), ball retainer (34), gear ring (30)
and coupling gear (29).
• Compress spring (26) and remove thrust
block (28).
• Remove cover (27), spring (26) and
cover (25).
• Dismantle retaining washer (24).
• Remove thrust washer (23) and plastic
profile washer (22).
• Unscrew grub screw (17) (Caution: It is
subject to spring pressure) – and dis-
mantle the long compression spring (18)
guide pin (19), thrust block (20) and the
short compression spring (21).
REASSEMBLY HUB

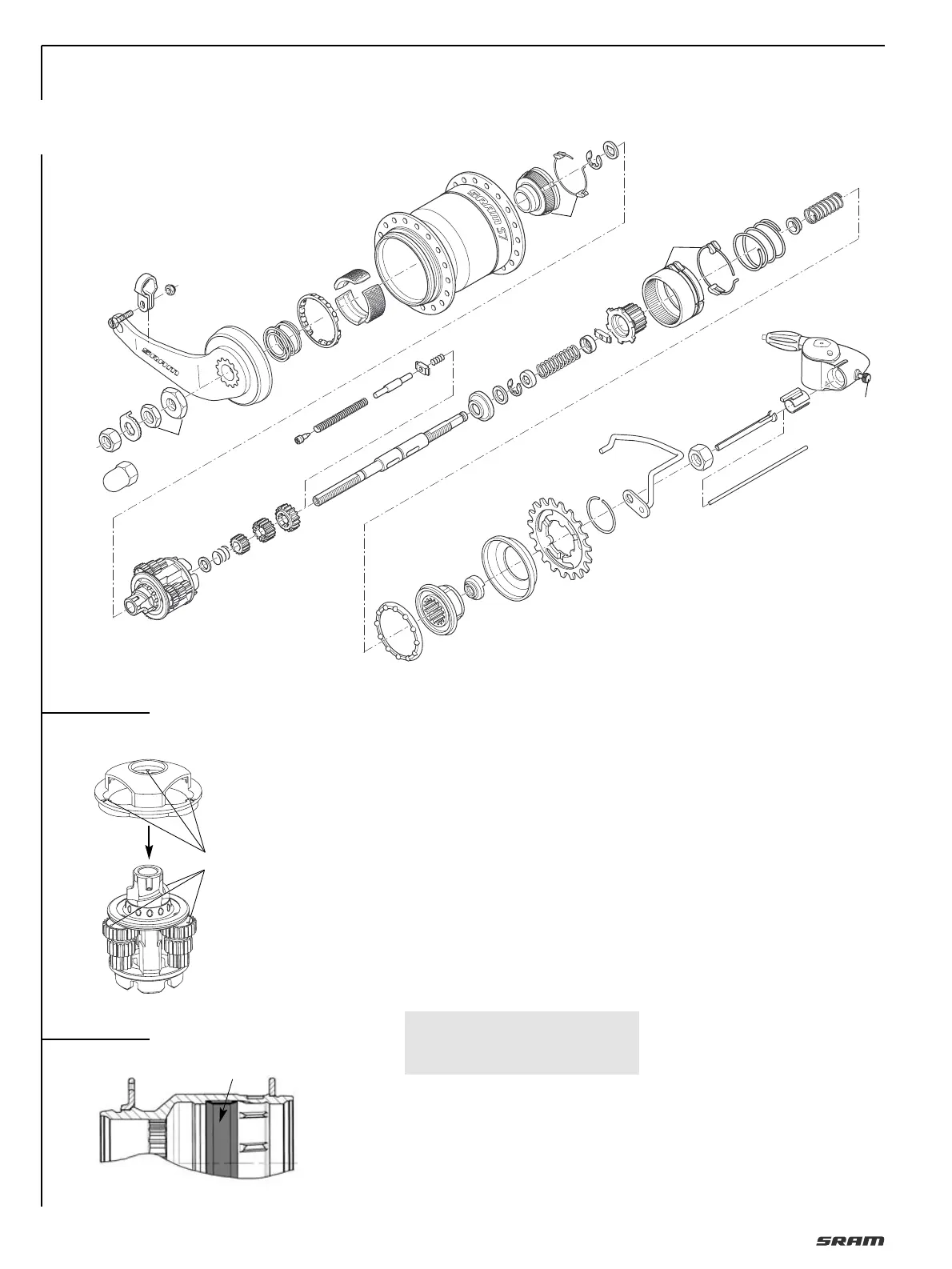

see Fig. 1
Lubrication see “
MAINTENANCE/
LUBRICATION
“.
• Insert into the axle (on the side with the
internal thread):
Short compression spring (21), thrust
block (20) – it is the same both sides, guide
rod (19) – it is the same both sides, long
compression spring (18).
• Compress spring and fit grub screw (17).
2
3
SRAM S7 mounting aid
Part No. 65 0324 103 000
1
1
2
3
4
5
6
7
8
9
16
17
18
21
22
23
24
25
26
15
12
13
14
10
11
31
32
33
42
43
40
41
39
38
37
36
35
34
27
28
29
30
19
20
X
44
NEW
NEW
NEW
REMOVE WHEEL
• Place shifter in gear position “1“.
• Loosen the knurled screw (44, Fig. 1) and
pull the Clickbox off the axle.
• Disengage the red location sleeve (43)
and pull it off.
• Remove shift rod (42) and shift tube (41)
out of the axle bore.
• Remove wheel.
DISMANTLING HUB
see Fig. 1
• Remove circlip (38), sprocket (37) and
dust cap (36) as normal.
• Clamp hub by the axle between alu-
minum jaws with sprocket side facing
downwards.
• Unscrew both locknuts (1).
• While turning clockwise, remove lever
cone (2) with friction spring (3) and ball
retainer (4).
• Take out 3 brake segments (5).
• Withdraw hub sleeve (6) upwards.
• Remove brake cone (7).
• Take out retaining washer (8) and thrust
washer (9).
• Remove planetary gear carrier (10),
washer (11) compression spring (12) and
the three sun gears (13, 14, 15).
• Clamp other axle end.
