SRAM DualDrive 27 - SRAM VT 5000; VT 3000 Maintenance

63

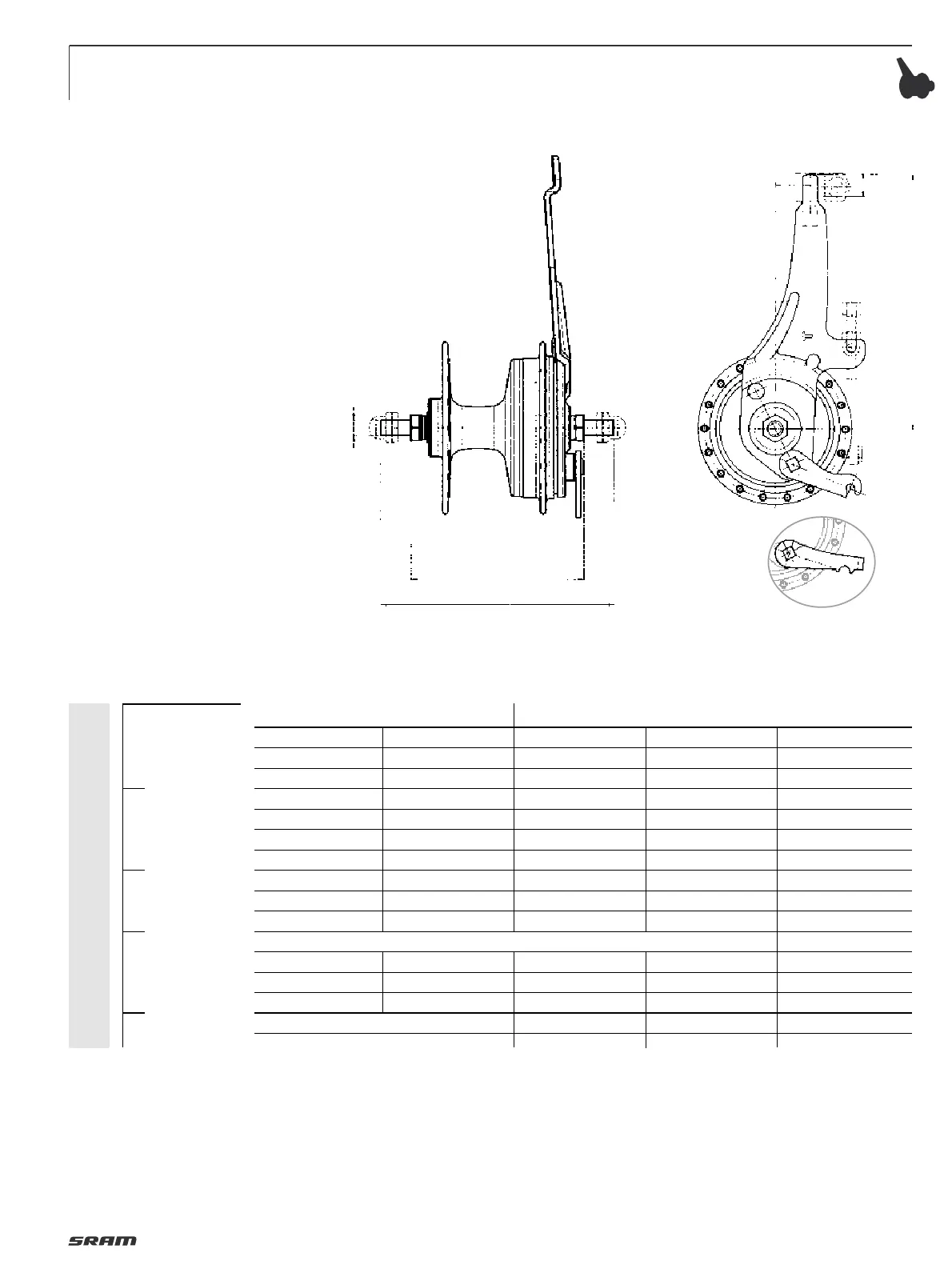

SRAM VT 5000 / VT 3000
TECHNICAL DATA / ASSEMBLY REQUIREMENTS
Technical Manual 2006
D
R
U
M
B
R
A
K
E
Typ VT 5000
Version D
Version NL
100
M9x1
136
158
21,5
9,5
14
VT 5000 VT 3000
Part No. — — —
❘
— —
❘
—
Brake anchor plate Version D Version NL Version D Version NL
Over Locknut Dim. 100 mm 100mm 100mm 100mm
Length 135 mm 135mm 135mm 135 mm
Type Solid Solid Solid Solid
Material Steel Steel Steel Steel
Ends Diameter M9x1 M9x1 M9x1 M9x1
Holes 36 36 36 36
Hole Diameter 2.9 mm 2.9mm 3/3.3 mm 3/ 3.3mm
Hole Reference ø 89 mm 89 mm 86mm 86mm
Hand Brake Lev. Comp. see page 64 / Cable moving distance 15 mm and leverage 3.8 – 4.2
Bearing Cartridge Cartridge Cartridge Cartridge
Sealing Lip Seal Lip Seal Lip Seal Lip Seal
Weight 750g 750g 770g 770g
Hub Shell Material Aluminum Aluminum/galvananized Steel
Finish Clear Coat
Aluminum/Silver
❘
Silver Silver
❘
Black
➔
➔
➔
AxleSpokeFinish
Front fork:
The strength must be such that with a
maximum torque of 300 Nm (2700 in.lbs.)
on the wheel no residual deformation can
occur on the front fork.
Warning:
• There is a risk of accident if unsuitable
forks are used!
• Not suitable for tandem use.
• Wheel size: only 24"/26"/28" wheels are
suitable for use.
