Technical Manual 2006
66
i-LIGHT

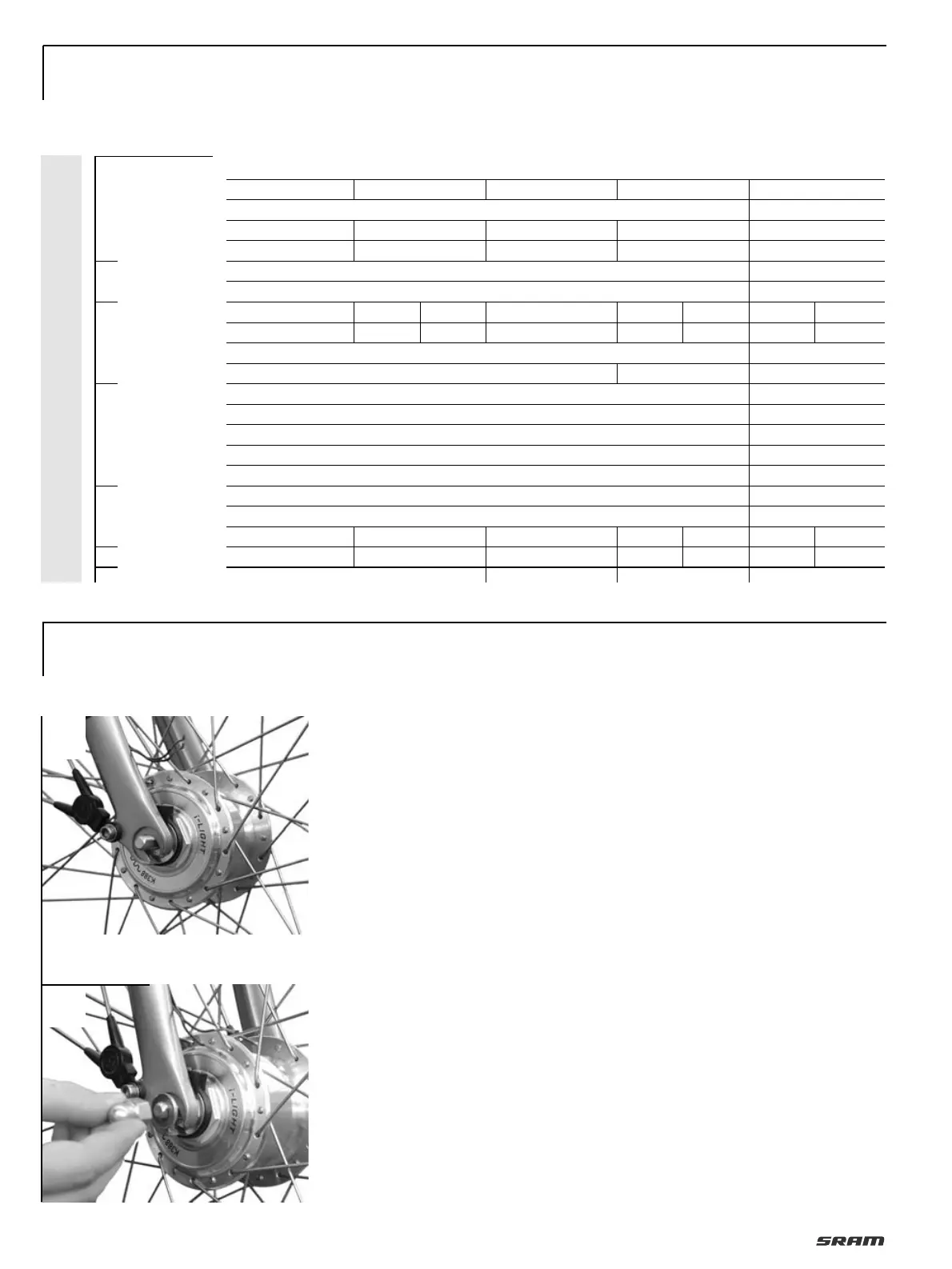

TECHNICAL DATA / ASSEMBLY REQUIREMENTS
i-LIGHT
ASSEMBLY
ASSEMBLY
• Align the front wheel with hub dynamo in
its mounting position.
The connection terminal of the hub
dynamo should be on the right side (when
the bicycle is facing forward) (Fig. 1).
• Assemble fender stays and basket stays.
Make sure that the hub washer and hub
nut have been put on in the correct order
(Fig. 2).
Fastening wheel / solid axle:
•
Tighten the hub nut.
– Tighten the left and right hub nuts alter-
nately, little by little, to course that the
hub dynamo connection terminal do not
turn away from the correct orientation.
– The recommended hub nut tightening
torque is 20 Nm (177 in.lbs.).
Fastening wheel / quick release:
•
Only use quick release devices with the
correct length.
• Position quick release opposite to the
brake (i-BRAKE version).
•
Turn release lever outwards until it is at
least at a right angle to the bike (position
“OPEN“)
(Fig. 3)
.
• Tighten adjusting nut on the end of the
skewer as much as possible by hand.
• Turn release lever to the “closed“ position
(the word “CLOSE” is visible from the
outside)
(Fig. 3)
.
• After closure, the release lever should be
parallel to the fork. If the release lever can
be closed relatively easily, the tension
force is inadequate.
In this case, open release lever again,
tighten adjusting nut slightly and close
release lever again.
• If considerable force is required to close
the lever, open the lever again, undo the
adjusting nut slightly and close lever
again.
Caution:
• Do not tighten the wheel by turning the
release lever clockwise (Fig. 4).
• Only use hand force.
• By incorrectly mounting the skewer or
the wheel in the dropout, or by wrongly
adjusting the closing force, the wheel
may come loose and fall off during the
ride. This may lead to severe rider in-
jury or death.
1
2
i-LIGHT Hub Dynamo
Model D324s D330s D330b D730s D730s-ib and D724s-ib
Version Standard i-BRAKE compatible
Output 2.4 Watt 3.0 Watt 3.0 Watt 3.0 Watt 3,0 W (D724s-ib 2.4 Watt)
Voltage 6 V6 V6 V6 V6 V
Wheel ø 400 – 700 mm / 16” – 28” 400 – 700 mm / 16” – 28”
Over Locknut Dim. 100 mm 100 mm
Length, L 140 mm 140 mm 108 mm 140 mm 140 mm 108 mm 140 mm 108 mm
Type Solid Solid Hollow Solid Solid Hohlachse Solid Hollow
Material Steel Steel
Ends Diameter
FG 9.5 M 9 x1 M 9 x1
Holes 36 36
Spoke Diameter 2 mm 2 mm
Hole Reference ø 80 mm 80 mm
Flange Distance 60 mm
49 mm
Offset 0 mm
6 mm
Bearing Cartridge Cartridge
Sealing Double Sealed Double Sealed
Tandem Compatib.
— — — ————
Weight
N/A N/A N/A N/A N/A N/A N/A
Finish Hub Shell
Aluminum Aluminum, black coated. Aluminum, anodized Aluminum, anodized
➔
➔ ➔ ➔
➔ ➔ ➔
➔ ➔ ➔
➔ ➔ ➔
➔ ➔ ➔
➔ ➔ ➔
➔ ➔ ➔
➔ ➔
➔ ➔ ➔
➔ ➔ ➔
➔ ➔ ➔
➔ ➔ ➔
AxleSpoke
i
-
L
I
G
H
T
D
Y
N
A
M
O
NEW
NEW
NEW
NEW
NEW
NEW
NEW
NEW
NEW
