Lever Blade Removal
Lever Blade Removal

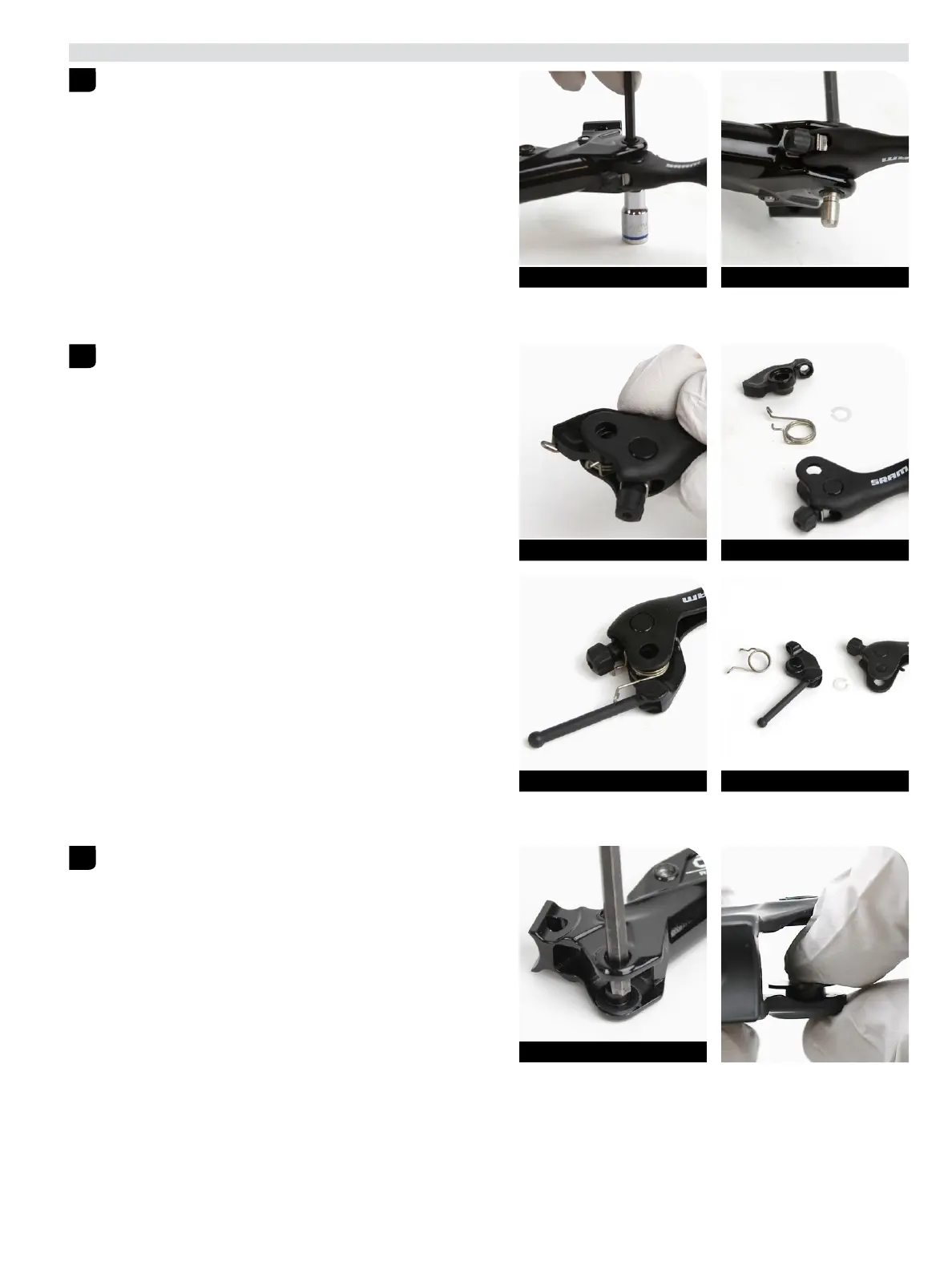

Place the lever pivot on top of a 6 mm socket. Tap a 4 mm hex wrench Place the lever pivot on top of a 6 mm socket. Tap a 4 mm hex wrench
with a hammer to remove the pivot pin. with a hammer to remove the pivot pin.
Remove the lever blade.Remove the lever blade.
The lever assembly will separate into four pieces when removed from The lever assembly will separate into four pieces when removed from
the lever body: SwingLink cam, lever bias spring, main pivot clip, and the lever body: SwingLink cam, lever bias spring, main pivot clip, and
blade assembly. blade assembly.
Remove the pivot bushings. Clean the bushings and install them into Remove the pivot bushings. Clean the bushings and install them into
the lever body.the lever body.
1
4 mm 6 mm socket 4 mm
2
G2 RS G2 RS
G2 R G2 R
3
6 mm
