SRAM G2 R User Manual

20
Lever Service
Lever Service
Parts and Tools Needed for Service
Parts
• Lever Internals Guide™ RS or Lever Internals Guide R/RE / DB5™ /
Code™ R
Safety and Protection Supplies
• Safety glasses
• Nitrile gloves
• Oil pan
• Clean, lint-free shop towels
Lubricants and Fluids
• Isopropyl alcohol
• SRAM High-Performance DOT 5.1 brake fluid. If SRAM fluid is not
available, only use DOT 5.1 or 4 brake fluid.
• SRAM or AVID DOT grease. If SRAM or AVID DOT grease is not
available only use a DOT compatible grease.
Common Tools
• Needle nose pliers
• Pick with a 90 degree bent tip
• Internal snap ring pliers
• T8, T10, & T25 TORX wrench
• T10 TORX bit socket
• 8 mm flare nut crowfoot wrench
• 2.5, 3, 4, & 6 mm hex wrenches
• 6 mm socket
• Torque wrench
• Hammer

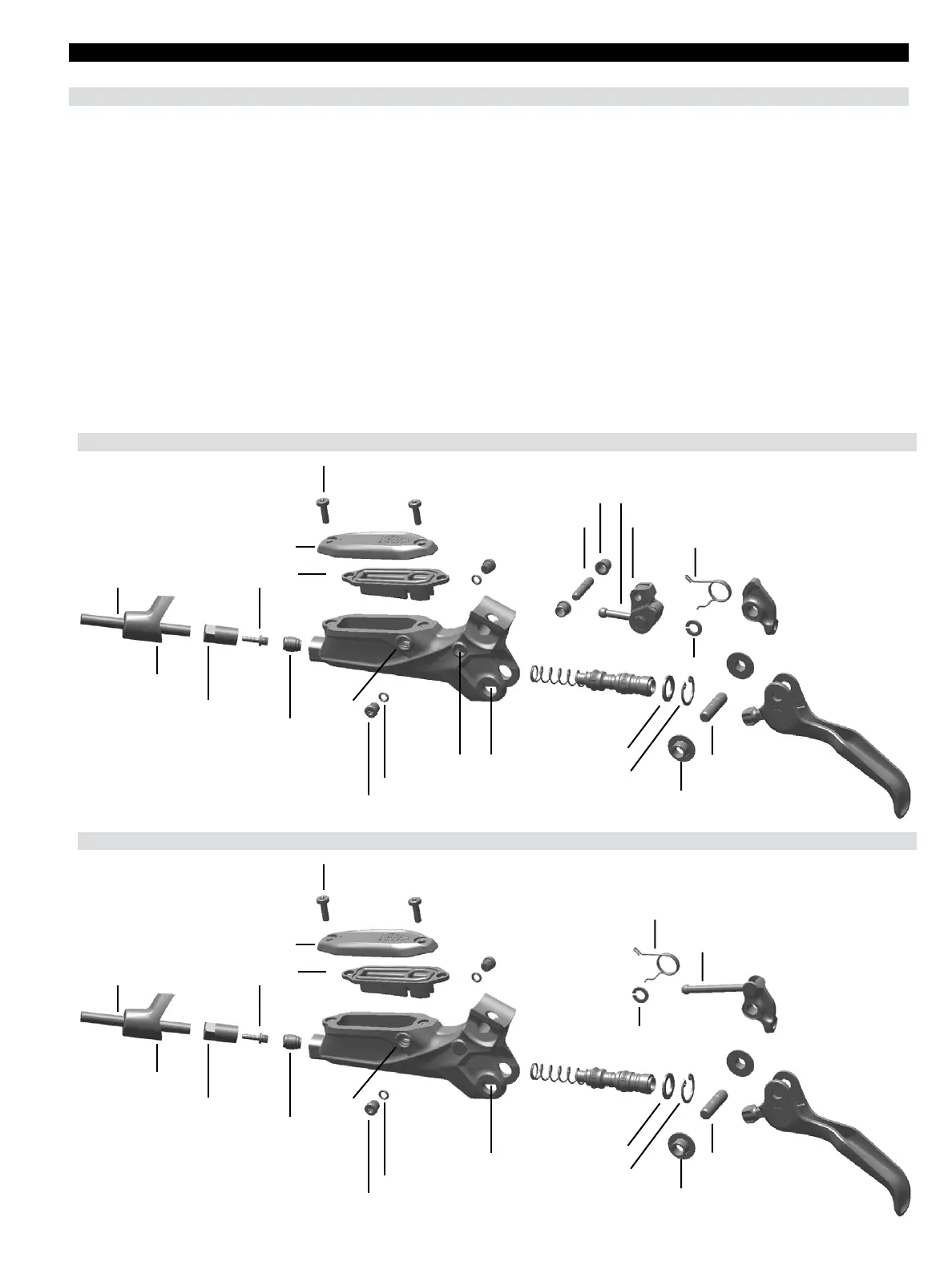

G2 RS Lever Exploded View
G2 R Lever Exploded View
Reservoir bolts (2)
Reservoir bolts (2)
Bladder
Bladder
Reservoir cap
Reservoir cap
Piston assembly
Piston assembly
Lever bias spring
Lever bias spring
Pushrod
Cam bushing
Cam bushing
Main pivot clip
Main pivot clip
SwingLink
SwingLink push rod
Lever pivot pin
Lever pivot pin
Snap ring
Snap ring
Washer
Washer
Lever pivot bushings (2)
Lever pivot bushings (2)
Bleed
port (2)
Bleed
port (2)
Lever
assembly
Lever
assembly
SwingLink
pivot hole
Lever
pivot hole
Lever
pivot hole
Lever body
Lever body
Compression fitting
Compression fitting
Compression nut
Compression nut
Hose boot
Hose boot
Hose barb
Hose barb
Hose
Hose
SwingLink bushings (2)
Bleed port screw (2)
Bleed port screw (2)
Bleed port screw o-ring (2)
Bleed port screw o-ring (2)
SwingLink pivot pin
