1. Locate the fuel filter in the engine compartment and place
a water container under it.
2. Disconnect the connector under the drain plug of the water
separator.
3. Turn the drain plug to the opening direction to drain the water.
4. Wait until a certain amount of fuel gets out from the port,
then turn the drain plug to the closing direction to tighten it.
5. Engage the connector under the drain plug and press the
priming pump until it becomes rigid.
6. Close the engine hood and start the engine.

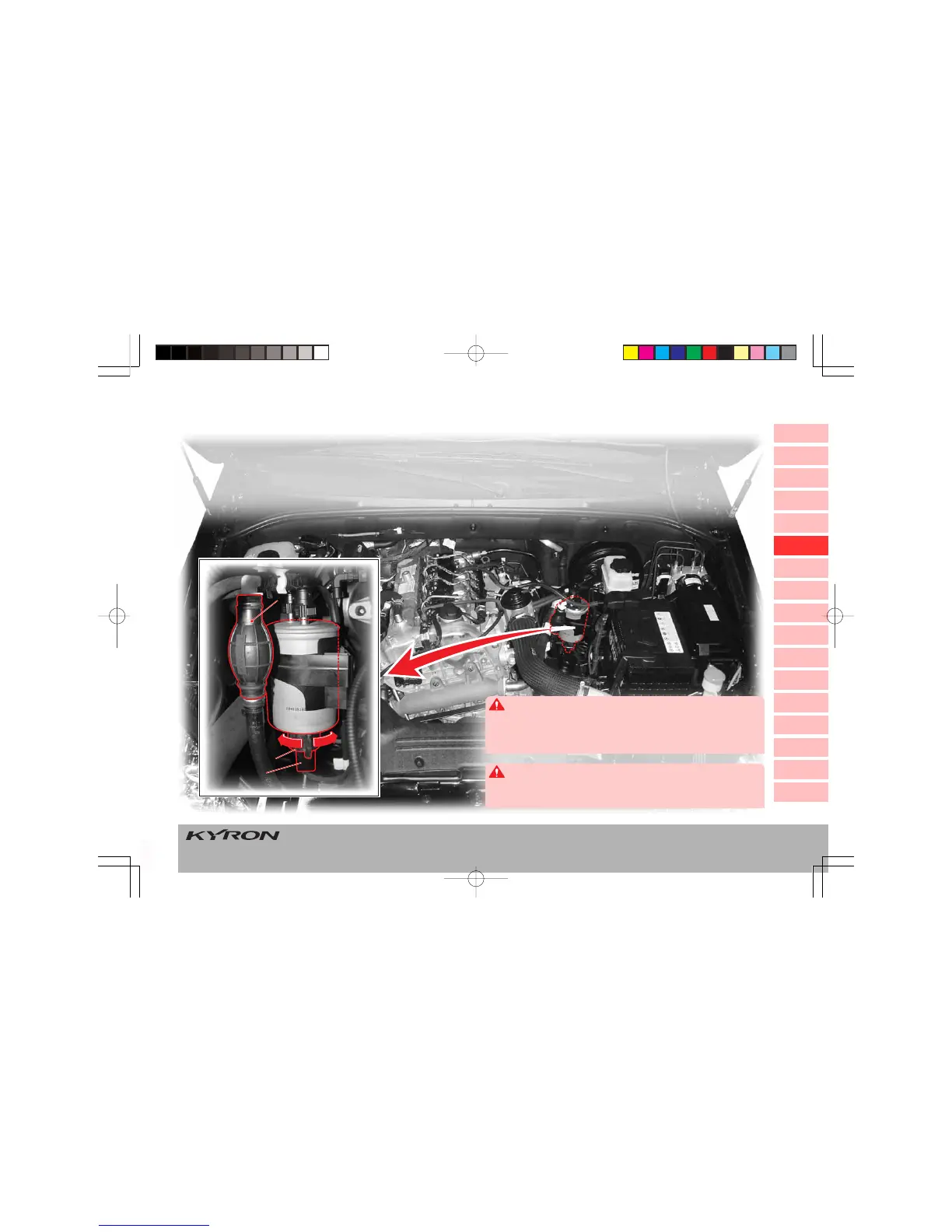

HOW TO DRAIN THE WATER FROM THE FUEL FILTER (Without Additional Water Separator)
Priming pump
Fuel filter
Drain plug
Connector
Opening
Closing
Be careful not to be injured by surrounding equipment during the
working procedures.
CAUTION
If the priming pump is not properly operated, air may get into the
fuel line. It may cause a starting problem or fuel system problem.
Make sure to perform the job in step 5.
