8–44 SERVICE AND MAINTENANCE
HEAD LAMP
1. Disconnect the negative (-) battery
cable.
2. Remove the radiator grille.
3. Remove the upper and lower bolts from
the head lamp.
4. Loosen the head lamp cover from the
wheel housing side and remove the bolt
from the head lamp.
5. Separate the head lamp from the vehicle
body.

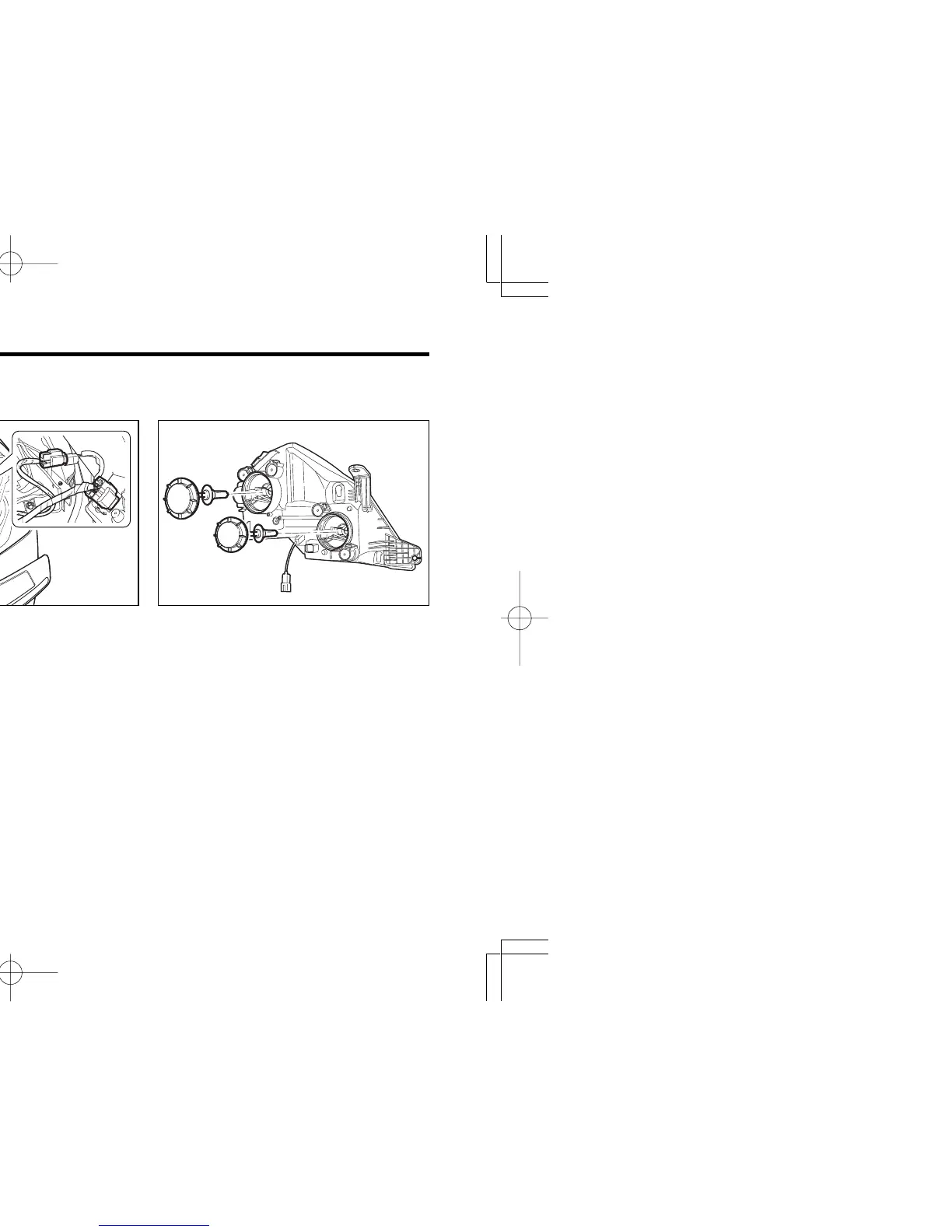

6. Disconnect the head lamp connector.
7. Rotate the dust cover counterclockwise
to remove.
8. Press the spring to remove.
9. Pull out the bulb.
10. Install new bulb with same rating.
11. Install in the reverse order of the
removal.
