8–46 SERVICE AND MAINTENANCE
SIDE REPEATER LAMP
1. Disconnect the negative (-) battery
cable.
2. Remove the lamp body by pushing for-
ward and pulling out its rear end.
3. Install new bulb with same rating.
4. Install in the reverse order of the
removal.

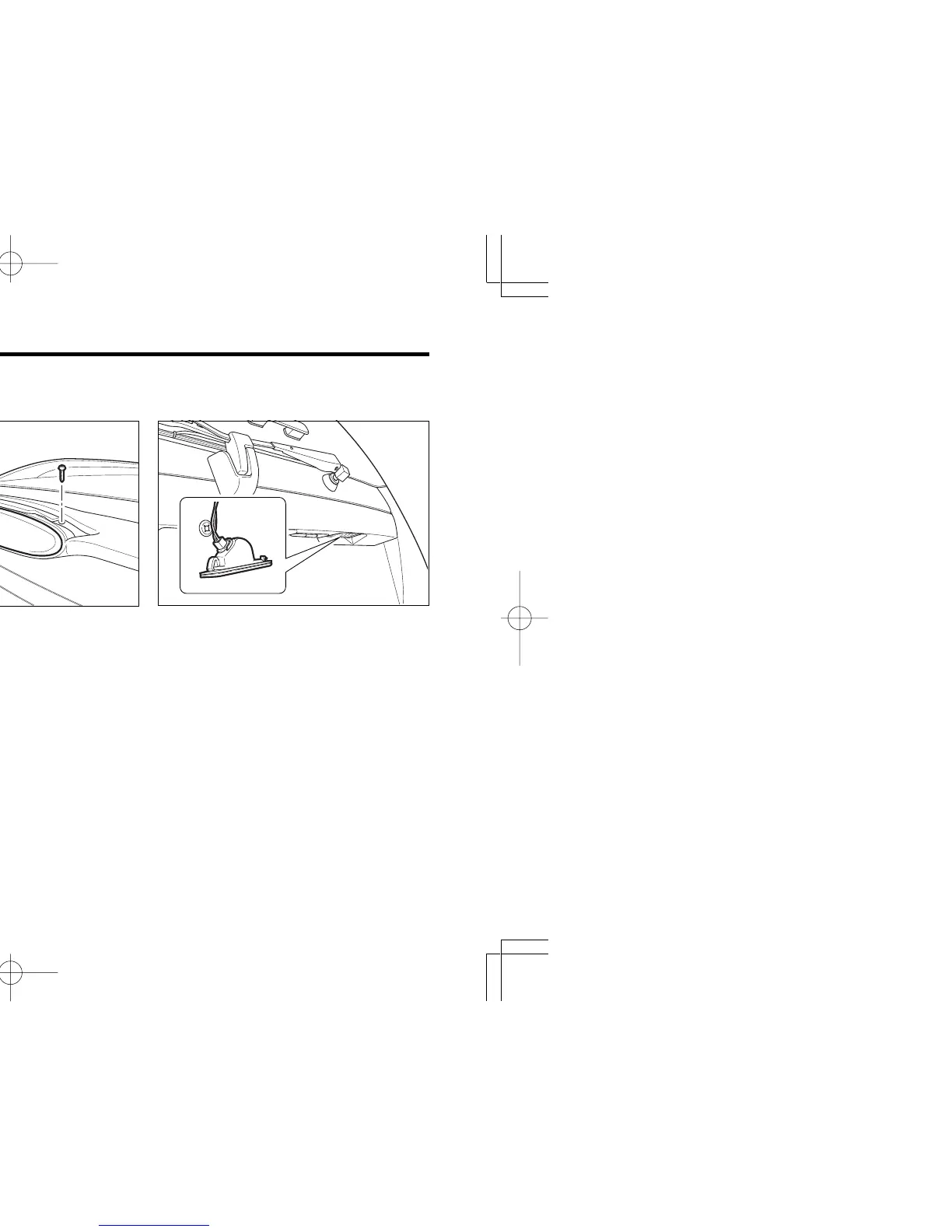

HIGH MOUNTED STOP LAMP
1. Disconnect the negative (-) battery
cable.
2. Remove two fixing screws from air
spoiler on tailgate.
3. Disconnect the connector from high
mounted stop lamp.
4. Remove the bulb by turning it
counterclockwise.
5. Install new bulb with same rating.
6. Install in the reverse order of the
removal.
LICENSE PLATE LAMP
1. Disconnect the negative (-) battery
cable.
2. Remove the licence plate lamp assembly.
3. Remove the bulb.
4. Install new bulb with same rating.
5. Install in the reverse order of the
removal.
