st model DG-1000 - Test Elevator Control; Control Surface Movements; CG (Center of Gravity) Position

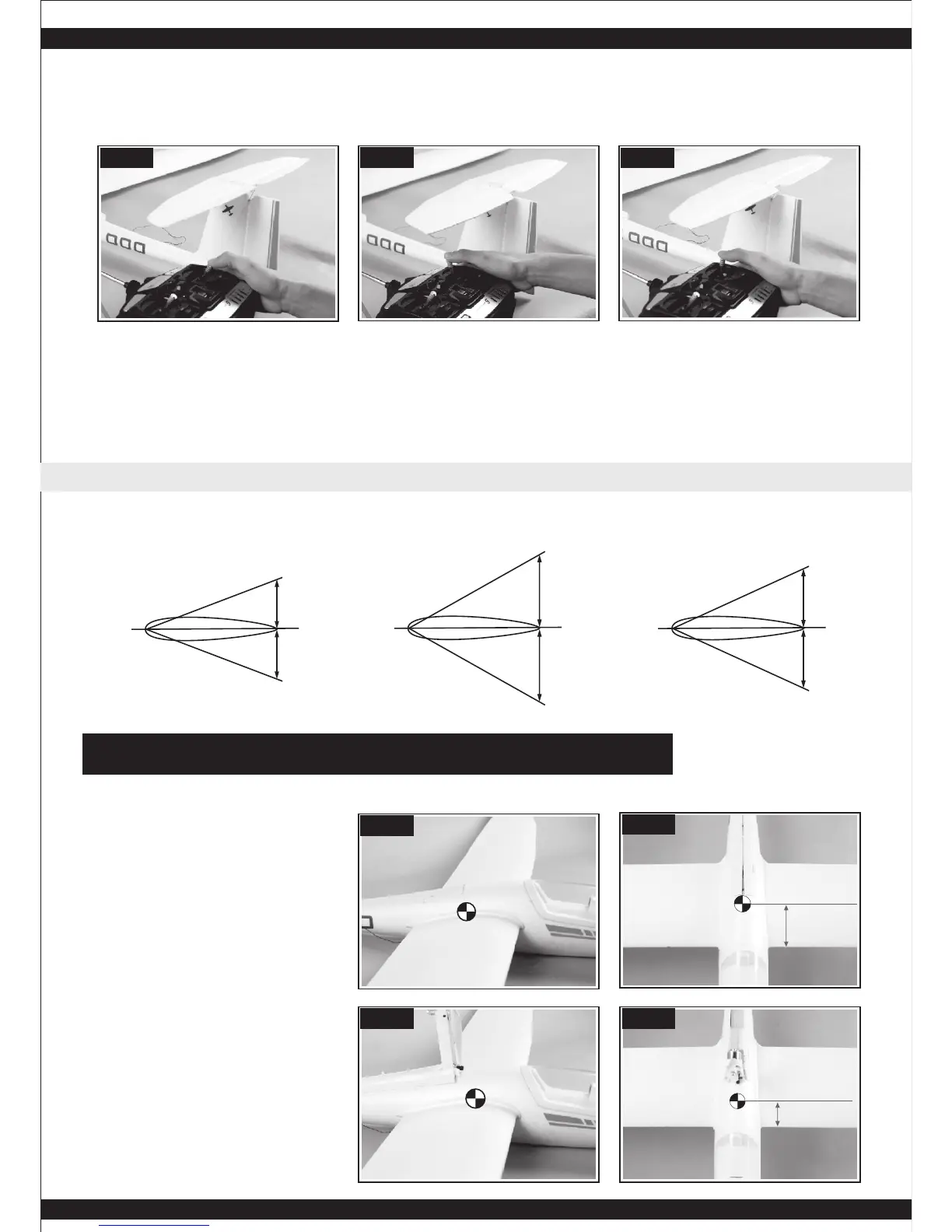

6、Test the elevator:
⑴、Move the elevator control stick backward, the elevator will be up(PIC.62).
⑵、Move the stick forward, the elevator will be down(PIC.63).
⑶、Move the stick to its neutral position, the elevator returns its neutral position(PIC.64).
-9-
NOTE: If the movement of elevator works in opposite position, please check the elevator
reverse switch on the transmitter and make necessary alignment.
WARMNING:
stick & trim is at the neutral. If not, then, untie each adjuster screw of the servo horns,
adjust the length of the pushrod, and then tighten the screws to avoid the pushrod
loose.
7、Movement of all control surfaces:
⑴、Aileron ⑵、Rudder ⑶、Elevator
Please check if the aileron, rudder, elevator can be neutral position while the
If loose of the pushrod, then lead the airplane to unstable, and result in crash.
1、The standard CG will be changed according to the RMS folding / unfolding situation
Recommended CG is
positioned at the 53mm
behind the leading edge of
wing when the RMS is
completely folded(PIC.65,
PIC.66).
Recommended CG
positioned at the 46mm
behind the leading edge
of wing when the RMS is
completely unfolded
(PIC.67,PIC.68).
CG(Center of Gravity)POSITION
10
o
10
o
20
o
20
o
15
o
15
o
PIC.62
PIC.63
PIC.64
PIC.65
PIC.67
PIC.66
53mm±2mm
PIC.68
46mm±2mm
