UM2324 Rev 4 29/43
UM2324 Connectors
42
7.2 ARDUINO
®
Uno V3 connector
The CN5, CN6, CN8, and CN9 ARDUINO
®
connectors in Figure 14 are female connectors
compatible with the ARDUINO
®
standard. Most shields designed for ARDUINO
®
fit the
STM32 Nucleo-64 board.
The ARDUINO
®
connectors on the STM32 Nucleo-64 board support the ARDUINO
®
Uno
V3.

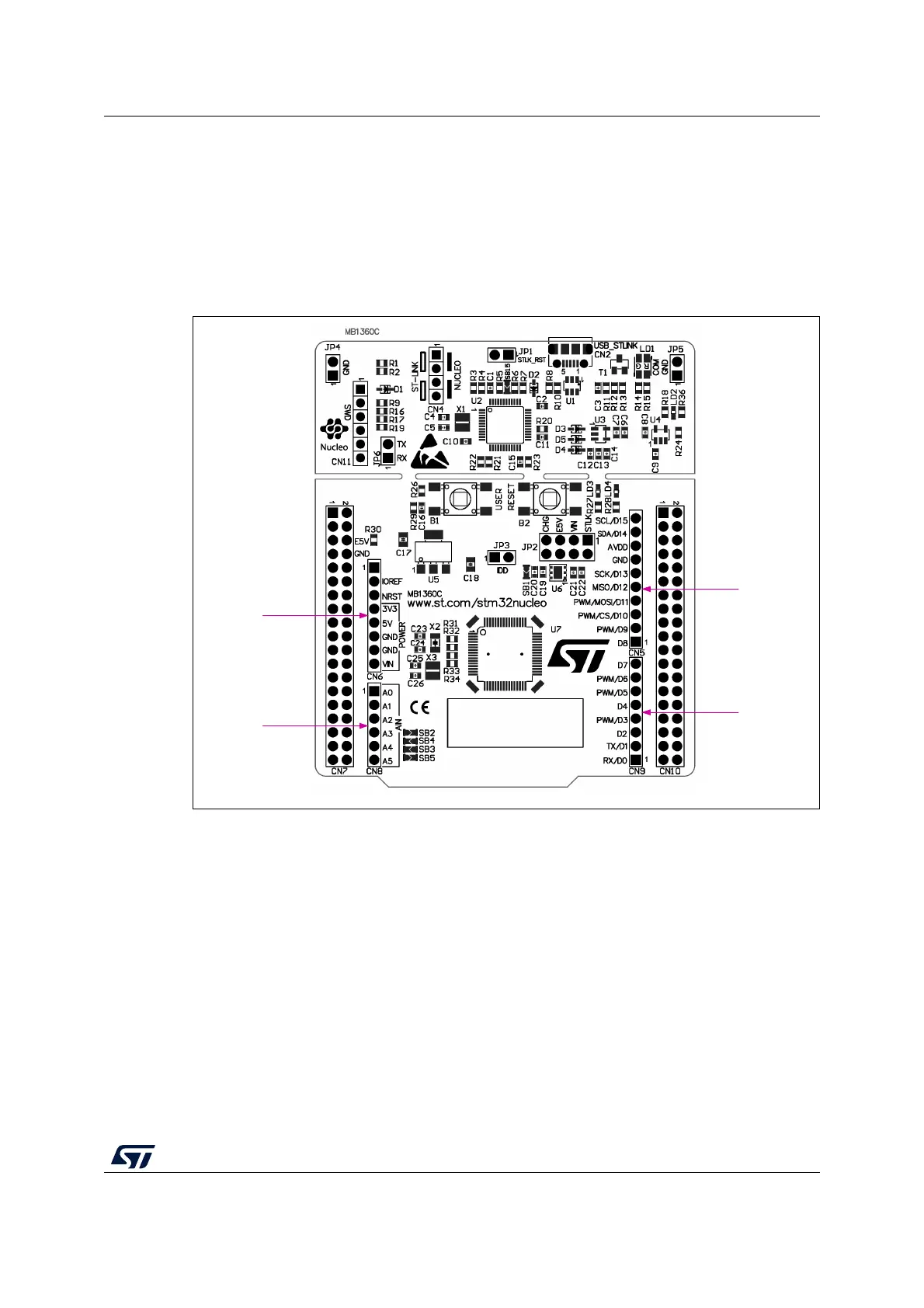

Figure 14. ARDUINO
®
connectors
MSv48507V2
CN6:
Arduino_PWR
CN8:
Arduino_A[0..5]
CN5:
Arduino_D[8..15]
CN9:
Arduino_D[0..7]
