ST NUCLEO-G070RB - Figure 17. STM32 Nucleo-64 boards ST morpho connector pinout

UM2324 Rev 4 33/43
UM2324 Connectors
42
The related pinout and the MCU assignment for the ST morpho connectors are listed in
Figure 17 and Figure Note:.

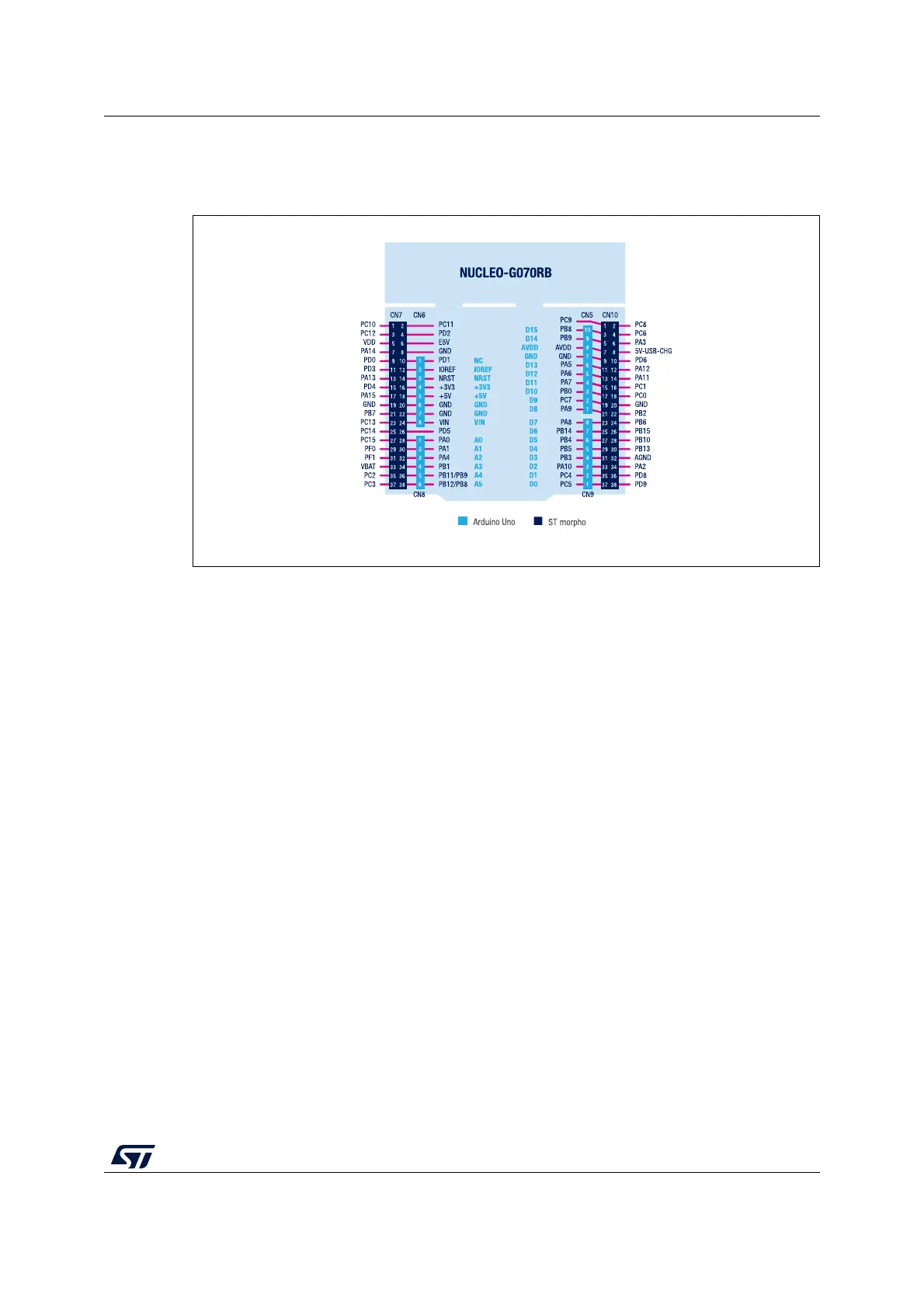

Figure 17. STM32 Nucleo-64 boards ST morpho connector pinout
Note: ARDUINO
®
Uno V3 D0 and D1 signals are connected by default on USART1 (MCU I/O PA2
and PA3).
