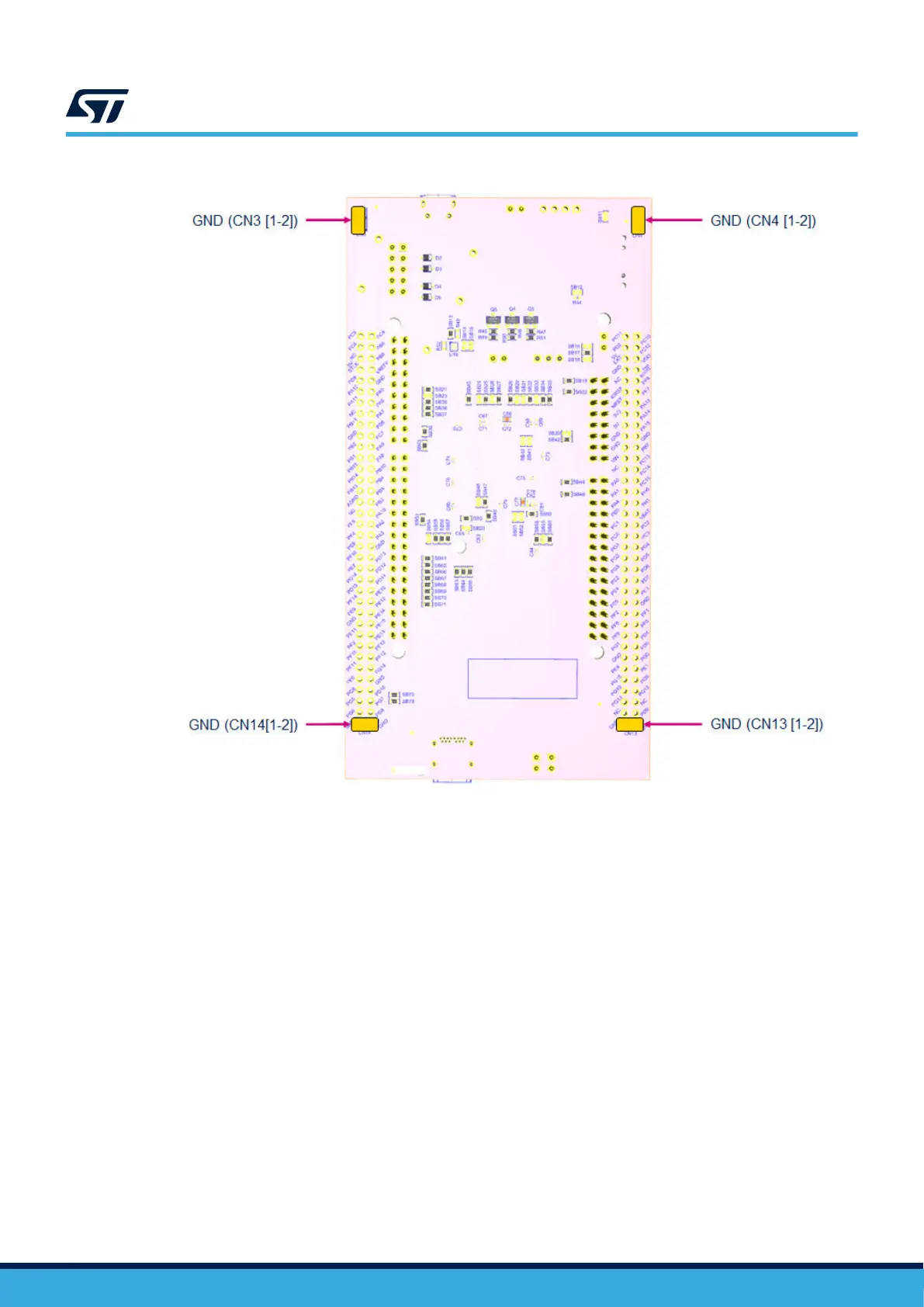

Figure 5. STM32U5 Nucleo-144 board bottom layout
UM2861
STM32U5 Nucleo-144 board layout
UM2861 - Rev 5
page 11/49
