ST STLINK-V3MODS - Figure 3. STLINK-V3 MINI Connections; Figure 4. STLINK-V3 MODS Connections

UM2502 Rev 2 11/28
UM2502 STLINK-V3MODS and STLINK-V3MINI functional description
27

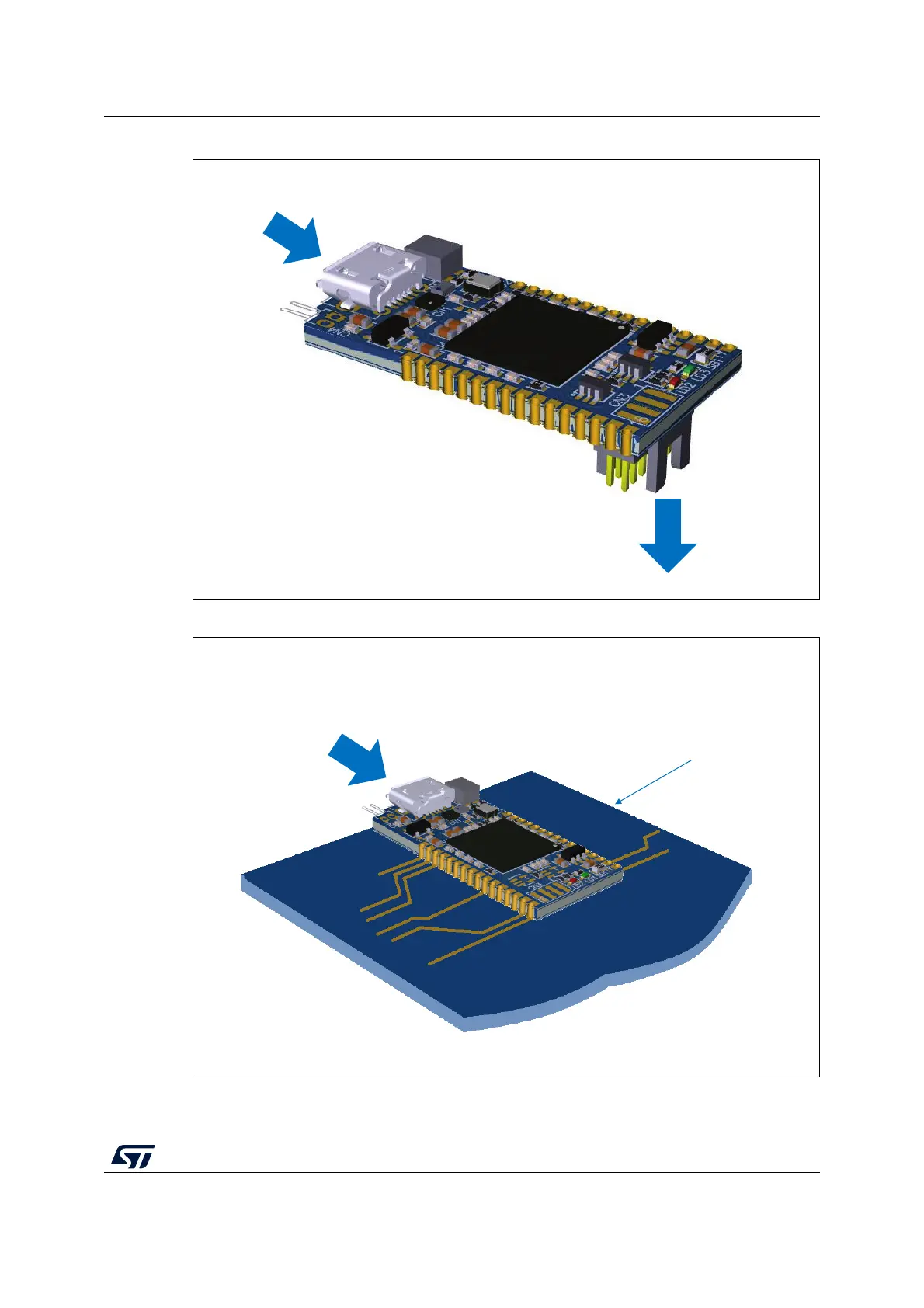

Figure 3. STLINK-V3MINI connections
Figure 4. STLINK-V3MODS connections
For the STLINK-V3MODS, the connections are done with the host board by tracks.
MSv61219V1
PC
connection
To
application
MSv61220V1
PC
connection
Host board
On-board layout
connections
