ST STLINK-V3MODS - Hardware Layout; Figure 5. Hardware Board STLINK-V3 MODS

STLINK-V3MODS and STLINK-V3MINI functional description UM2502
12/28 UM2502 Rev 2
5.4 Hardware layout
The STLINK-V3MODS and STLINK-V3MINI products are designed around the STM32F723
microcontroller (176-pin in UFBGA package).
Figure 5 shows the STLINK-V3MODS and
Figure 6 the STLINK-V3MINI. Figure 7 and Figure 8 show MB1467 top and bottom layouts
which is the common board reference for STLINK-V3MODS and STLINK-V3MINI.

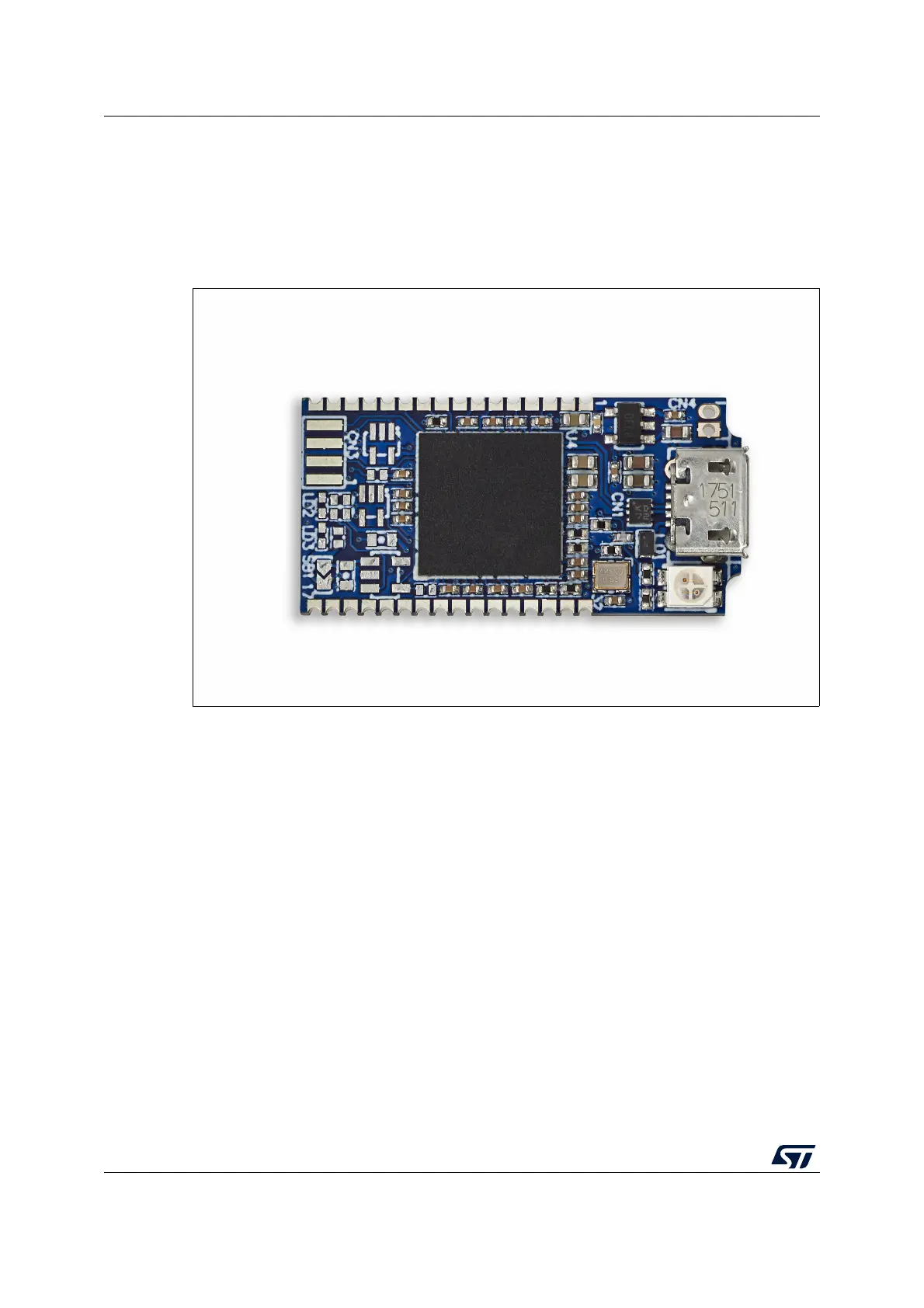

Figure 5. Hardware board STLINK-V3MODS
