DocID028406 Rev 1 29/31
UM1956 Mechanical dimensions
30
Appendix A Mechanical dimensions

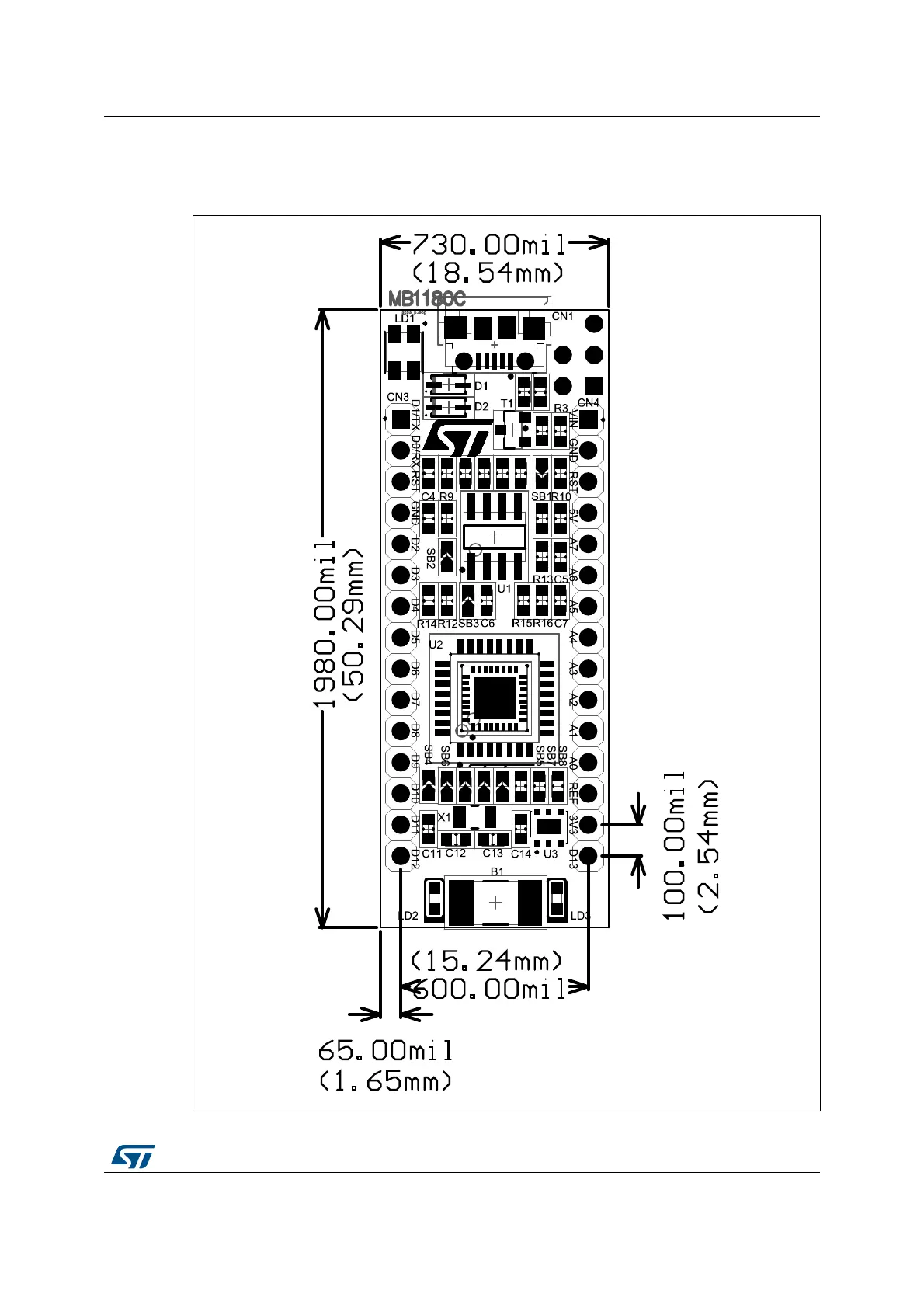

Figure 11. Nucleo-32 board mechanical dimensions in millimeter
