13 Expansion connectors
13.1 ST Zio connectors

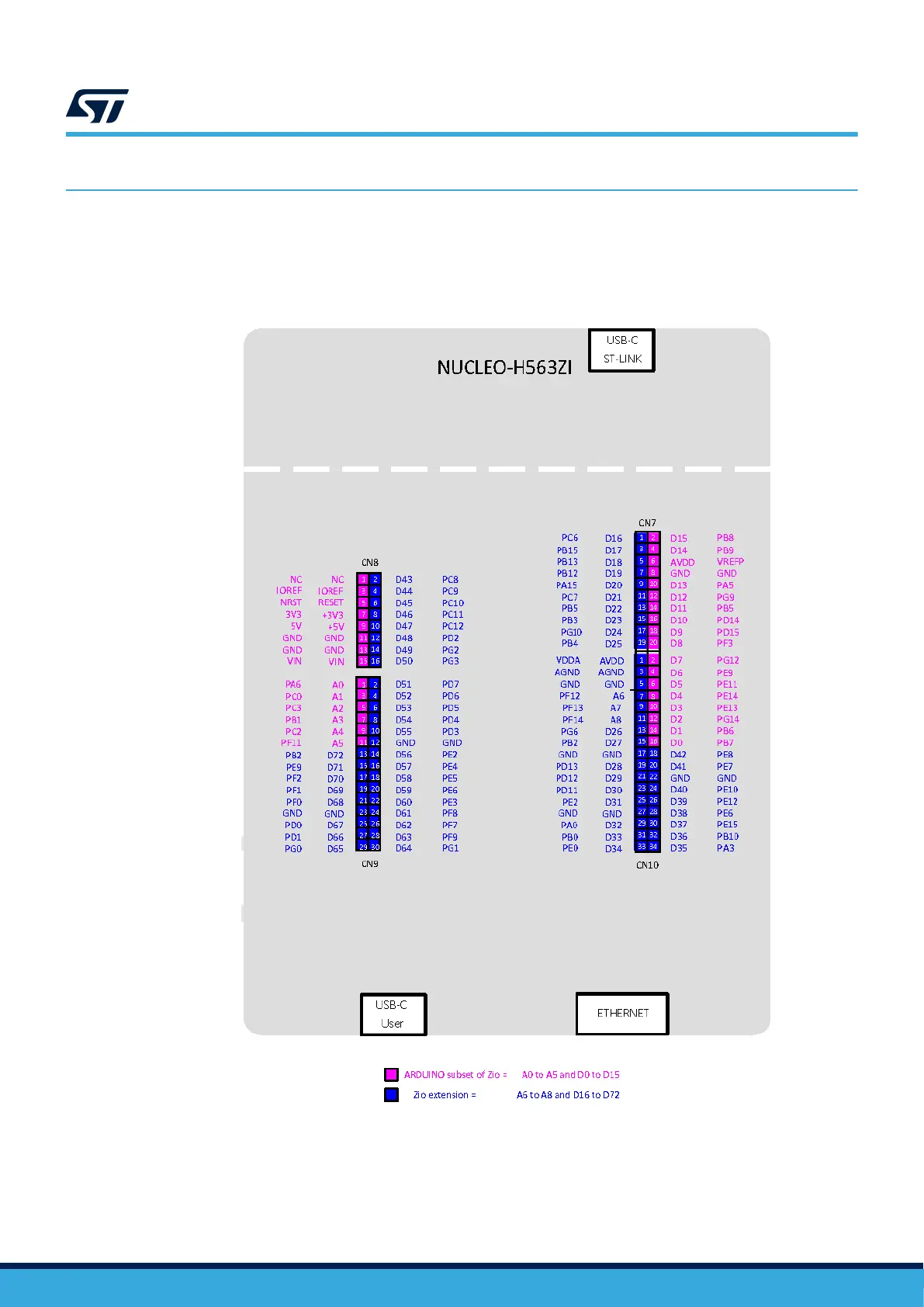

For all STM32H5 Nucleo-144 boards, Figure 17 shows the signals connected by default to the ST Zio connectors
(CN7, CN8, CN9, and CN10), including the support of ARDUINO
®
Uno V3.
Figure 17. STM32H5 Nucleo-144 board
CN7, CN8, CN9, and CN10 are female connectors on the top side and male connectors on the bottom side. They
include support for
ARDUINO
®
Uno V3. Most shields designed for ARDUINO
®
can fit the STM32H5 Nucleo-144
board.
UM3115
Expansion connectors
UM3115 - Rev 2
page 31/44
