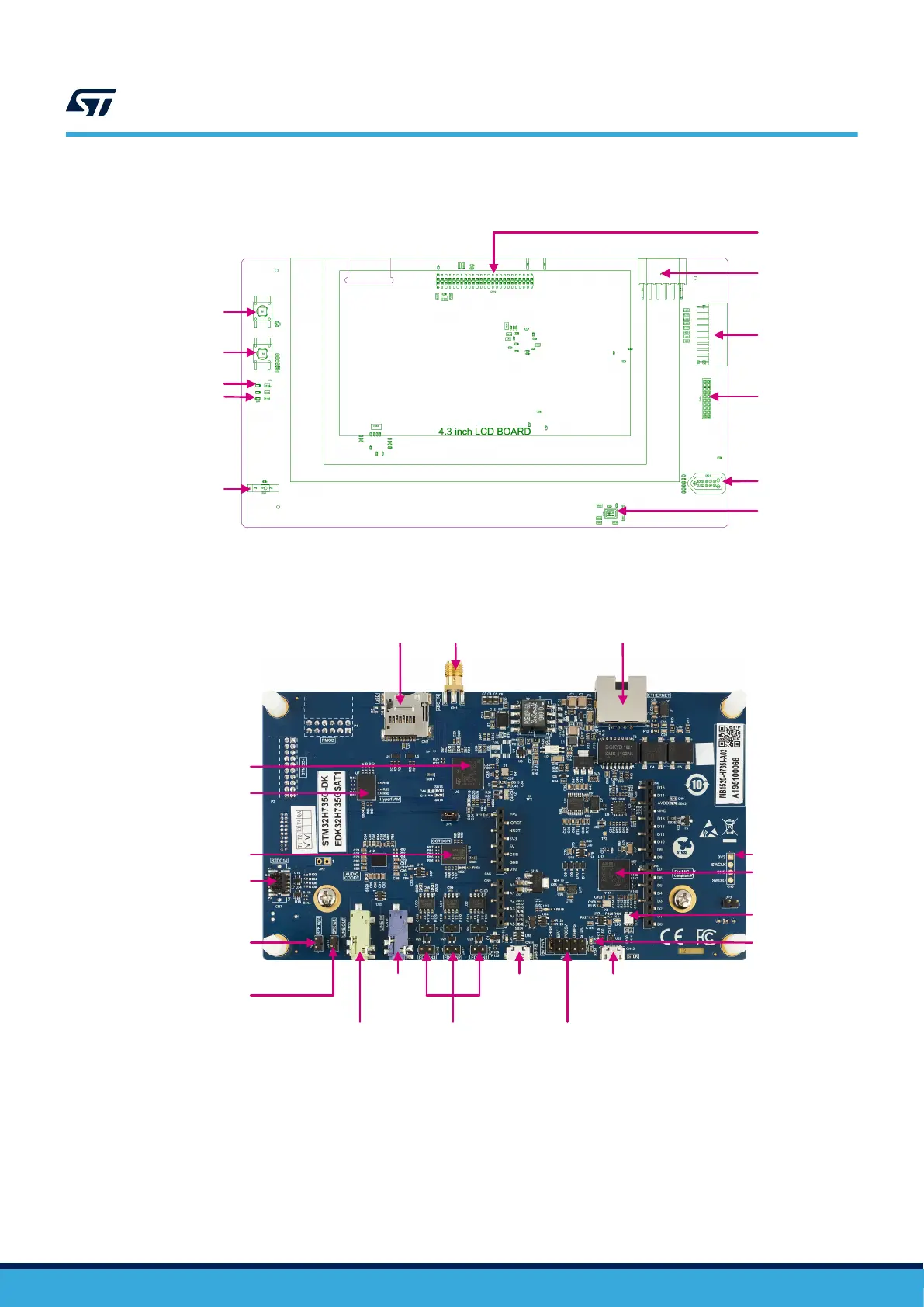

Figure 4.
STM32H735G-DK board layout (top view)
CN19:
LCD connector
P1:
Pmod
TM
connector
P2:
STMod+ connector
CN20:
Audio connector
CN21:
T
ag connector
B1:
Reset button
SW1:
Switch
B2:
User button
LD1/LD2:
User LEDs
U33:
Digital microphone
LD8:
ARDUINO
®
LED
Figure 5.
STM32H735G-DK board layout (bottom view)
CN3:
Ethernet
connector
CN6:
DFU connector
U13:
MCU STLINK-V3E
LD5:
5V Power LED
CN14:
USB
OTG FS
connector
U6:
STM32H735IGK6U
U7:
HyperRAM
TM
CN12:
Right speaker
connector
CN16/17/18:
CAN-FD
connectors
CN10:
Line-out
connector
CN1
1:
Line-in
connector
JP7:
Power
selector
CN15:
USB
ST-LINK
connector
LD6:
ST-LINK COM LED
CN1:
ADC_IN
connector
CN2:
microSD
TM
connector
U10:
Octo-SPI Flash
CN7:
MIPI-10 connector
CN13:
Left speaker
connector
UM2679
Hardware layout and configuration
UM2679
-
Rev 1
page 8/42
