Connectors UM2411
34/61 UM2411 Rev 2
6.17 Pmod connector P3
The standard 12-pin Pmod™ connector is available on the STM32H747I-DISCO Discovery
board to support low frequency, low I/O pin count peripheral modules. The Pmod™
interface, which has been implemented on the STM32H747I-DISCO Discovery board, is
compatible with the Pmod™ type 2A & 4A I/O signal assignment convention.

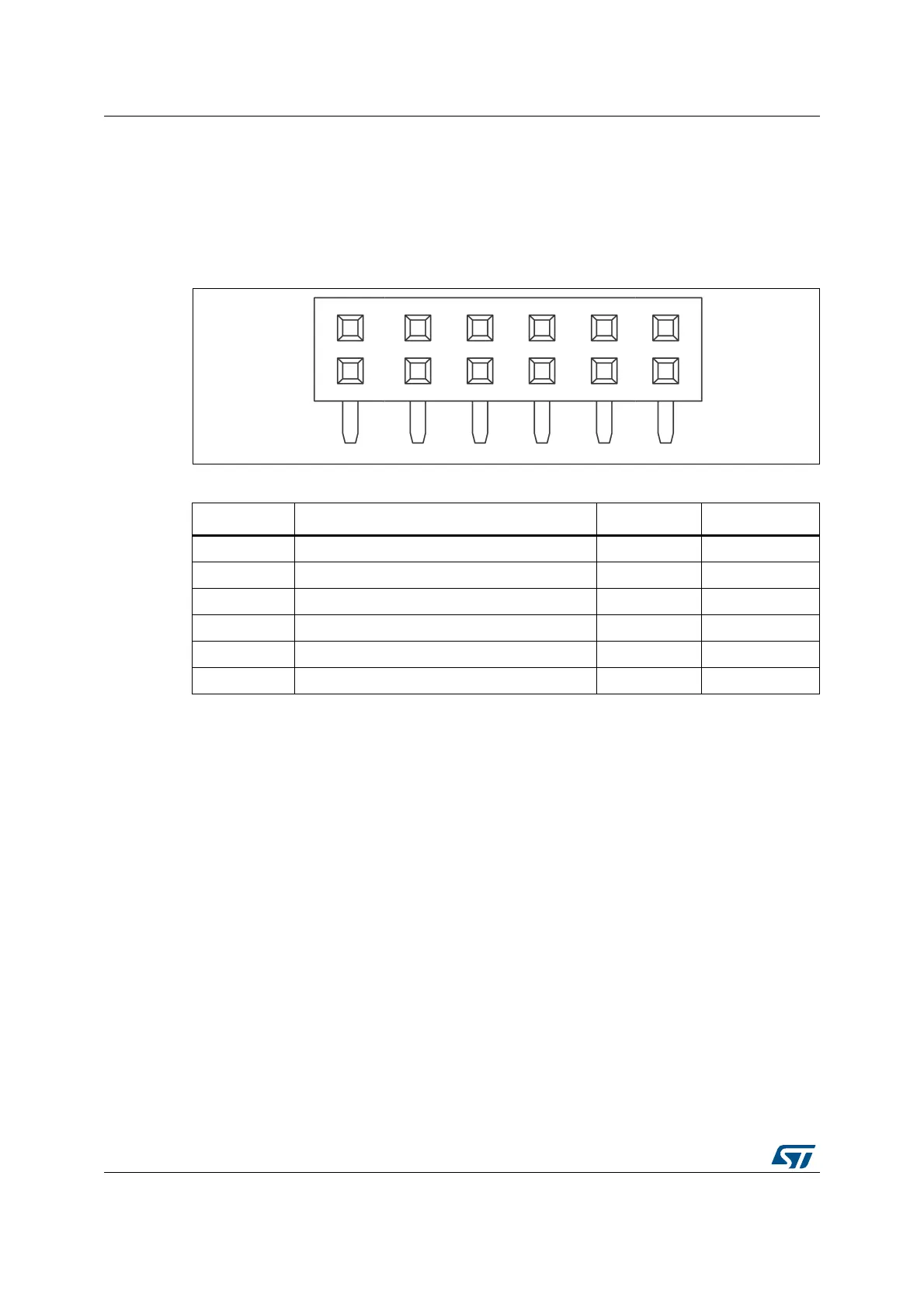

Figure 19. Pmod connector P3
Pmod™ also shares GPIOs with other functions of the board. For more detailed information,
refer to
Appendix B: STMod+ GPIO sharing and multiplexing.
Table 20. Pmod connector P3
Pin number Description Pin number Description
1 SPI2_NSS/USART2_CTS (PA11/PA0) 7 INT (PC6)
2 SPI2_MOSI/ USART2_TX (PC3/PD5) 8 RESET (PJ3)
3 SPI2_MISO/ USART2_RX (PC2/PD6) 9 NA
4 SPI2_SCK/ USART2_RTS (PA12/PD4) 10 NA
5GND 11GND
6+3V3 12+3V3
06Y9
)URQWYLHZ
