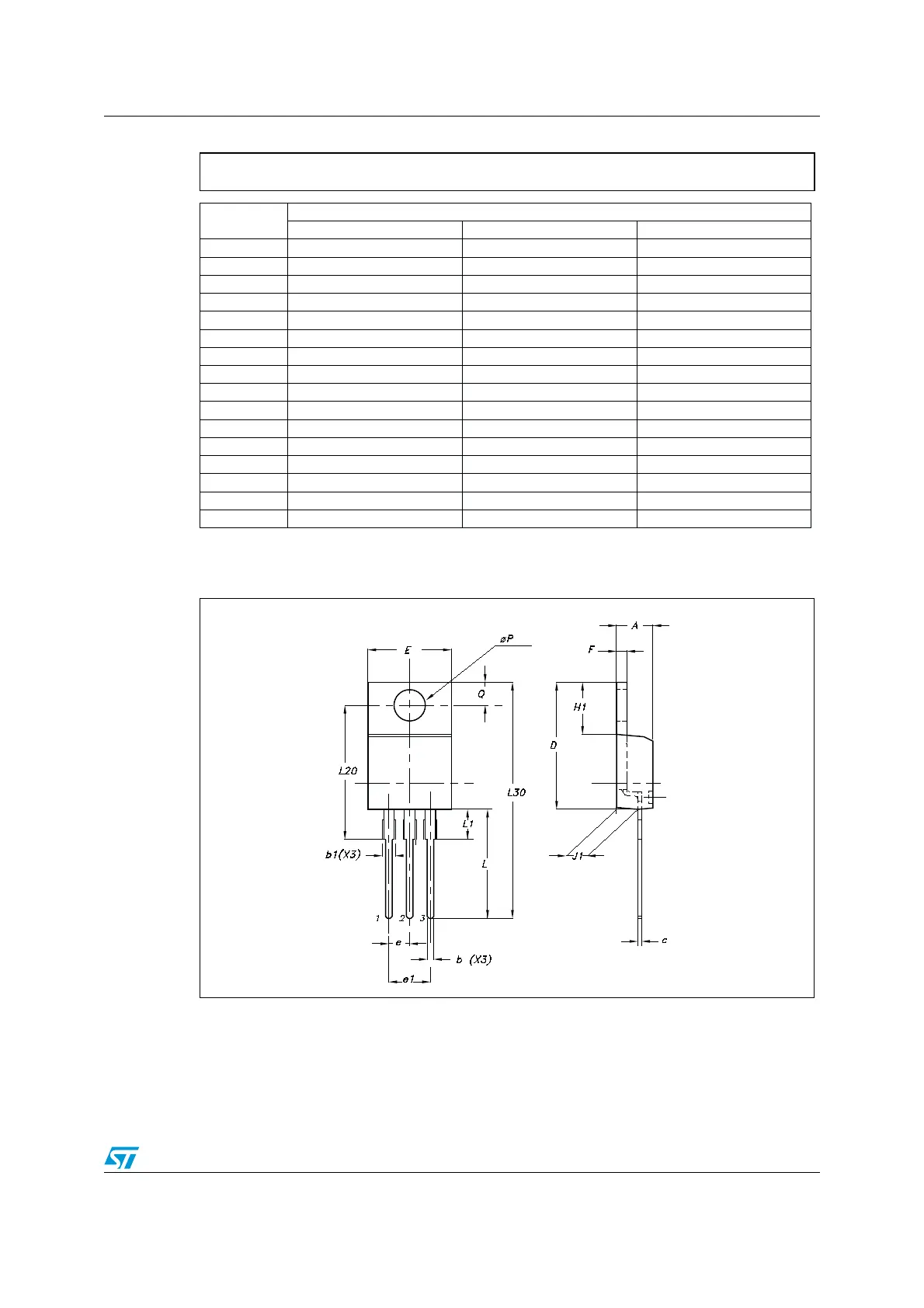

TIP120, TIP121, TIP122, TIP125, TIP126, TIP127 Package mechanical data
11/13
DIM.
mm.
MIN. TYP MAX.
A 4.47 4.67
b 0.70 0.91
b1 1.17 1.37
c0.31 0.53
D 14.60 15.70
E 9.96 10.36
e2.54
e1 4.98 5.08 5.18
F 1.17 1.37
H1 6.10 6.80
J1 2.52 2.82
L 12.70 13.80
L1 3.20 3.96
L20 15.21 16.77
øP 3.733.94
Q 2.59 2.89
TO-220 type E mechanical data
7655923_B
