ST TIP120 User Manual

Test circuits TIP120, TIP121, TIP122, TIP125, TIP126, TIP127
8/13
3 Test circuits

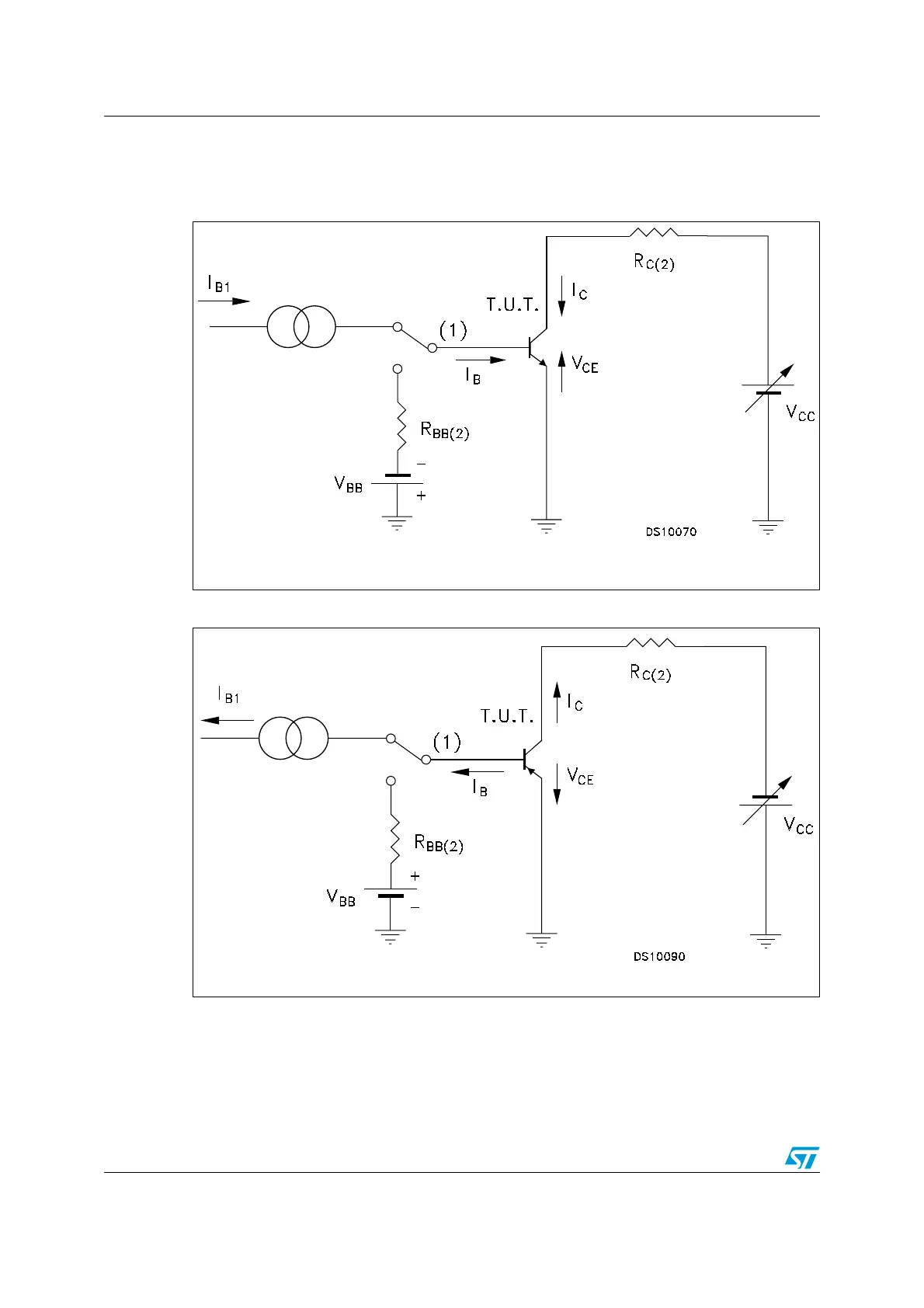

Figure 18. Resistive load switching for NPN type
Figure 19. Resistive load switching for PNP type
1) Fast electronic switch
2) Non-inductive resistor
1) Fast electronic switch
2) Non-inductive resistor

ST TIP120 Specifications

General

Brand	ST
Model	TIP120
Category	Computer Hardware
Language	English
