2.2 Synchronous gated mode with intermeasurement period
The following diagram shows how to use the bare driver to collect light count values in synchronous mode with an
intermeasurment period.

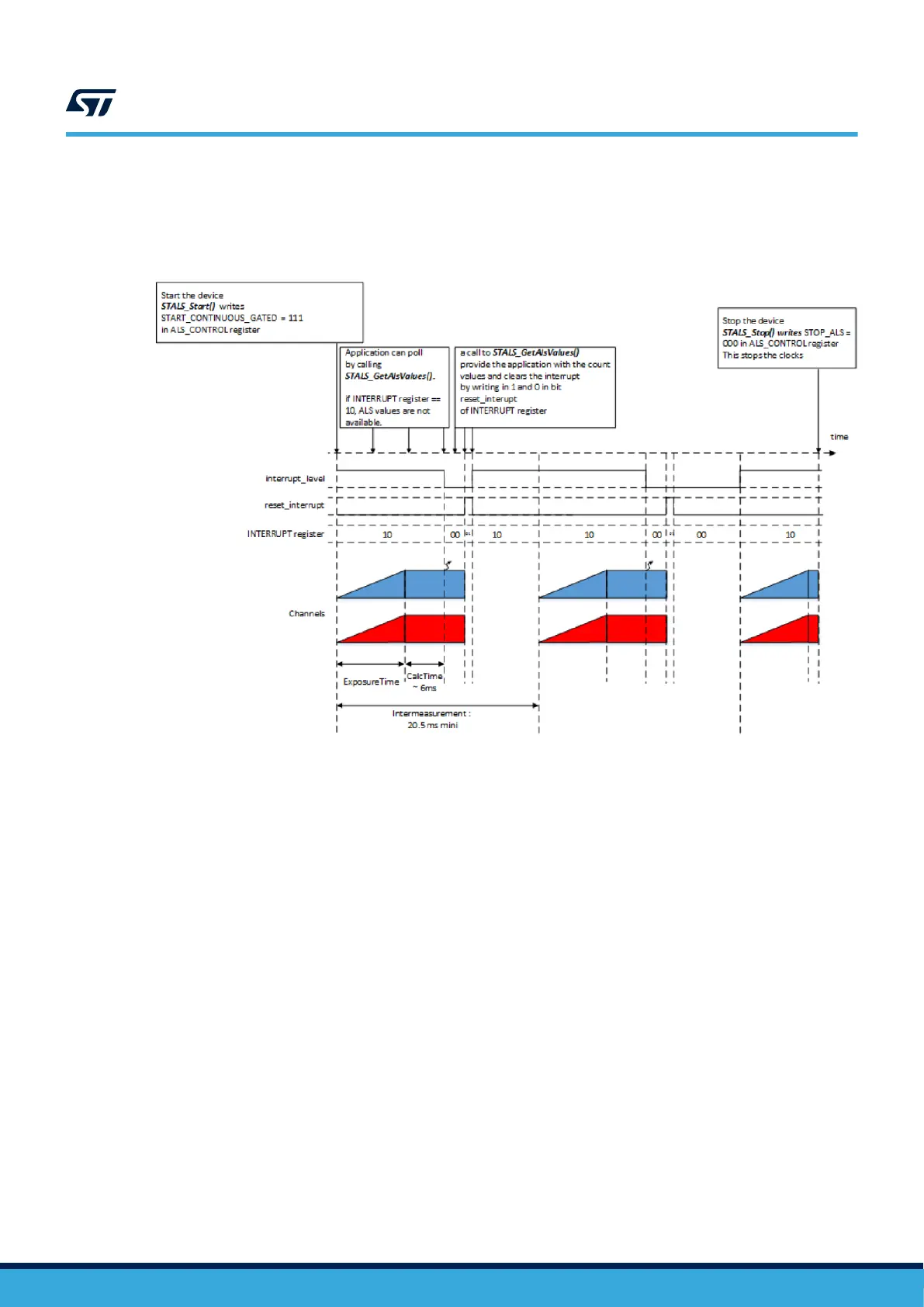

Figure 3. Bare driver signals with intermeasurement period
UM2878
Synchronous gated mode with intermeasurement period
UM2878 - Rev 1
page 4/27
