STA-RITE 17290-J1002 - Repair Parts List

1
2
3
4
5
6
7
8
9
10
13
13A
12
11
14
20
21
22
23
19
24
25
26
9A
15
16
17
18
19
782 0294

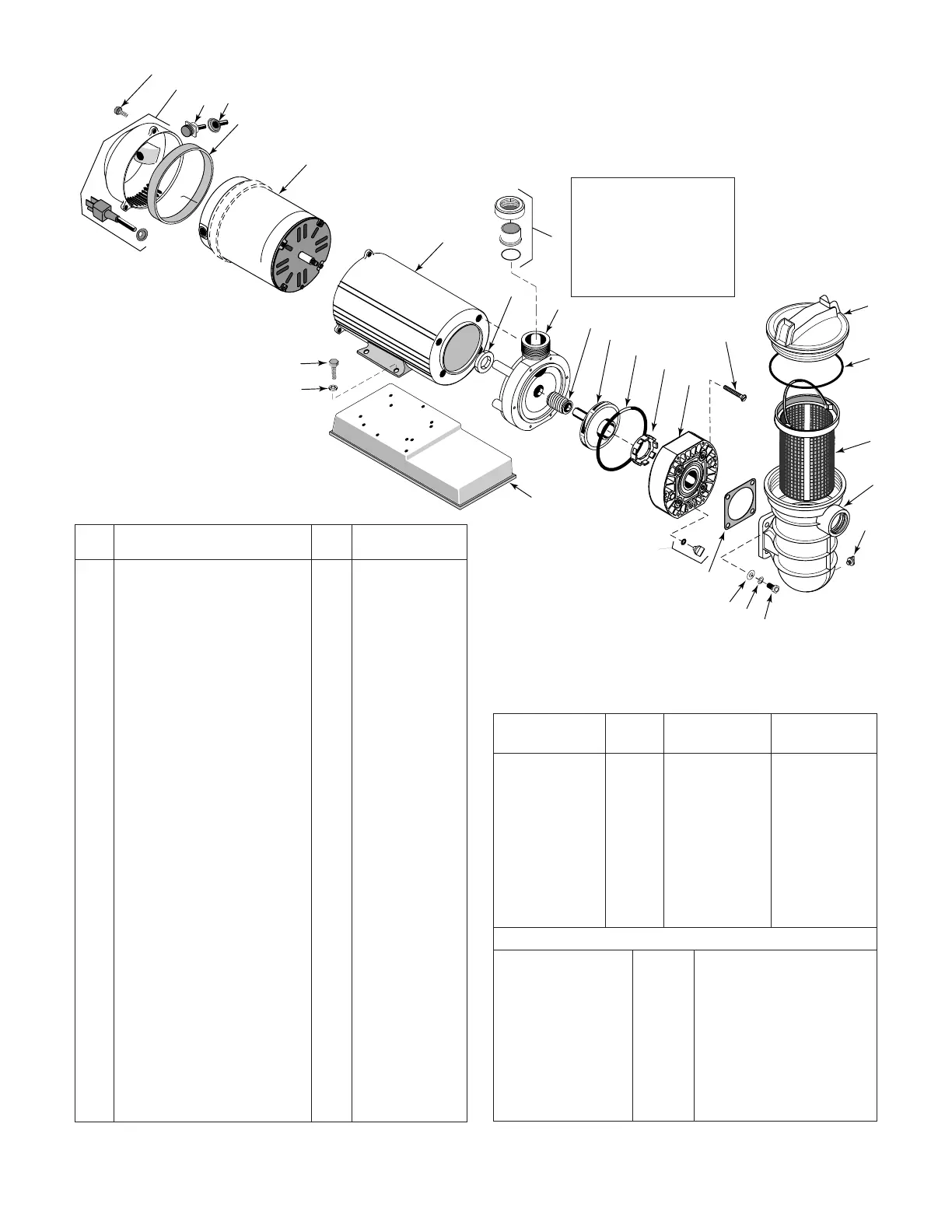

REPAIR PARTS LIST
POOL PUMPS
3/4 through 1-1/2 HP Models
Parts are common to all models listed except as noted;
Key Nos. 6, Motor; and 11, Impeller, are listed below.
Model Motor No. Impeller No.
No. HP (Key No. 6) (Key No. 11)
Single Speed
JWPA5DC-2A3U 3/4 AS901DL C105-228PWBS
JWPA5EC-2A3U 1 AS901EL C105-228PWS
17290-J150 1-1⁄2 17143-4335 C105-228PWDS
JWPS5FC-2A3U 1-1⁄2SPL AS901SFL C105-228PWS
Dual Speed
17290-J1002 1 62001-1136 C105-228PWS
JWPA5YEL-4A3 1 62001-1136 C105-228PWS
JWPS5YFL-4A3 1-1/2SPL 62001-1136 C105-228PWS
Model No. HP Cord & Cap Assembly
Single Speed
JWPA5DC-2A3U 3/4 17190-0026-S
JWPA5EC-2A3U 1 17190-0026-S
17290-J150 1-1/2 17190-0063-S
JWPS5FC-2A3U 1-1/2SPL 17190-0026-S
Dual Speed
17290-J1002 1 17190-0028-S
JWPA5YEL-4A3 1 17190-0028-S
JWPS5YFL-4A3 1-1/2SPL 17190-0028-S
Key Part
No. Description Qty. Number
1 End Cap Screw 3 37337-0085
2 Cap and Cord Ass’y 1 Chart at Right
3 Toggle Switch 1 16920-0511
4 Toggle Switch Boot 1 32800-0107
5 Baffle Ring 1 17290-0004
6 Motor 1 Chart at Right
7 Motor Cover 1 17190-0021
8 Flinger 1 17351-0009
9 Seal Plate 1 17301-0150
10 Shaft Seal 1 U9-358SS
11 Impeller 1 Chart at Right
12 O-Ring 1 35505-1438
13 Front Plate 1 C101-272P
13A Wear Ring 1 *
13B Plug 2 WC78-40T
14 Cap Screw, 1/4x20x1-3/4” 6 30787-0005
15 Trap Lid 1 C3-139P1
16 Trap Lid Gasket 1 U9-229
17 Trap Basket 1 C108-33P
18 Trap Body 1 C153-53P
19 Drain Plug w/O-Ring 2 U178-920P
20 Cap Screw 4 U30-64SS
21 Lock Washer 4 U43-11SS
22 Plain Washer 4 U43-41SS
23 Trap Outlet Gasket 1 C20-123
24 Mounting Foot 1 17190-0023
25 Plain Washer 4 U43-117SS
26 Cap Screw 4 U30-52SS
• Nameplate 1 32155-4073
• Decal – GFCI Required 1 U27-558
• Tag – Do Not Use Pipe Dope 1 61002-0002
• Tag – Electrical, priming 1 61002-0004
* Not available separately.
12
Purchase optional
union packages:
WC198-105 – 1-1/2" NPT
C198-3 – 1-1/2" Slip
Each package includes
1 each: Collar, adapter,
and O-Ring.
