SPECIFICATIONS/DIMENSIONS
23.08
10.12
8.00
4.00
4.25
17.08
7.00
10.69
11.50
1-1/2" NPT
Suction
Ø6.81
8.36
(586)
(257)
(102)
(203)
(434)
(178)
(272)
(292)
(Ø173)
(212)
(108)
1-1/2" NPT
Discharge Port
Union Connection
13.09
(333)
7.47
(190)
8.31
(211)
15.31
(389)
4.50
(114)
6.09
(155)
781 0294

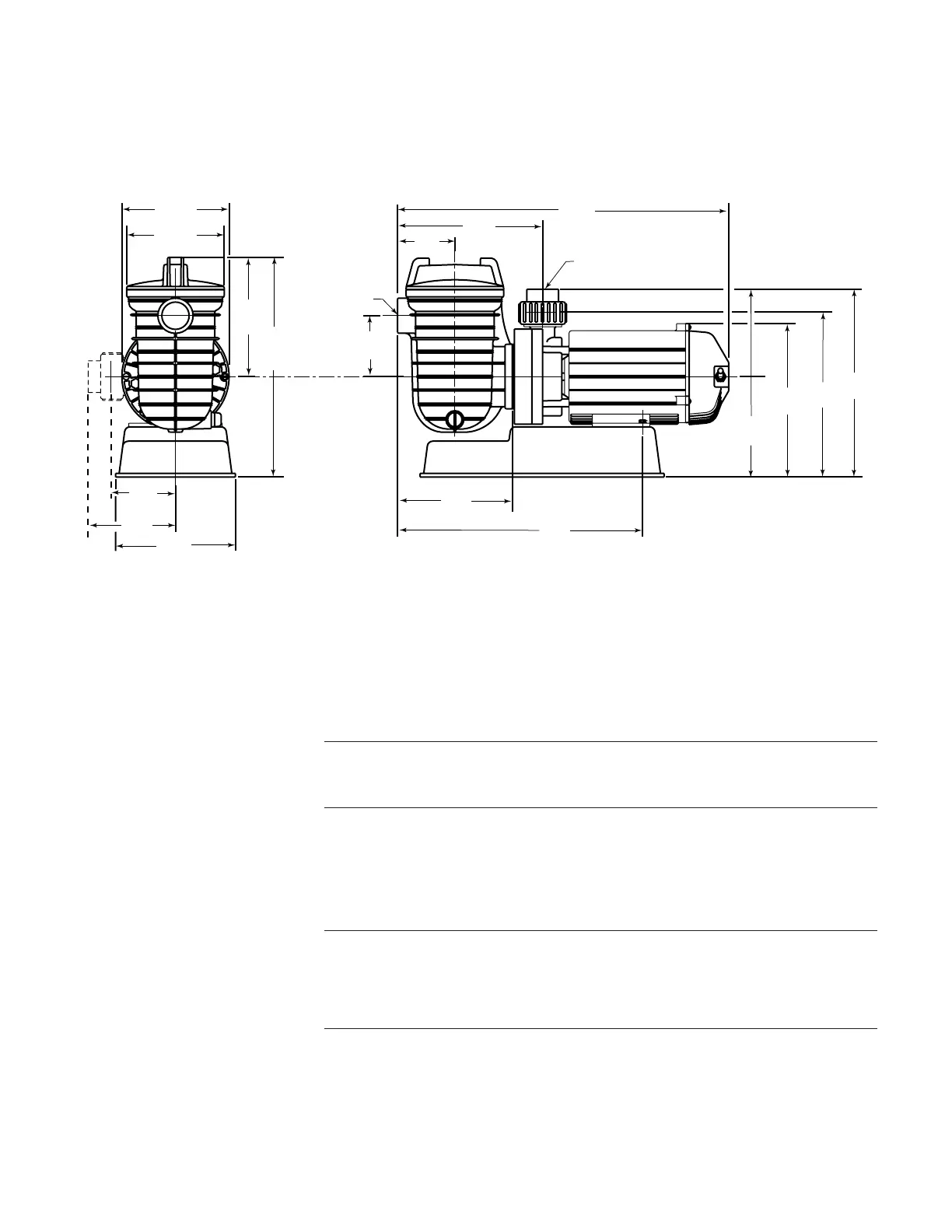

Figure 1: Dimensions
Table I – Recommended Circuit Breaker Size for 115V 60 Hz Motors
Branch
Model Motor Voltage/ Full Load Circuit Breaker
No. H.P. Hz/Phase Amps Rating(Amps)
Single Speed:
JWPA5DC-2A3U 3/4 115/60/1 9.4 15
JWPA5EC-2A3U 1 115/60/1 11.9 15
17290-J150 1-1/2 115/60/1 13.5 20
JWPS5FC-2A3U 1-1/2SPL 115/60/1 11.9 15
Dual Speed:
17290-J1002 1 115/60/1 11.0/2.9 15
JWPA5YEL-4A3 1 115/60/1 11.0/2.9 15
JWPS5YFL-4A3 1-1/2SPL 115/60/1 11.0/2.9 15
NOTICE: Values given in table above are for pump motor only. Add the amp
draw for any additional accessories installed on pump motor circuit (heater,
blower, etc.) to the listed amp ratings when figuring circuit and circuit breaker
requirements.
