REPAIR PARTS LIST

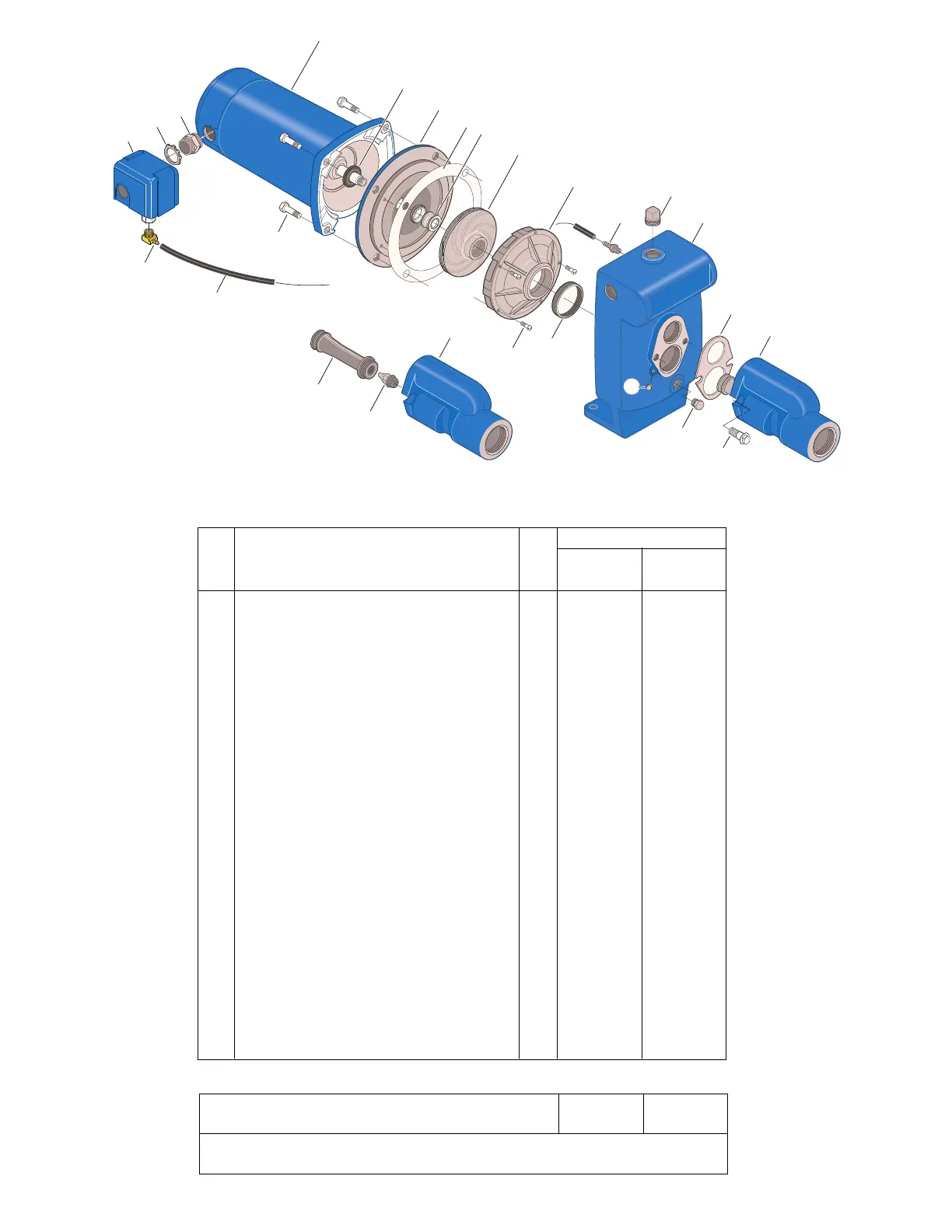

EXPLODED VIEW
“AN” SERIES - 1 AND 1-1/2 HP
Model and Horsepower
Key Part No. ANE-30L ANF-30L
No. Description Used 1 HP 1-1/2 HP
1 Motor - 1 HP, 60 Cycle - 115/230V 1 A100ELL –
1 Motor - 1-1/2 HP, 60 Cycle - 115/230V 1 – A100FLL
#§2 Water Slinger 1 C69-2 C69-2
3 Seal Plate 1 L3-10 L3-10
#§4 Gasket - Seal Plate 1 C20-21 C20-21
#§5 Shaft Seal 1 U109-6A U109-6A
#6 Impeller 1 J105-8PA J105-22PA
#7 Volute Diffuser Assembly 1 L1-23P L1-23P
7A Screw 3 U30-489SS U30-489SS
#§8 Diffuser Ring 1 L21-1 L21-1
9 Pump Body Assembly 1 L176-20B L176-20B
10 Pipe Plug - 1-1/4” NPT 1 U78-62GPT U78-62GPT
11 Gasket 1 N20-25 N20-25
12 Jet Assembly 1 Jet 30SD Jet 31SD
12A Body (1) N40-92 N40-92
12B Nozzle (1) J34P-44 J34P-44
12C Venturi (1) N32P-64 N32P-65
13 Capscrew - 3/8 - 16 x 7/8” Soc. Hd. 2 U30-511PS U30-511PS
14 Pipe Plug - 1/4” NPT Hex Hd. 1 U78-941ZPV U78-941ZPV
15 Pipe Plug - 1/8” NPT Sq. Hd. 3 U78-56CT U78-56CT
16 Barbed Fitting - 1/4” NPT 1 U111-211T U111-211T
17 Barbed Elbow - 1/4” NPT 1 U111-212T U111-212T
18 Switch Tube 3/8” O.D. x 14-1/2” Lg. 1 U37-672P U37-672P
19 Pressure Switch 1 U217-1216 U217-1217
20 Locknut - 1/2” NPT 1 U36-112ZP U36-112ZP
21 Connector 1 L43-5C L43-5C
22 Capscrew - 3/8” - 16 x 1-1/4” Lg. 4 U30-75ZP U30-75ZP
REPAIR PARTS LIST – “AN” SERIES – 1 AND1-1/2 HP
§ Seal and Gasket Kit PP1551 PP1551
# Overhaul Kit PP1563 PP1564
NOTE: § Included in Seal and Gasket Kit.
# Included in Overhaul Kit.
SERVICE KITS
Figure 6
