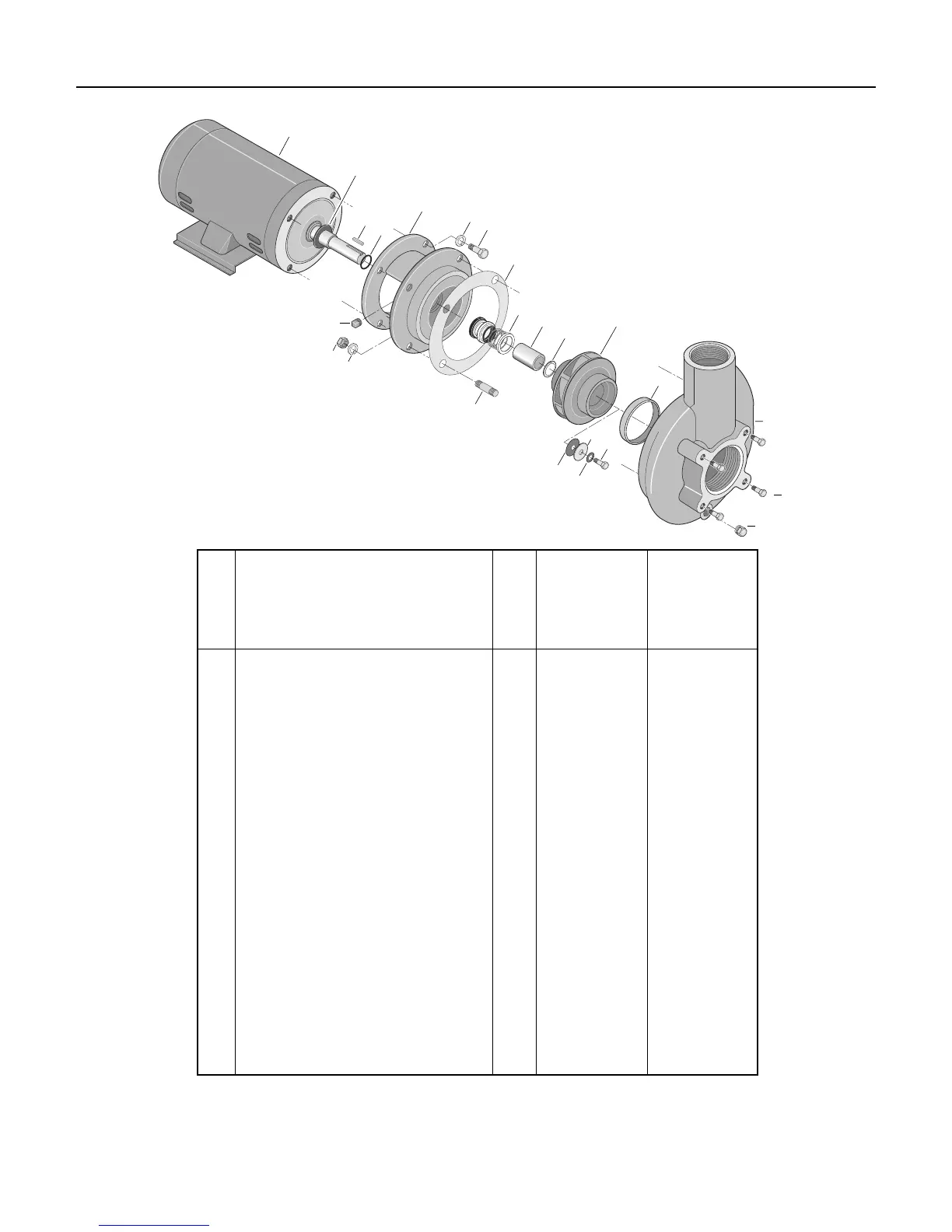

STA-RITE C Series - Motor Parts (5 HP Models)

1
2
5
3
4
6
7
8
9
10
12
11
17
18
13
14
16
21
22
23
6
15
1904 0795 CC P/S
19
20
Repair Parts 11
Model numbers with a “3” in them indicate a 3-Phase motor.
Model numbers with a “2” in them indicate a 200V motor.
(†) Model number CCH2J3-138S has no Water Slinger.
NOTE: C Series with different hydraulic numbers (CCMH-93) are older models that use different parts.
Consult factory for older models.
CCHJ-138
CCHJ-138S
CCHJ3-138S CHJ-138
CCHJ36-138 CHJ3-138
Key CCH2J3-138S CH2J3-138
No. Description Qty. 5 HP 5 HP
1 Motor 230V/60H/1 Ph. 1 C218-180 C218-180
1 Motor 230/460V/60H/3 Ph. 1 C218-182 C218-182
1 Motor 575V/60H/3 Ph. 1 C218-292C –
1 Motor 200V/60H/3 Ph. 1 C218-181 C218-181
2Water Slinger-3 Ph. (†) 1 C69-16 –
3 Key, Impeller 1 U65-42A U65-42A
4 O-Ring 1 U9-265 U9-265
5 Adapter 1 C2-81 C2-81D
6 Lockwasher, 3/8” 8 U43-12ZP U43-12ZP
7 Capscrew, 3/8-16x7/8” 4 U30-73ZP U30-73ZP
8 Gasket 1 C20-77 C20-77
9 Shaft Seal 1 U109-433SS U109-433SS
10 Shaft Sleeve 1 C23-58 C23-58
11 Gasket, Sleeve 1 C20-101 C20-101
12 Impeller (Silicon Brass) 1 C105-224DE C105-224DE
13 Gasket, Impeller 1 C20-100 C20-100
14 Washer, Impeller 1 C43-45SS C43-45SS
15 Washer, Stat-O-Seal 1 C43-46 C43-46
16 Screw, Impeller 3/8-16x3/4” 1 U30-72SS U30-72SS
17 Wear Ring Only 1 C23-40 C23-40
18 Volute Assembly (includes 18A & 20) 1 C201-174 C201-174D
18A Volute Assemby (Incl. 17 Only) 1 C101-167 C101-167D
19 Capscrew 5/16-18x3/4” 4 U30-62ZP U30-62ZP
20 Pipe Plug, 1/4” NPT, Hex Head 1 U78-941ZPV U78-941ZPV
21 Stud, 3/8-16x1-1/4” 4 U30-22SS U30-22SS
22 Nut, Hex 3/8x16 4 U36-38ZP U36-38SSW
23 Pipe Plug, 1/4” NPT 1 U78-57SSS U78-57SSS
