STA-RITE C Series - Repair Parts; Suction Trap Parts

STA-RITE C Series
12 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

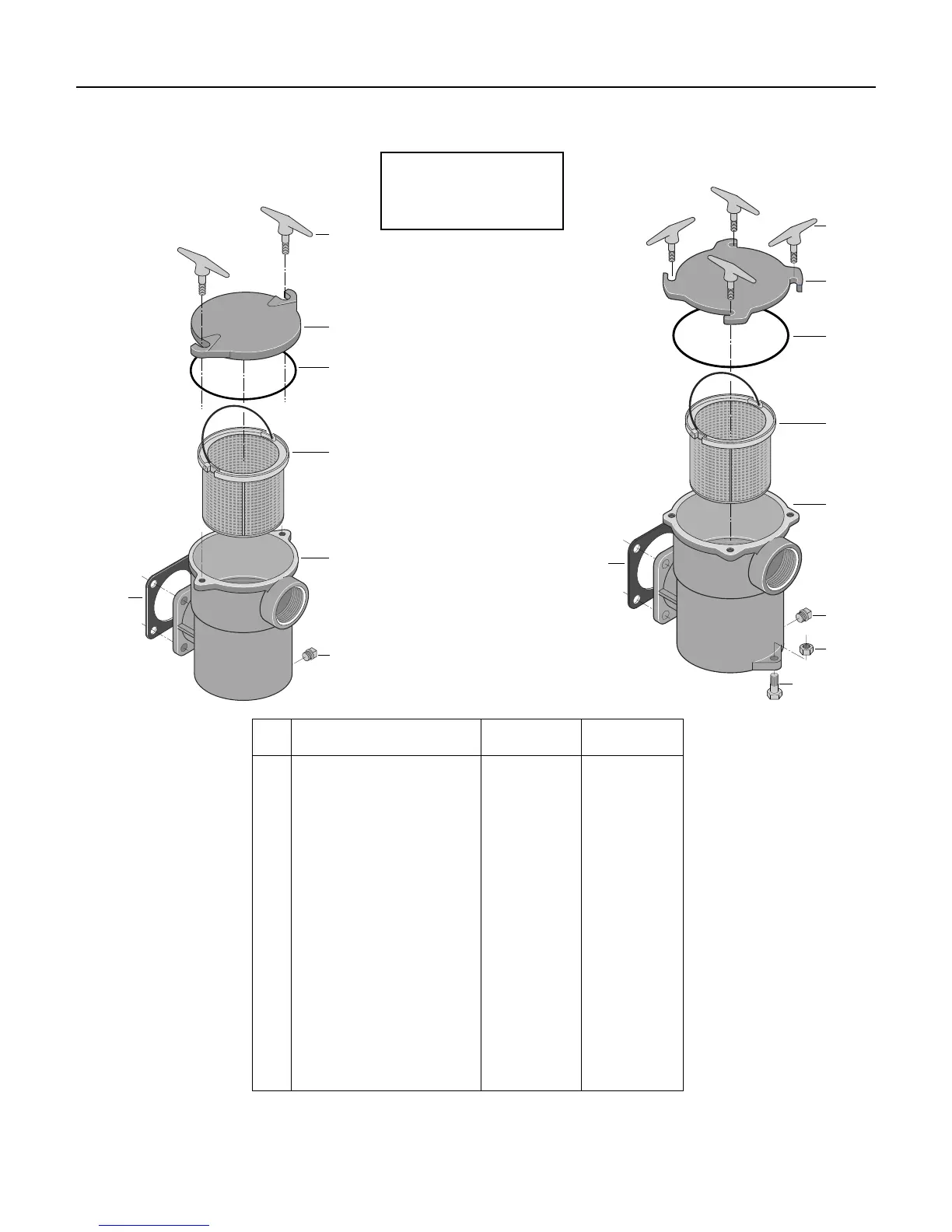

Repair Parts 9
1839 0695
5
4
3
2
1
6
7
1128 0695
7
3
4
5
2
1
6
8
9
Key Part
No. Description Cast Iron Bronze
1* Lock Handle C154-18D C154-18D
2 Cover - 6” C30-30 C3-78DZZ
2 Cover - 8” C3-105 C3-105D
2 Cover - 11” C3-76
3 O-Ring - 6” U9-46 U9-46
3 O-Ring - 8” U9-171 U9-171
3 O-Ring - 11” U9-105
4 Strainer Basket - 6” C108-11P C108-11P
4 Strainer Basket - 8” C108-34SS C108-34SS
4 Strainer Basket - 11” C108-25SS
5 Suction Trap Body - 6” C53-5B C53-5D
5 Suction Trap Body - 8” C53-21 C53-21D
5 Suction Trap Body - 11” C53-8
6** Pipe Plug 1/4” U78-57DT U78-57DT
7 Gasket, Flange C20-19 C20-19
8 Capscrew, 3/8-16x1-3/4” U30-77C
9 Nut, Hex 3/8-16 U36-38C
Capscrew, 5/16-18x7/8” U30-61C(4) U30-61C(4)
Suction Trap Complete - 6” Pkg. #51 Pkg. #56
Suction Trap Complete - 8” Pkg. #98 Pkg. #99
Suction Trap Complete - 11” Pkg. #74
Quantity 1 unless otherwise noted ( ).
Not illustrated.
* 6” has 2 each; 8” & 11” have 4 each.
** 6” & 8” have 1 each; 11” has 2 each.
6” Suction Trap
8” and 11” Suction Trap
NOTICE:
Traps are not
included with pumps.
