Key Part Part
No. Description Qty. No.
1 Motor 1 Chart at Right
2 Water Slinger 1 17351-0009
3 Seal Plate (includes Key Nos. 4 and 5) 1 C203-194P
4 “O” Ring 1 U9-228A
5 Shaft Seal 1 37400-0027S
6 Clamp Knob 1 C19-37A
7 Clamp 1 WC36-22
8 Impeller 1 Chart at Right
8A Impeller Screw Assembly 1 17301-0151
9 Diffuser* 1 C1-271P1
10 Diffuser “O” Ring 1 U9-374
11 #8 Lock Washer 5 U43-21SS
12 Screw** 5 U30-922SS
13 Tank Body 1 C176-59P
14 Trap Cover 1 C3-185P
15 Trap “O” Ring 1 U9-375
16 Basket 1 C8-58P
17 1/4” NPT Drain Plug 2 U178-920P
18 Base Screw 2 U30-918SS
19 Base Washer 2 U43-41SS
20 Base w/Motor Pad 1 C104-78P
21 Motor Pad 1 C35-43
22 3/8-16 x 1” Hex Head Screw 4 U30-74SS
• Decal “Suitable for outdoor use . . .” U27-635
• Voltage Sticker - 230 Volts U27-68
• Voltage Sticker - 115/230 Volts U27-153
• Tag, “CAUTION” 61002-0002
• Tag, “CAUTION, WARNING (Bonding) C63-12
• Nameplate*** U33-174

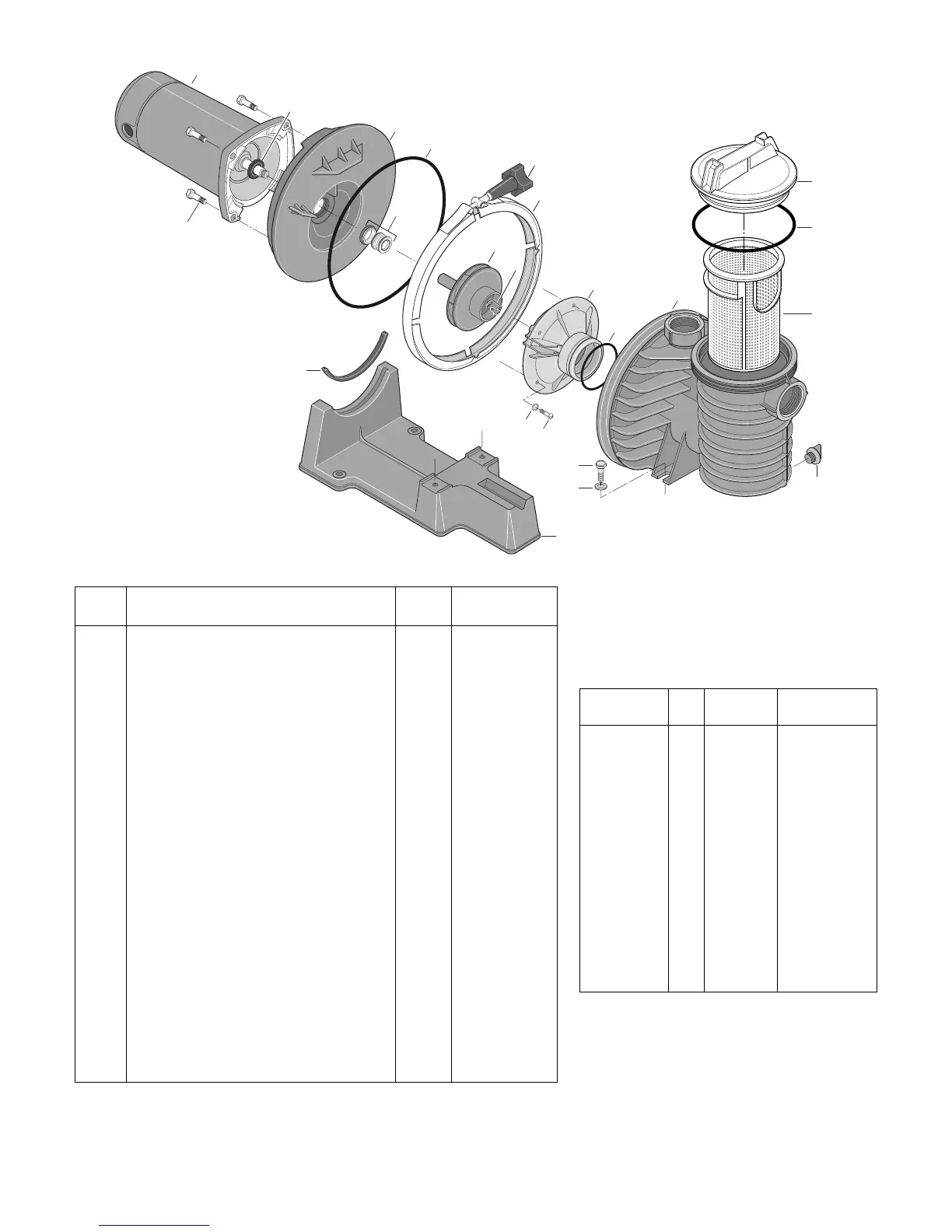

P4R and P4RA SERIES
DURA-GLAS II POOL PUMP
1 through 2-1/2 H.P. Models
• Not illustrated.
* Models P4R6E, P4RA6E, P4RA6F and P4RA6YF use Part No. C1-271P1.
** Model P4R6E, P4RA6E, P4RA6F and P4RA6YF use Part No. U30-542SS.
*** Model P4R6E use Part No. 32155-4071.
REPAIR PARTS LIST
Motor No. Impeller No.
Model No. HP (Key No. 1) (Key No. 10)
115/230 Volt
P4RA6E-186L 1 A100ELL C105-238P
P4R6E-187L 1 A100EHL C105-238PB
P4RA6F-187L 1-1/2 A100FLL C105-238PB
230 Volt
P4R6F-188L 1-1/2 A100FHL C105-238PDBA*
P4RAA6F-198L 1-3/4 A100F5LL C105-238PDCA**
P4R6G-189L 2 AE100GHL C105-238PEBA*
P4RA6G-188L 2 A100GHL C105-238PDBA*
P4RAA6G-189L 2-1/2 AE100G5LL C105-238PEBA*
230 Volt
2-Speed
P4RA6YF-187L 1-1/2 A100FLL-Y C105-238PB
P4RA6YG-188L 2 AE100GLL-Y C105-238PDBA
Parts are common to all models listed except as noted;
Key Nos. 1, Motor; and 10, Impeller are listed below.
*Uses #17301-0151 impeller screw assembly.
** Uses #37337-6080 impeller screw.
To Next Page
