Key Part Part
No. Description Qty. No.
1 Motor 1 Chart at Right
2 #10-32 x 1/2” Screw 1 U30-692SS
2A Lock Washer 1 U43-22SS
3Bonding Lug(#) 1 U17-568
4 Water Slinger 1 17351-0009
5 Seal Plate (includes Key Nos. 6 and 7) 1 C203-194P
6 “O” Ring 1 U9-228A
7 Shaft Seal 1 37400-0027S
8 Clamp 1 C19-37A
9 Clamp Knob 1 WC36-22
10 Impeller 1 Chart at Right
10A Impeller Screw Assembly* 1 17301-0151
11 Diffuser** 1 C1-271P
12 Diffuser “O” Ring 1 U9-374
13 #8 Lock Washer 5 U43-21SS
14 Screw† 5 U30-922SS
15 Tank Body 1 C176-59P
16 Trap Cover 1 C3-185P
17 Trap “O” Ring 1 U9-375
18 Basket 1 C8-58P
19 1/4” NPT Drain Plug 2 U178-920P
20 Base Screw 2 U30-918SS
21 Base Washer 2 U43-41SS
22 Base w/Motor Pad*** 1 C104-78P
23 Motor Pad*** 1 C35-43
24 3/8-16 x 1” Hex Head Screw 4 U30-74SS
• Decal “Suitable for outdoor use . . .” U27-635
• Tag, “CAUTION” 61002-0002
• Tag, “CAUTION, WARNING (Bonding) C63-12
•Nameplate U33-174
P4R SERIES
DURA-GLAS II POOL PUMP
208-230/460V 3 Phase Models
• Not illustrated.
* Model P4R6E3 uses Part No. 17301-0152.
** Models P4R6D3 and P4R6E3 use Part No. C1-271P1.
# Model P4R6H3-190 has no bonding lug assembly, Key Numbers, 2, 2A and 3.

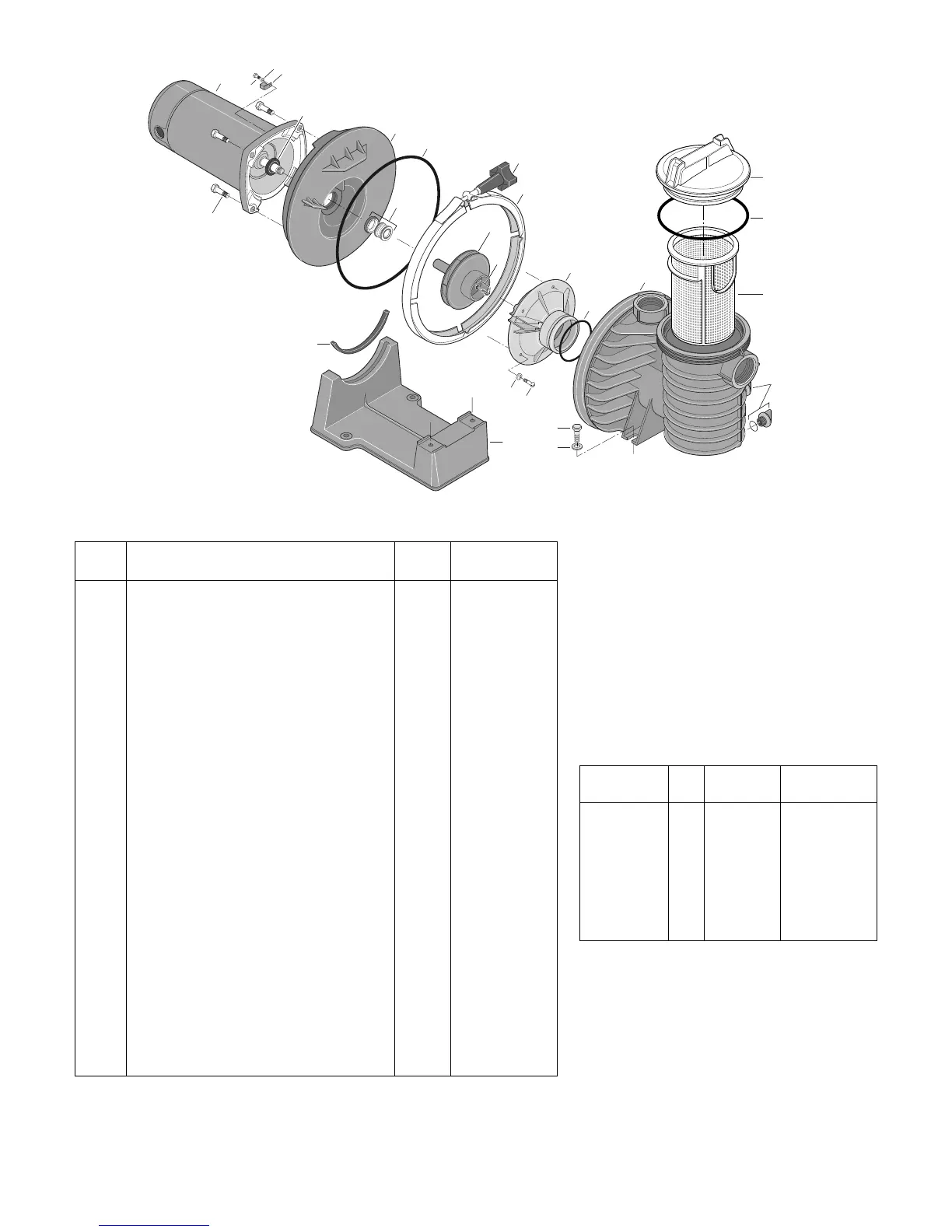

REPAIR PARTS LIST
Motor No. Impeller No.
Model No. HP (Key No. 1) (Key No. 10)
208-230/460-3Ø
P4R6D3-186 3/4 AP100DH C105-238PA
P4R6E3-187 1 AP100EH C105-238PBA
P4R6F3-188 1-1/2 AP100FH C105-238PDBA
P4R6G3-189 2 AP100GH C105-238PEBA
230/460-3Ø
P4R6H3-190 3 AP100HL C105-238PLA
Parts are common to all models listed except as noted;
Key Nos. 1, Motor; and 10, Impeller are listed below.
*** Model P4R6H3 uses Base No. C104-79P and
Pad No. C35-44.
† Models P4R6D3 and P4R6E3 use Part No. U30-542SS.
Models
P4R6D3-186
P4R6E3-187
P4R6F3-188
P4R6G3-189
P4R6H3-190
