STA-RITE MAX-E-GLAS IITM - Page 18

18
1
1860 0795
5
6
11
12
13
16
17
18
19
15
14
10
10A
7
8
9
3
4
2
2A
20
22
23
24
21
Key Part Part
No. Description Qty. No.
1 Motor 1 Chart at Right
2 #10-32 x 1/2” Screw 1 U30-856ZP
2A Lock Washer 1 U43-22SS
3 Bonding Lug 1 U17-568
4 Water Slinger 1 17351-0009
5 Seal Plate (includes Key Nos. 6 and 7) 1 C203-194P
6 “O” Ring 1 U9-228A
7 Shaft Seal 1 37400-0027S
8 Clamp Knob 1 C19-37A
9 Clamp 1 WC36-22
10 Impeller 1 Chart at Right
10A Impeller Screw Assembly* 1 17301-0151
11 Diffuser** 1 C1-271P
12 “O” Ring Diffuser 1 U9-374
13 #8 Lock Washer 5 U43-21SS
14 Screw*** 5 U30-922SS
15 Tank Body 1 C176-59P
16 Trap Cover 1 C3-185P
17 Trap “O” Ring 1 U9-375
18 Basket 1 C8-58P
19 1/4” NPT Drain Plug 2 U178-920P
20 Base Screw 2 U30-918SS
21 Base Washer 2 U43-41SS
22 Base w/Motor Pad 1 C104-78P
23 Motor Pad 1 C35-43
24 3/8-16 x 1” Hex Head Screw 4 U30-74SS
• Decal “Suitable for outdoor use . . .” U27-635
• Tag, “CAUTION” 61002-0002
• Tag, “CAUTION, WARNING (Bonding) C63-12
•Nameplate U33-174
P4R SERIES
DURA-GLAS II POOL PUMP
200/400V 3 Phase Models
• Not illustrated.
* Model P4R62E3-151 uses Part No. 17301-0152.
** Models P4R62D3, P4R62E3 use Part No. C1-271P1.
*** Models P4R62D3-150 and P4R62E3-151 use Part No. U30-542SS.

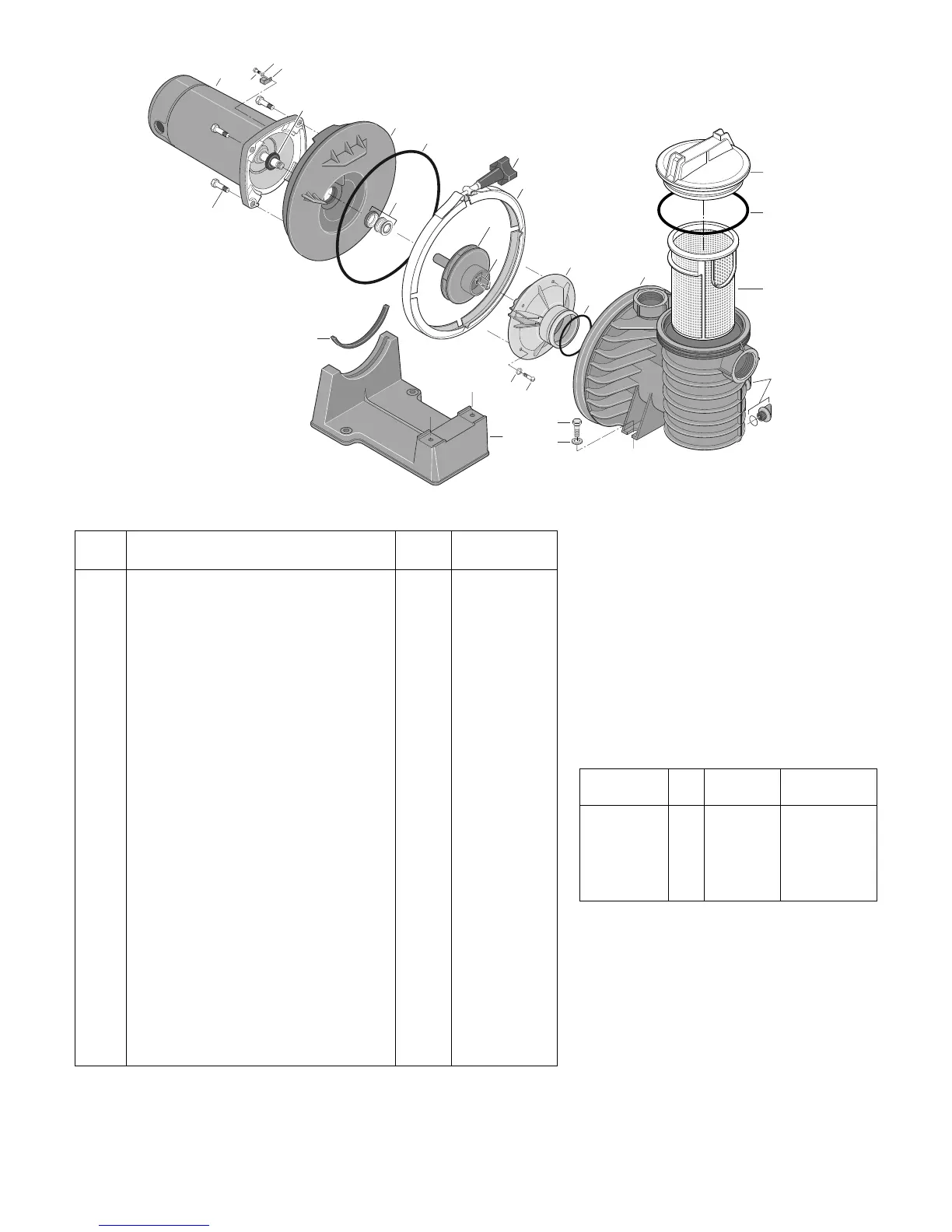

REPAIR PARTS LIST
Motor No. Impeller No.
Model No. HP (Key No. 1) (Key No. 10)
200/400V-3Ø
P4R62D3-186L 3/4 AP100DH2 C105-238PA
P4R62E3-187 1 AP100EH2 C105-238PBA
P4R62F3-188 1-1/2 AP100FH2 C105-238PDBA
P4R62G3-189 2 AP100GH2 C105-238PEBA
Parts are common to all models listed except as noted;
Key Nos. 1, Motor; and 10, Impeller are listed below.
Models
P4R62D3-186
P4R62E3-187
P4R62F3-188
P4R62G3-189
