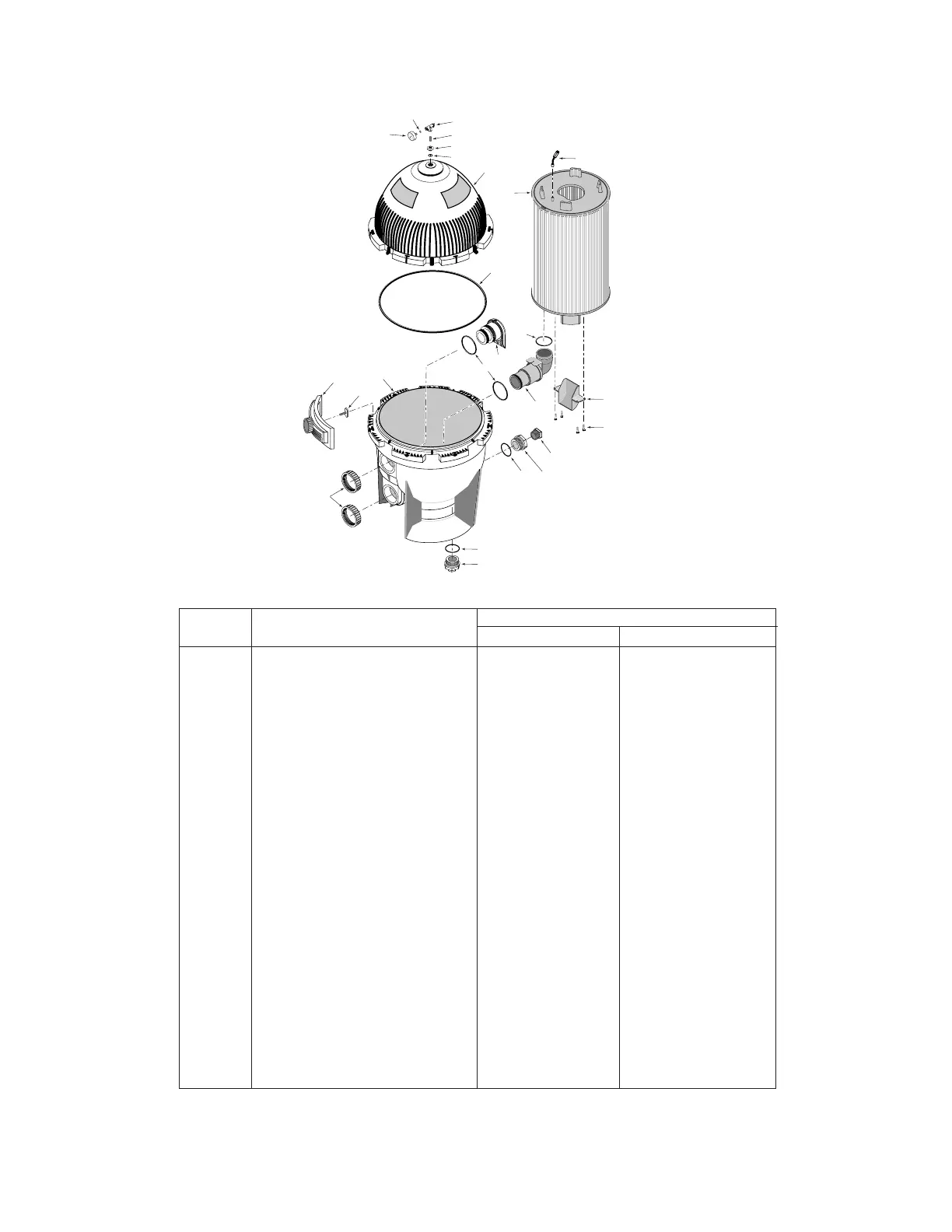

STA-RITE S7MD72 - Repair Parts List

4111 1201
0
5
1
0
1
5
2
0
2
5
3
0
3
5
4
0
4
5
5
0
5
5
6
0
2
4
3
1
5
6
7
8
10
9B
9A
23
22
21
20
16
17
18
19
18
11
12
13
14
15
14
MODELS
S7MD60
S7MD72
Key Part
Model No.
No. Description S7MD60 S7MD72
1 2 Inch Gauge 33600-0023T 33600-0023T
2 Screen Filter WC8-72D WC8-72D
3 Air Release Valve WC212-120P WC212-120P
4 Close Nipple 1/4 in. U37-16P U37-16P
5 Adapter Bushing 24900-0504 24900-0504
6 O-Ring 35505-1423 35505-1423
7 Upper Tank Shell Kit* 24851-9000 24851-9000
8 Tank O-Ring 24850-0008 24850-0008
9A Replacement Module 25023-0160S 25023-0172S
9B Air Bleed Assembly** 24800-0120 24800-0120
10 Baffle Kit (with Screws)** 23910-0013S 23910-0013S
11 Baffle Screws** 37027-7028 (4) 37027-7028 (4)
12 Elbow and Bulkhead Assembly*** 23910-0100S 23910-0100S
13 O-Ring 35505-7438 35505-7438
14 Deflector and Bulkhead Assembly 23910-0101 23910-0101
15 O-Ring 35505-1425 (2) 35505-1425 (2)
16 1-1/2" Plug with O-Ring 08419-0201 08419-0201
17 Adapter Fitting 24900-0509 24900-0509
18 O-Ring 35505-1424 (2) 35505-1424 (2)
19 Drain Plug 24900-0503 24900-0503
20 Bulkhead Retaining Nut 24752-0050 (2) 24752-0050 (2)
21 Lower Tank Shell 24850-0102S 24850-0102S
22 Clamp Bolt 24850-0010 (7) 24850-0010 (7)
23 Clamp Assembly 24850-0101 (7) 24850-0101 (7)
• Warning Decal 32165-4004 32165-4005
• Decal - Nameplate 32155-4147 32155-4148
• Decal - Instruction Label 1000001338 1000001338
• 2" Slip 1/2 Union Kit PKG 188 PKG 188
• Not illustrated Quantity one unless otherwise indicated ( ).
* Includes all decals and labels. ** Included with Key No. 9A Replacement Module.
*** Includes O-Ring (Key No. 13).
REPAIR PARTS LIST
