SECTION TWO – Heater Installation

If the temperature di fference is above the maximum,

ther e is not enough water flow to the heater. Check for

obstruc tions in the fi lter, skimmers, and plumbing. If

the water flow is still inadequate, a larger pump is

required.

If the temperature difference is less than the minimum,

the water flow rate to the heater is above 120 GPM, and

must be reduced by installing a manual bypass valve

(Figure 2-18). After installing the valve, adjust the valve

to bring the temperature difference within the accept-

able range, then remove the valve handle or lock it in

place to prevent tampering.

Above 2,000 feet elevation, derate the heater 4% per

1,000 feet of elevation aa

. That is, at 3,000

feet elevation, derate the heater 12%; at 5,000 feet eleva-

tion, derate the heater 20%. If local authorities allow it,

the Sta-Rite heater only requires to be derated 1.7% per

1,000 feet above sea level.

2-18

Heater Water Connections

1. Set Manual

Bypass Valve

2. Remove handle

Cool Water In

Warm Water Out

2680 1096

Inlet from

Filter

Outlet to

Pool

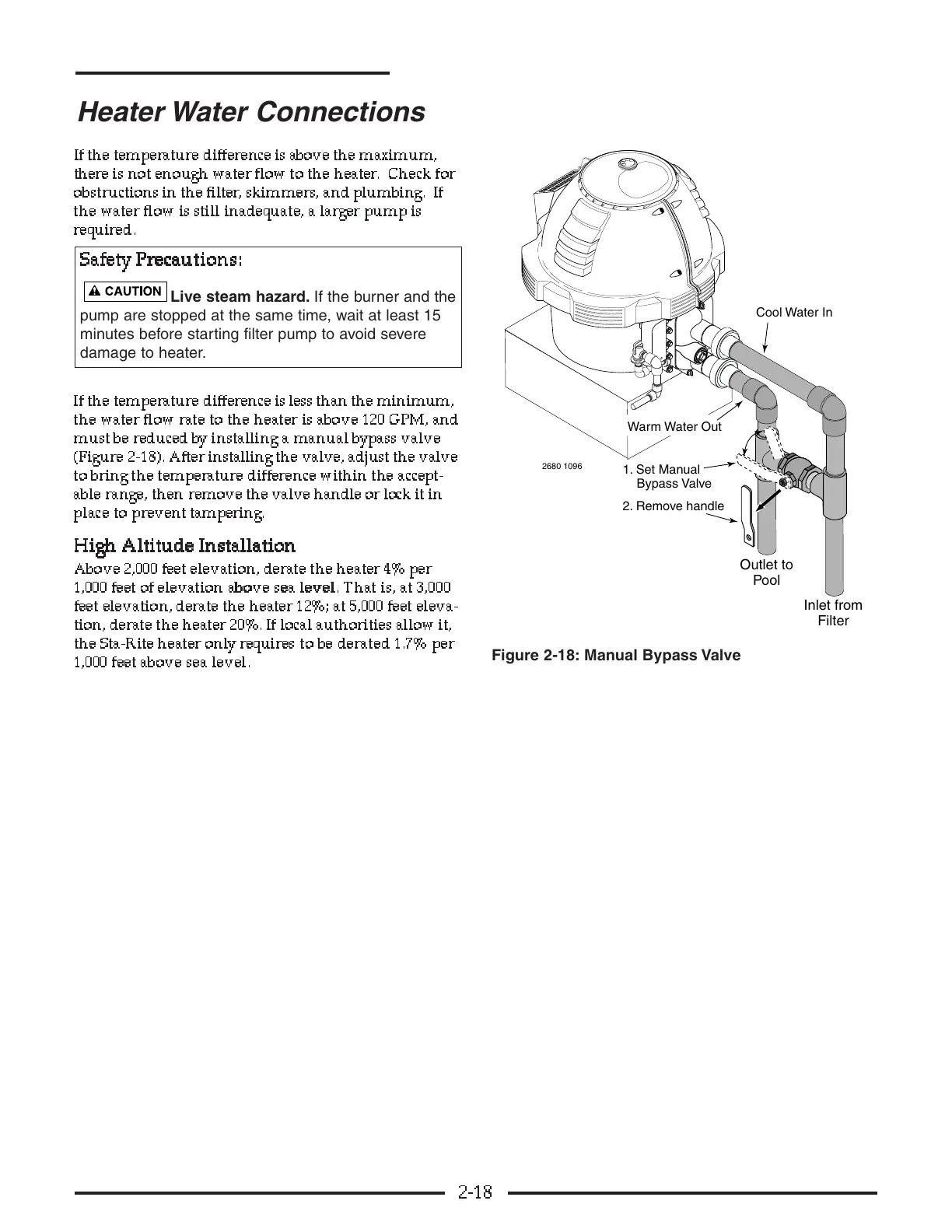

Figure 2-18: Manual Bypass Valve

Live steam hazard. If the burner and the

pump are stopped at the same time, wait at least 15

minutes before starting filter pump to avoid severe

damage to heater.

STA-RITE SRC400NA - Page 27
