Stabila LAX 50 G User Manual

LAX 50 G
7
en
The LAX 50 G cross line laser from STABILA is designed
for use on building sites and is perfectly adjusted before
leaving our premises. As with all precision instruments,
you must regularly check that the unit's accuracy is
calibrated. Always check this before you start work, par-
ticularly if the unit has been exposed to heavy vibrations.
Horizontal check
Vertical check
7. Checking accuracy
7.1 Vertical check

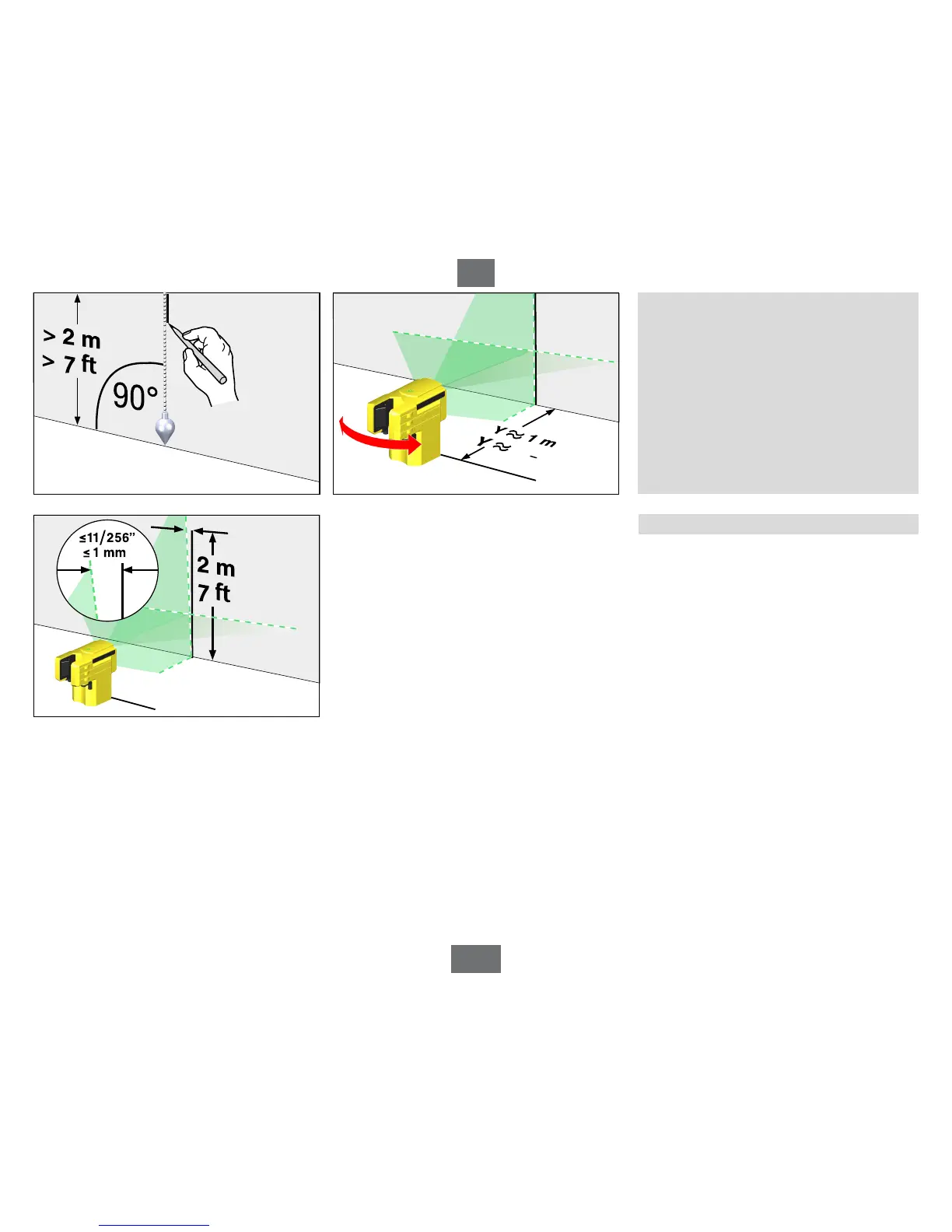

Checking the vertical laser line:
Create a reference line, e.g. with a plumb line.
Set up and align the LAX 50 G at distance Y in front of
this reference line.
Compare the laser line with the reference line.
Do not allow the laser line to deviate from the reference line
by more than 1 mm (11/256”) over a distance of 2 m ( 7) !
3
1
”
3

Stabila LAX 50 G Specifications

General

Wavelength	530 nm
Maximum range	30 m
Self-leveling	Yes
Number of laser lines	2
Leveling accuracy (±)	0.5 mm/m
Self-leveling range (±)	4.5 °
Operating time	7 h
Type	-
Certification	CE
Product color	Black, Yellow
Tripod thread	1/4, 5/8 \
Tripod mounting supported	No
International Protection (IP) code	IP53
