Stage6 S6-4080/OR User Manual

S6
INSTRUCTIONS
DIGITAL SPEEDOMETER, UNIVERSAL
EN
12
2
6
5
1
2
3 4
NOTE

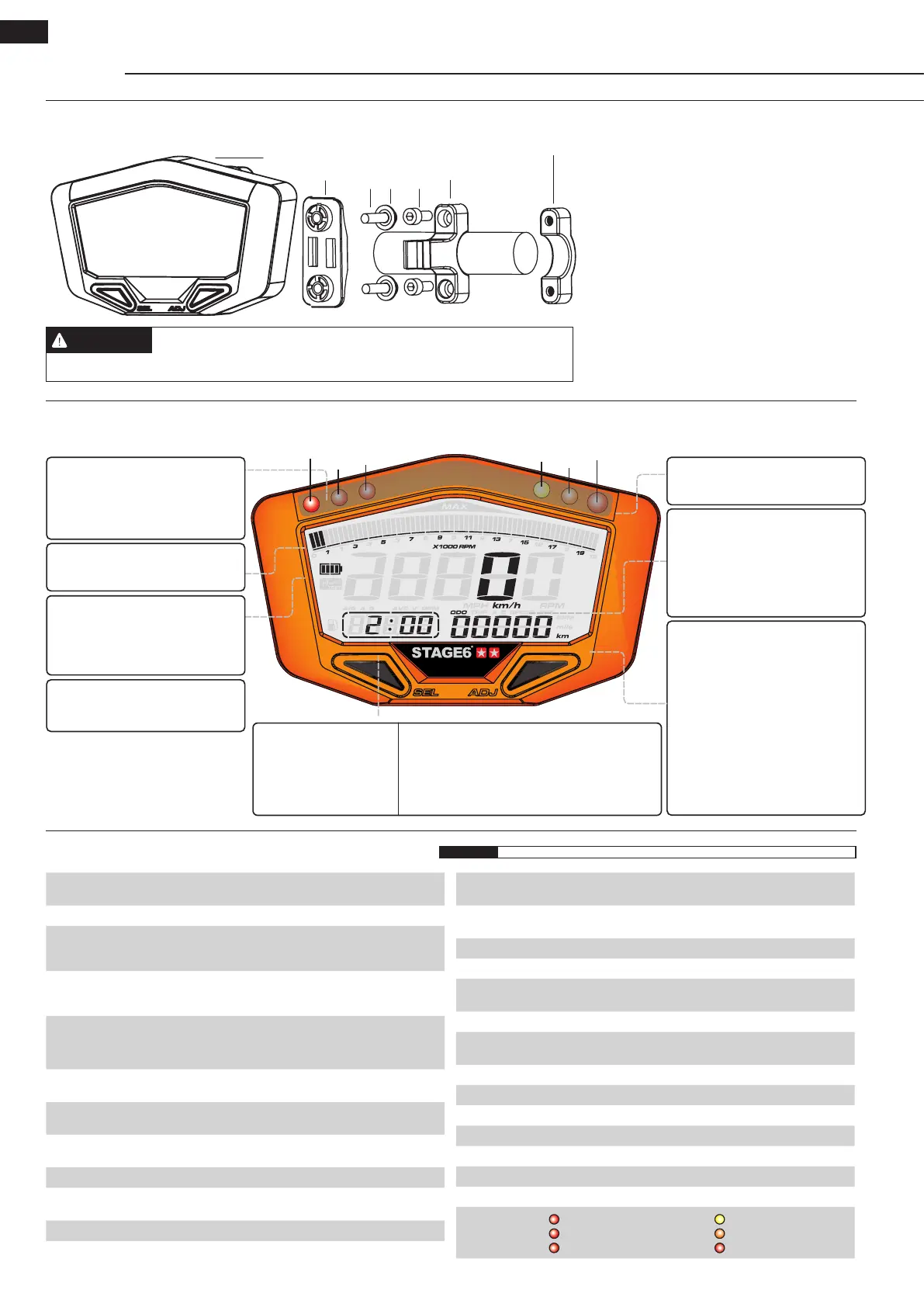

3.2 Functions and Specications
1 M5 x 12L screw (2 x)
2 Instrument bracket for handlebar
Mount the bracket to the handlebar
(7/8 inch)
3 M5 x 18L screw (2 x)
4 M5 washer (2 x)
5 Instrument mounting plate
6 Instrument
Attach the mounting plate to the instru-
ment using the screws and washers.
Then attach mounting plate with in-
strument to bracket on handlebar.
Please adjust the angle of the instrument before tightening the screws.
2.2 Installation
Speedometer Display range: 0–360 km/h (0–225 MPH)
Display unit: 1 km/h or 1 MPH
Display interval < 0.5 seconds
Odometer Display range: 0–99,999 km (miles),then auto-
matic reset
Display unit: 0.1 km (miles)
Tripmeter A/B Display range: 0–999.9 km (miles), then auto-
matic reset
Display unit: 0.1 km (miles)
Speed warning Setting range: 30–360 km/h (19–225 MPH)
Setting unit: 1 km/h (MPH)
Maximum speed Display range: 0–360 km/h (0–225 MPH)
Tyre circumference Setting range: 300–2,500 mm
Setting unit: 1 mm; sensor points: max. 6
Tachometer (digital) Display range: 20,000 RPM
Display unit: 10 RPM
Tachometer (bar) Display range: either up to 10,000, 15,000 or
20,000 RPM
Thermometer Display unit: °C or °F
Thermometer A/B Display range: 0–250 °C (32–482 °F)
Display unit: 0.1 °C (°F)
Display interval < 0.5 seconds
Engine hours meter Display range: 0–999.9 h; display unit: 0.1 h
Shift light Display range: 5,000–20,000 RPM
Display unit: 100 RPM
Pre-shift light A/B Display range: 500–5,000 RPM
Display unit: 100 RPM
Maximum RPM Setting range: 0–20,000 RPM
RPM pulse Setting values: 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6
Temperature alarm A/B Display range: 60–250 °C (140–482 °F)
Display unit: 1 °C (°F)
Temperature alarm Setting unit: 0–250 °C (32–482 °F)
Voltmeter Display range: DC 0–18 V
Display unit: DC 0.1 V
Operating voltage DC 12 V
Battery type CR2032
Service life of battery ca. 220 h non-stop
Operating temperature -10 to +60 °C
Standard JIS D 0203 S2
Instrument size 100 x 60 x 20 mm
Instrument weight 200 g
Alarm lights
T
-
A
T
-
B
S
P
E
E
D
DIGITAL
3.1 The Display
Temperature Alarm A/B
•Setting range: 60–250 °C (140–482 °F)
•Setting unit: 1 °C (°F)
Speed Warning
•Setting range: 30–360 km/h (19–225 MPH)
•Setting unit
: 1 km/h (MPH)
Tachometer (Adjustable Bar)
•Display range: either up to 10,000, 15,000
or 20,000 RPM
Battery Status
•If the battery is fully charged, 4 battery bars
will be displayed.
•If the instrument is connected to the external
power supply, the battery symbol will
disappear.
Auto Sleep
•If there is no input signal for more than 20
seconds, the instrument will automatically
enter sleep mode.
Clock
•Mode: 24 h
•If the instrument is off, the
seconds will be displayed.
Voltmeter
•Display range: 0.0–18.0 V
•Display unit: 0.1 V
•If the instrument is connected to the external power supply,
the voltage will be displayed. Otherwise “0.0 V” will be
displayed.
Shift Light
•Setting range: 5,000–20,000 RPM
•Setting unit: 100 RPM
Speedometer
•Display range: 0–360 km/h (0–225 MPH)
•Display unit: 1 km/h (1 MPH)
Tachometer (Digital)
•Display range: 0–20,000 RPM
•Display unit: 10 RPM
Odometer
•Display range: 0–99,999 km (miles)
Automatic reset after 99,999 km (miles)
•Display unit: 0.1 km (miles)
Tripmeter A/B
•Display range: 0–999.9 km (miles)
Automatic reset after 999.9 km (miles)
•Display unit: 0.1 km (miles )
A
A
Speed
RPM
B
B
Designandspecicationsaresubjecttochangewithoutnotice!
NOTE
Speed (red)
Temperature alarm A (red)
Temperature alarm B (red)
Shift light A (yellow)
Shift light B (orange)
Shift light (red)
Speed (red)
Temperature alarm A (red)
Temperature alarm B (red)
Shift light A (yellow)
Shift light B (orange)
Shift light (red)
