S6
INSTRUCTIONS
DIGITAL SPEEDOMETER, UNIVERSAL
EN
14
The available tachometer ranges are:
0–10,000 / 15,000 or 20,000 RPM.
NOTE
NOTE

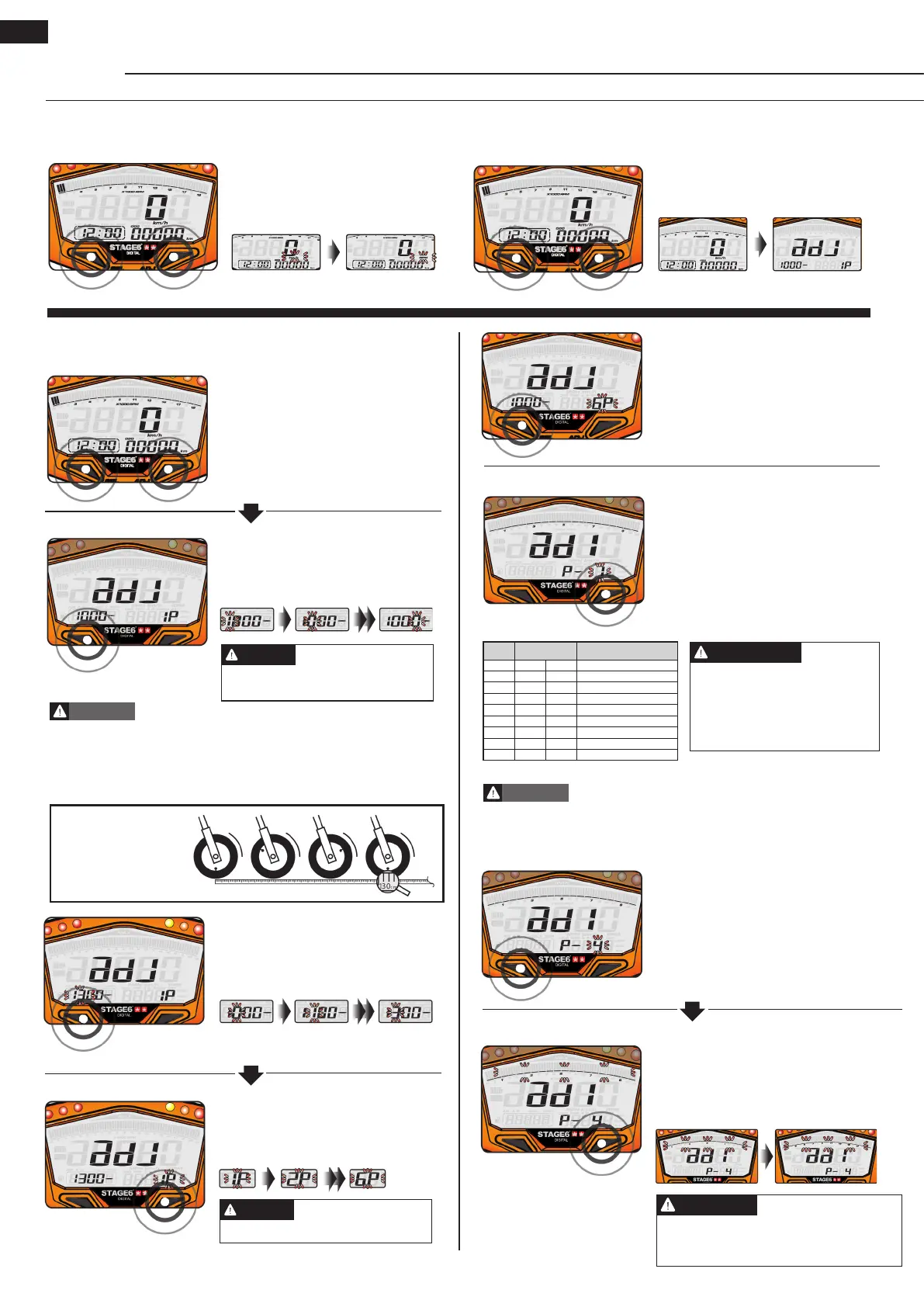

4.1.3 Pressing Both Buttons At Once
4-1-1 4-1-2 4-1-3
4-1-4
4-2
13 0c m
T
-
A
T
-
B
S
P
E
E
D
DIGITAL
T
-
A
T
-
B
S
P
E
E
D
DIGITAL
4-1-1 4-1-2 4-1-3
4-1-4
4-2
13 0
c m
T
-
A
T
-
B
S
P
E
E
D
DIGITAL
T
-
A
T
-
B
S
P
E
E
D
DIGITAL
•In the main screen, press both but-
tons at once to switch from digital
speedometer to digital tachometer.
•In the main screen, press and hold
the button for 3 seconds to enter the
tyre circumference and the number of
sensor points.
•Press the Adjust Button to change
the respective digit.
• E.g.: The tyre circumference
setting has been changed from
1,000 mm to 1,300 mm.
•Press the Adjust Button to enter the
respective number.
• E.g.: The number of sensor points
is 6.
• E.g.: The tyre circumference is
1,300 mm.
•Press the Select Button to move
between digits.
•Press and hold both buttons for 3
seconds to enter set-up mode (see
4.2).
4.2 Setting Up the Instrument
Setting range: 300–2,500 mm
Setting unit: 1 mm
NOTE
In Main Screen
Tyre Circumference
• Please measure the circumference of the tyre you will install the sensor on
and check the number of magnet sensor points (magnets can be installed
e.g. in a disc screw.)
• The speed displayed on the meter will be affected by this setting, so please
make sure to enter the correct value.
WARNING
Four-stroke engines with one cylinder that ignite every 360° will have to be
treated just like two-stroke engines with one cylinder.
CAUTION
When measuring the
tyre circumference with a
measuring tape, you can
use the valve as starting
and end point
• E.g.: The number of sensor points
has been changed from 1 to 6.
•Press the Select Button to get to the
setting of the RPM pulse.
• E.g.: The current value is to be
changed to 2.
•Press the Adjust Button to enter the
desired value. To see which value is
the correct one, see table below.
• E.g.: The value is 0.5 (4C-1P).
• E.g.: The bar tachometer range is
to be set to 20,000 RPM.
•Press the Adjust Button to select the
desired range.
• E.g.: The value has been changed
to 2 (4C-4P).
•Press the Select Button to get to the
setting of the RPM range.
Setting range: max. 6
NOTE
The following settings are pos-
sible:
0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6
C stands for number of cy-
cles, P for number of pistons.
Bar Tachometer Range
RPM Pulse
•Presstheselectbuttontoenterthe
sensor points.
Setting
value
Cycle and piston
number
Number of RPM pulses per
ignition
0.5 4C-1P 2 pulses per ignition
1 2C-1P 4C-2P 1 pulse per ignition
1.5 4C-3P
2 2C-2P 4C-4P 1 pulse per 2 ignitions
2.5 4C-5P
3 2C-3P 4C-6P 1 pulse per 3 ignitions
4 2C-4P 4C-8P 1 pulse per 4 ignitions
5 4C-10P 1 pulse per 5 ignitions
6 2C-6P 4C-12P 1 pulse per 6 ignitions
Sensor Points
