Stamina 1735 - Assembly Instructions: Supports and Tightening; Step 7: Attaching Dip Arm Supports and Arm Cushions; Step 8: Attaching Ankle Support

ASSEMBLY INSTRUCTIONS

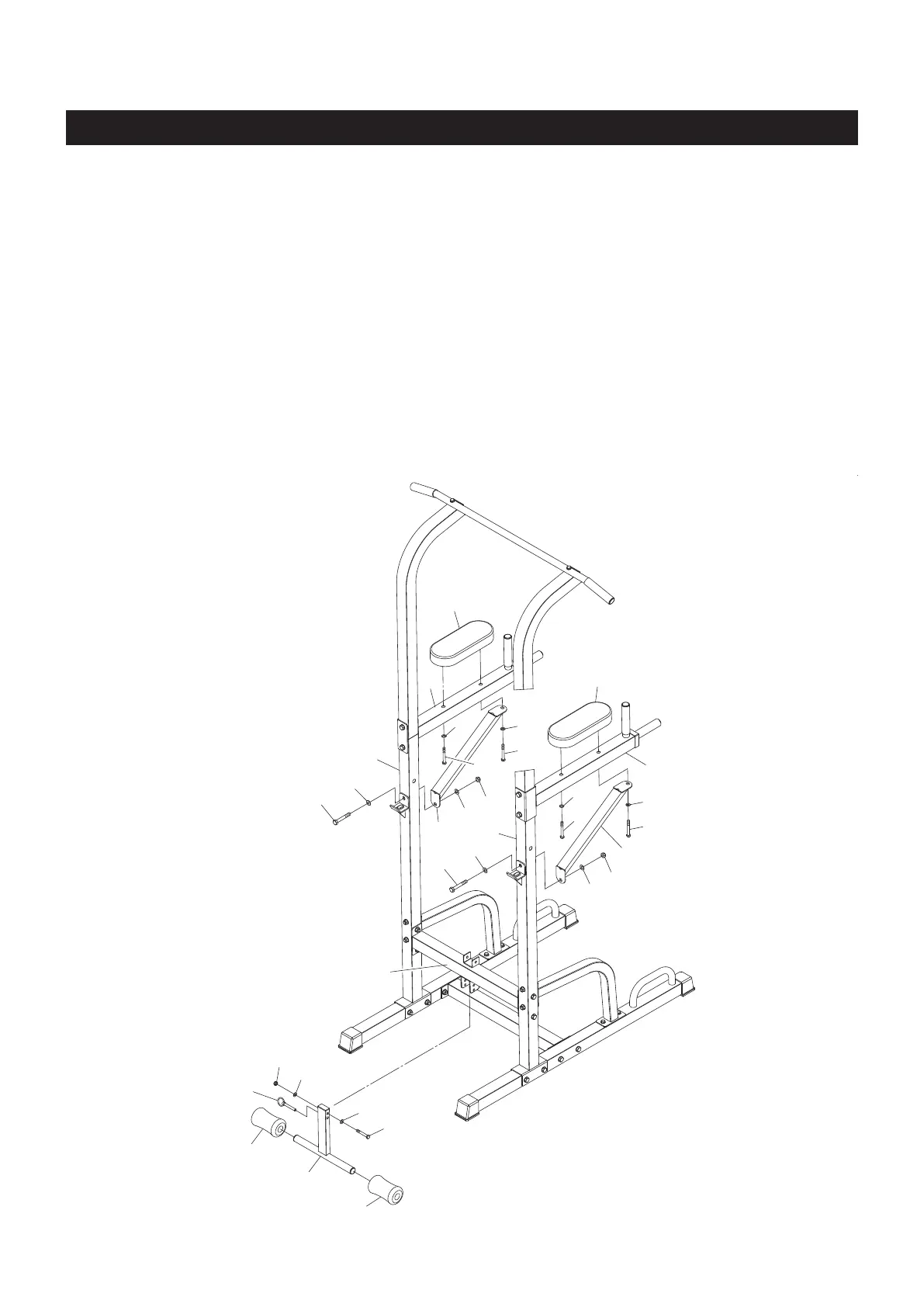

STEP 7
Attach a DIP ARM SUPPORT(10) to the UPRIGHT(3) on right side with HEX BOLT(M10x1.5x65mm)(30),
WASHERS(M10)(36), and NYLOCK NUT(M10x1.5)(38). Attach other end of the DIP ARM SUPPORT
(10) and ARM CUSHION(18) to the RIGHT DIP ARM(9) with HEX BOLTS(M8x1.25x65mm)(33) and
WASHERS(M8)(37). Repeat on other side. SECURELY TIGHTEN ALL OF THE BOLTS FROM STEP 1
TO STEP 7.
STEP 8
Attach the ANKLE SUPPORT(13) to the U bracket under the UPRIGHT CROSS BAR(6) with HEX
BOLT(M8x1.25x55mm)(34), WASHERS(M8)(37), and NYLOCK NUT(M8x1.25)(39). Lock the ANKLE
SUPPORT(13) in position by inserting the PULL PIN(16) through one of the adjustment holes in the U
bracket under the UPRIGHT CROSS BAR(6) and the holes in the ANKLE SUPPORT(13). Slide the
FOAM PADS(19) onto both ends of the ANKLE SUPPORT(13).
10
33
37
33
37
36
38
9
8
18
18
10
10
3
3
13
16
19
19
34
37
37
39
6
30
36
30
36
36
38
33
37
33
37
RIGHT
LEFT
