Stamina 1735 - Assembly Instructions: Dip Arms and Pull-Up Bar; Step 5: Attaching Dip Arms; Step 6: Attaching Pull-Up Bar

ASSEMBLY INSTRUCTIONS

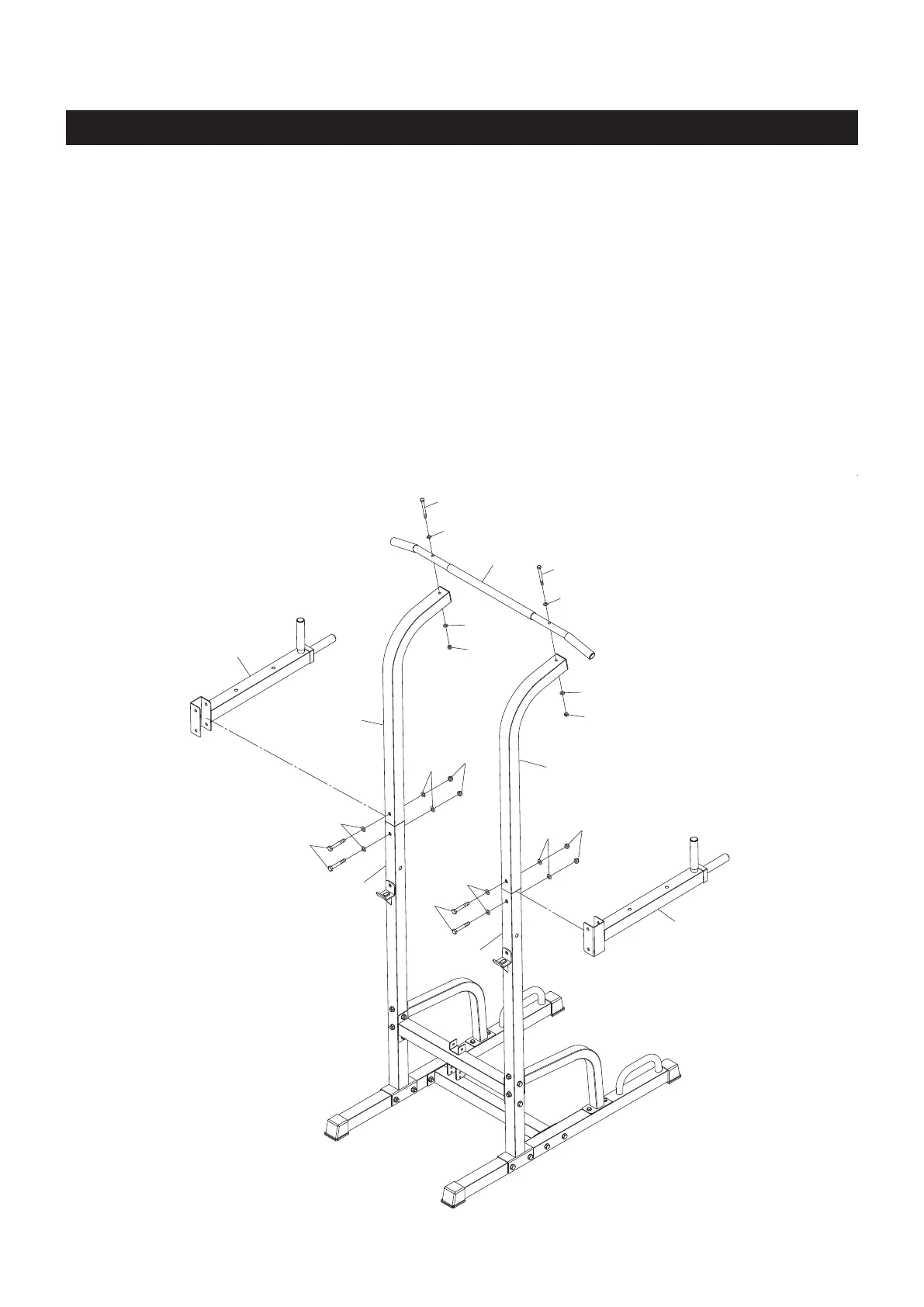

STEP 5
Attach the RIGHT DIP ARM(9) to the UPRIGHT(3) and UPPER UPRIGHT(5) on right side with HEX
BOLTS(M10x1.5x65mm)(30), WASHERS(M10)(36), and NYLOCK NUTS(M10x1.5)(38). Repeat on
other side.
STEP 6
Attach the PULL-UP BAR(12) to the UPPER UPRIGHTS(5) with HEX BOLTS(M8x1.25x85mm)(32),
WASHERS(M8)(37), and NYLOCK NUTS(M8x1.25)(39).
