ASSEMBLY INSTRUCTIONS
NOTE: DO NOT SECURELY TIGHTEN ALL BOLTS UNTIL STEP 7.

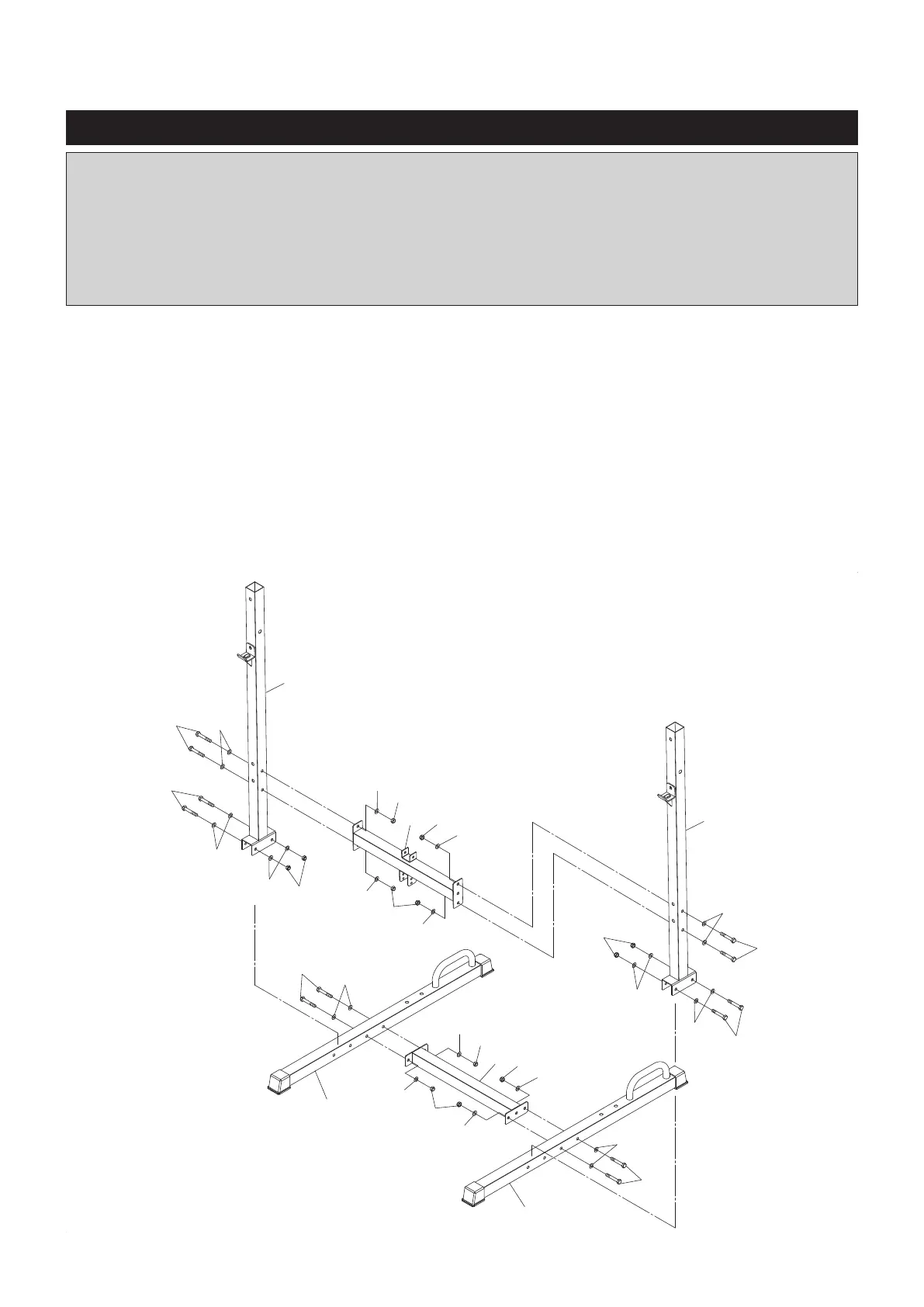

STEP 1
Attach the BASES(1) to both sides of the BASE CROSS BAR(2) with HEX BOLTS(M10x1.5x65mm)(31),
WASHERS(M10)(36), and NYLOCK NUTS(M10x1.5)(38).
STEP 2
Attach the UPRIGHTS(3) to the BASES(1) on both sides with HEX BOLTS(M10x1.5x65mm)(30),
WASHERS(M10)(36), and NYLOCK NUTS(M10x1.5)(38). Slide the UPRIGHT CROSS BAR(6) between
both of the UPRIGHTS(3), and bolt them together with HEX BOLTS(M10x1.5x65mm)(31), WASHERS
(M10)(36), and NYLOCK NUTS(M10x1.5)(38).
7
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer.care@staminaproducts.com, or call us toll free at 1-800-375-7520
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
