Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please
call our toll-free number for assistance 1 (800) 375-7520 or e-mail us at:
parts@staminaproducts.com
6
ASSEMBLY INSTRUCTIONS

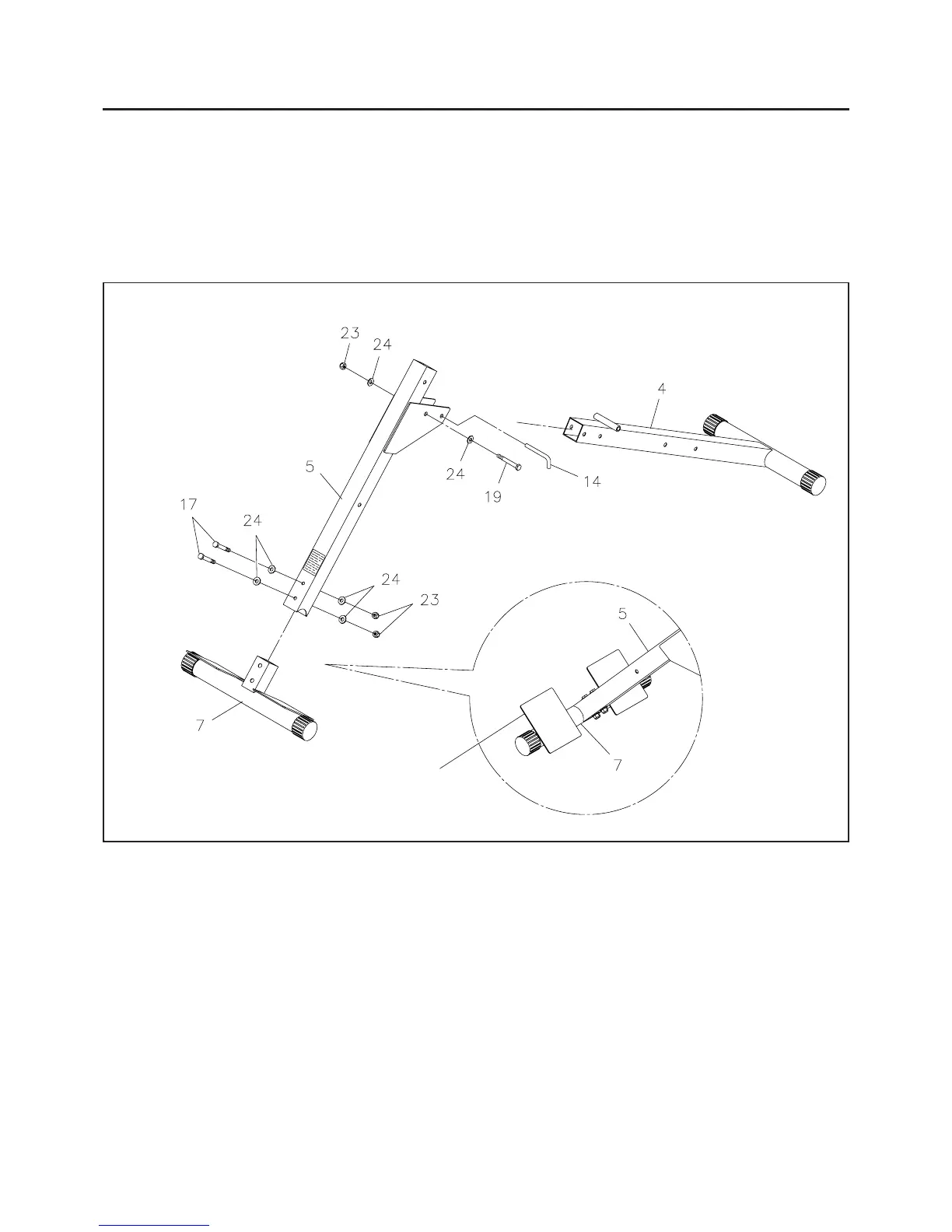

STEP 1
Attach the CUSHION SUPPORT FRAME(4) onto the SUPPORT POST(5) with HEX BOLT
(M10 x 75mm)(19), WASHERS(M10)(24), and NYLOCK NUT(M10)(23). Lock the CUSHION
SUPPORT FRAME(4) in position with the LOCKING PIN(14).
STEP 2
Make sure the long ends of the Foot Plates on the FOOT SUPPORT(7) point to front. Insert the FOOT
SUPPORT(7) into the SUPPORT POST(5) and secure with HEX BOLTS(M10 x 65mm)(17),
WASHERS(M10)(24), and NYLOCK NUTS(M10)(23).
FRONT
BACK
The long ends of the Foot Plates
on the FOOT SUPPORT(7) must
point to front.
