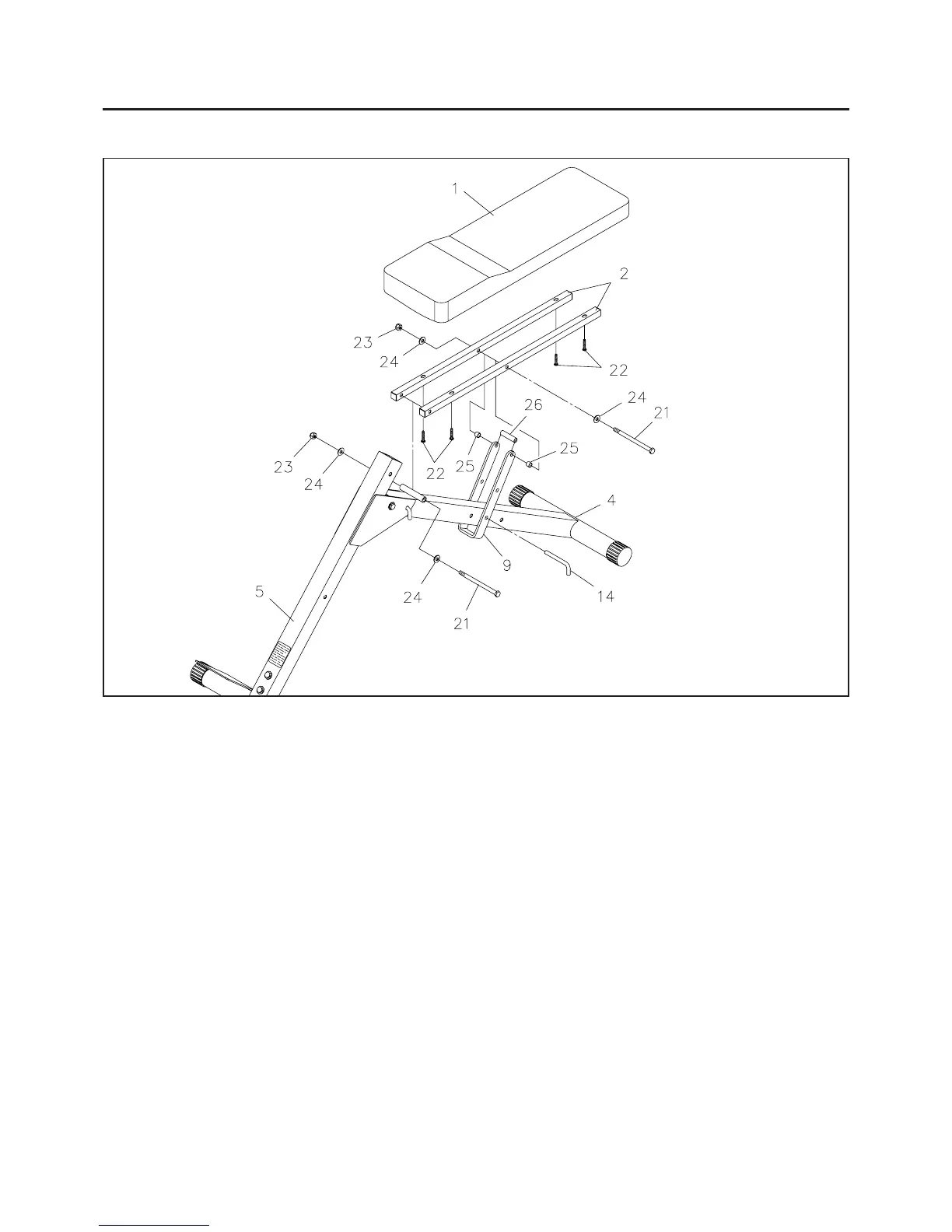

ASSEMBLY INSTRUCTIONS
STEP 3
Attach the two CUSHION RAILS(2) onto the CUSHION SUPPORT FRAME(4) with HEX BOLT
(M10 x 140mm)(21), WASHERS(M10)(24), and NYLOCK NUT(M10)(23).
NOTE: Tighten until snug, the CUSHION RAILS(2) must be allowed to pivot.
7
STEP 4
Slide the SEAT ADJUSTMENT(9) around CUSHION SUPPORT FRAME(4) and between the
CUSHION RAILS(2). To attach the open end of the SEAT ADJUSTMENT(9) to the CUSHION
RAILS(2), insert the HEX BOLT(M10 x 140mm)(21) through the WASHERS(M10)(24), CUSHION
RAILS(2), SPACERS(25), SEAT ADJUSTMENT(9), LONG SPACER(26), and tighten together with
NYLOCK NUT(M10)(23). Refer to the Illustration.
NOTE: Tighten until snug, the CUSHION RAILS(2) must be allowed to pivot.
STEP 5
The SEAT CUSHION (1) can be adjusted to three different incline positions. To position the SEAT CUSHION(1)
to desired elevation, select one of the holes in the SEAT ADJUSTMENT(9) and attach the SEAT
ADJUSTMENT(9) to one of the holes in the CUSHION SUPPORT FRAME(4) with the LOCKING PIN(14).
STEP 6
Attach the SEAT CUSHION(1) onto the CUSHION RAILS(2) with ROUND HEAD BOLTS
(M6 x 34mm)(22).
