ASSEMBLY INSTRUCTIONS

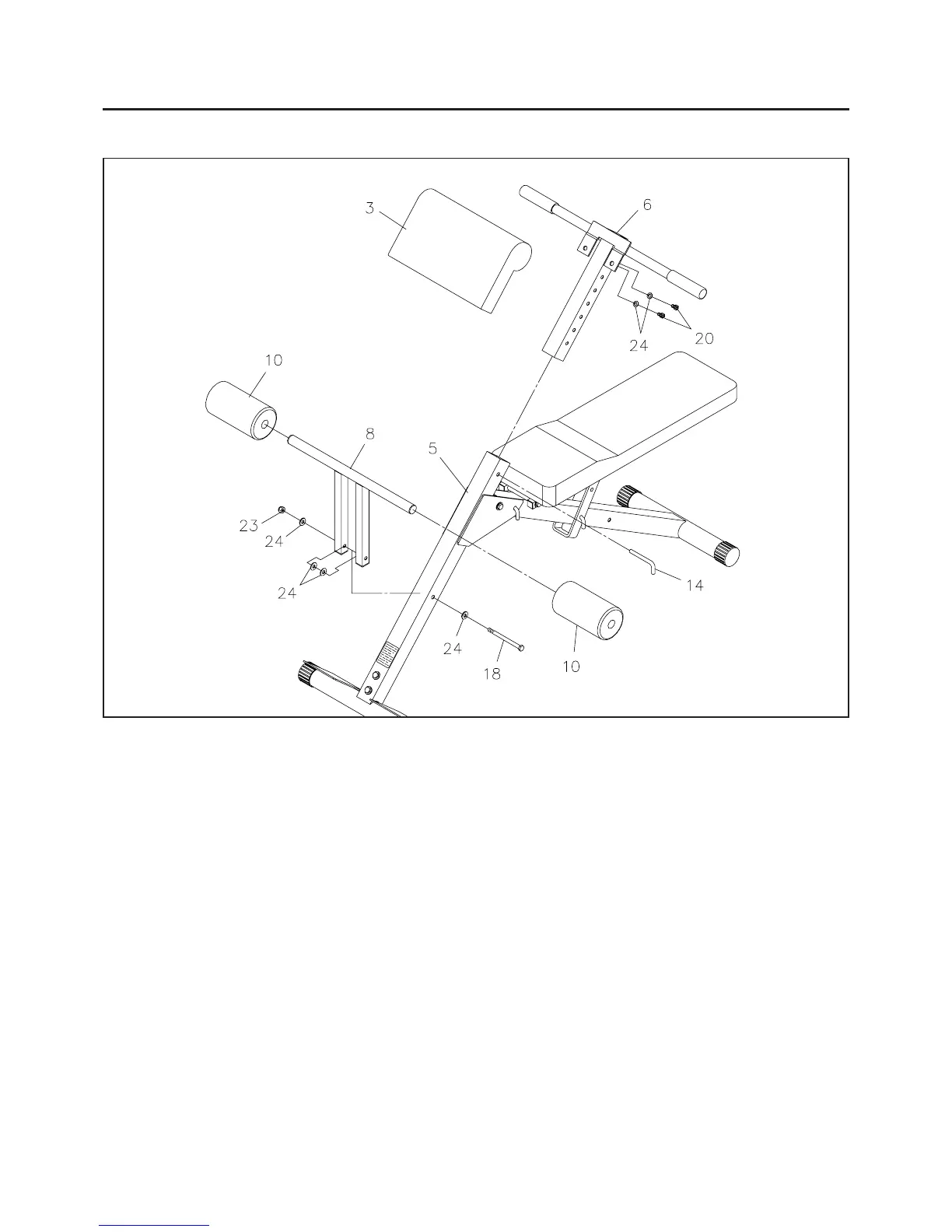

STEP 7
Attach the ANKLE SUPPORT(8) onto the SUPPORT POST(5) with a HEX BOLT(M10 x 120mm)
(18), four WASHERS(M10)(24), and a NYLOCK NUT(M10)(23). Refer to the illustration for washer
location. Slide the
FOAM ROLLS(10) onto both sides of the ANKLE SUPPORT(8).
STEP 8
Attach the KNEE CUSHION(3) onto the HANDLEBAR POST(6) with HEX BOLTS(M10 x 20mm)(20)
and WASHERS(M10)(24). Insert the HANDLEBAR POST(6) into the SUPPORT POST(5) and lock
in position with the
LOCKING PIN(14).
NOTE:
8
There are the selection holes in the
HANDLEBAR POST(6) for adjusting the heigh of the KNEE
CUSHION(3).
