ASSEMBLY INSTRUCTIONS

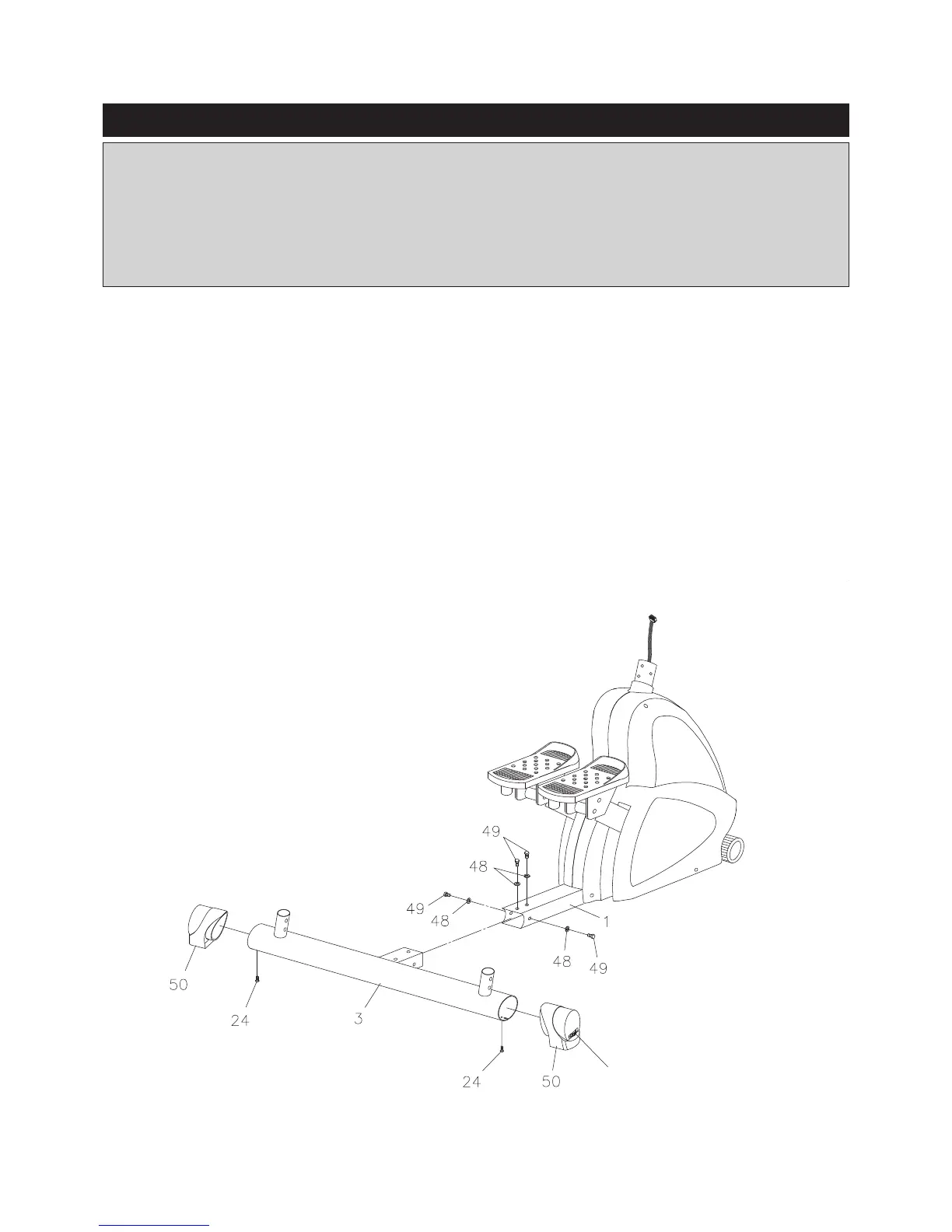

STEP 1
Press the LEVELING CAPS(50) onto both sides of the REAR STABILIZER(3) and secure with FLAT
HEAD SCREWS(M5x0.8x12mm)(24).
STEP 2
Attach the REAR STABILIZER(3) to the MAIN FRAME(1) with HEX HEAD BOLTS(M8x1.25x12mm)(49)
and WASHERS(M8)(48).
NOTE: You can turn the dials in the LEVELING CAPS(50) which are attached to the REAR
STABILIZER(3) to keep the AVARI® Programmable Stepper stable.
7
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Service section and order the part needed,
e-mail us at customerservice@staminaproducts.com, or call us toll free at 1-800-375-7520 (in the
U.S.). Our Customer Service Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
