ASSEMBLY INSTRUCTIONS

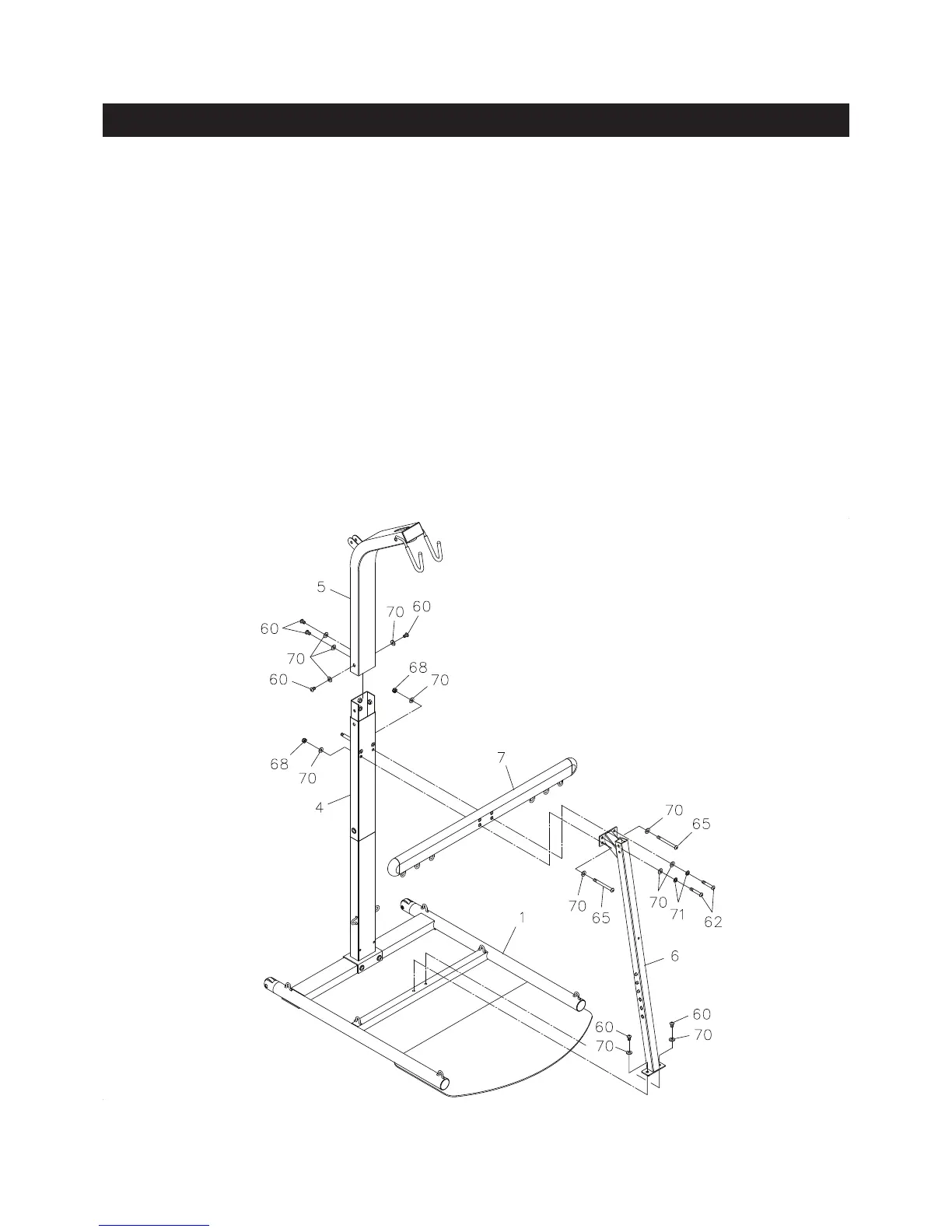

STEP 4
Attach the TOP BEAM(5) to the UPRIGHT(4) with BUTTON HEAD BOLTS(M10x1.5x15mm)(60) and
WASHERS(M10)(70).
STEP 5
Attach the CROSSING BAR(7) and FRONT SUPPORT(6) to the UPRIGHT(4) with BUTTON HEAD
BOLTS(M10x1.5x110mm)(65), WASHERS(M10)(70), NYLOCK NUTS(M10x1.5)(68), LOCK
WASHERS(M10)(71), and BUTTON HEAD BOLTS(M10x1.5x60mm)(62). Do not tighten the bolts.
STEP 6
Attach the FRONT SUPPORT(6) to the BASE FRAME(1) with BUTTON HEAD BOLTS(M10x1.5x15mm)
(60) and WASHERS(M10)(70). Securely tighten all of the bolts from STEP 5.
8
