Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the
packing materials until assembly is completed. Read each step carefully before beginning. If you
are missing a part please call our toll-free number for assistance 1-800-375-7520 or e-mail us at
customerservice@staminaproducts.com.
ASSEMBLY INSTRUCTIONS

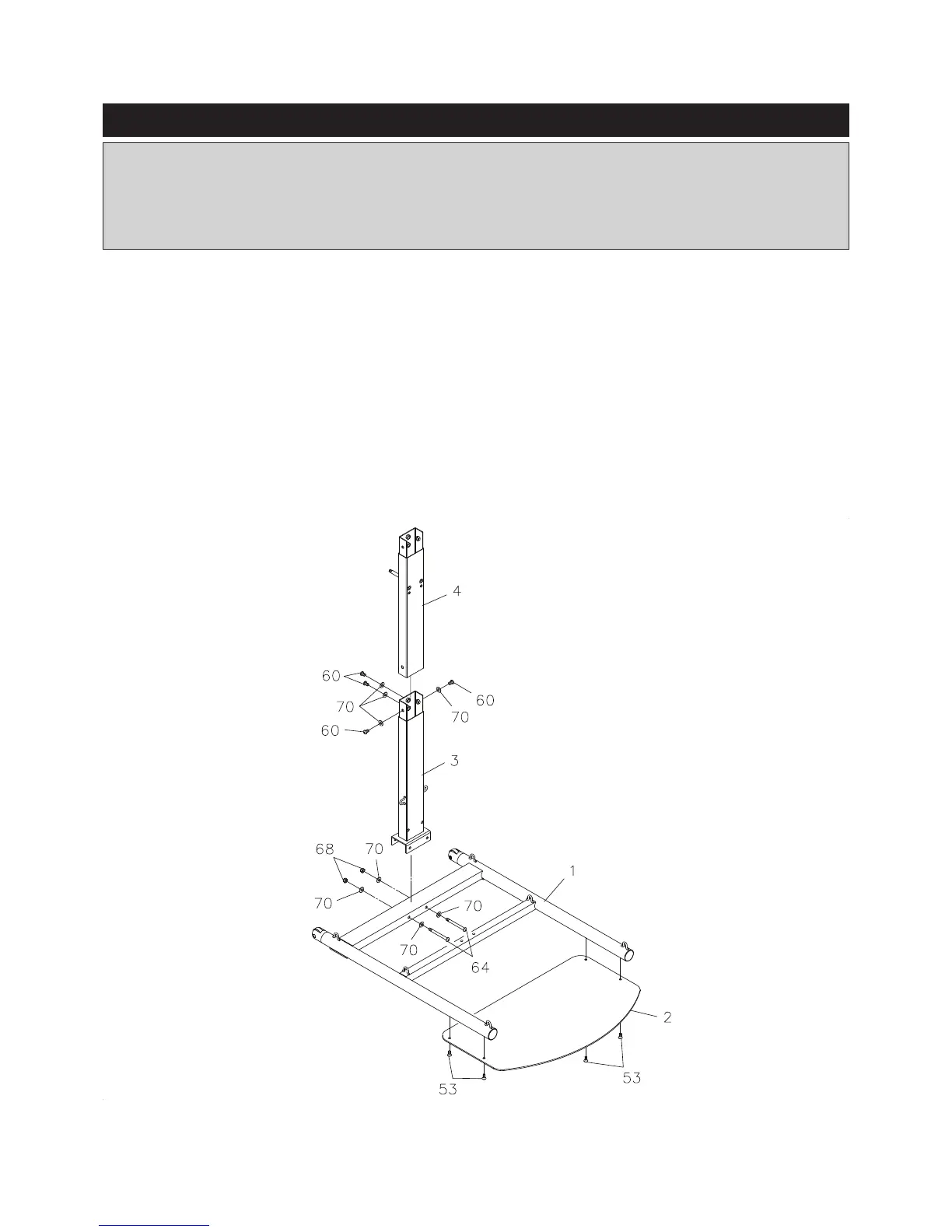

STEP 1
Attach the BASE PLATE(2) to the BASE FRAME(1) with FLAT HEAD BOLTS(M8x1.25x20mm)(53).
STEP 2
Attach the L OWE R U PR IG H T( 3) to the BAS E FRA ME (1) with BUTTON HEAD BOLTS
(M10x1.5x105mm)(64), WASHERS(M10)(70), and NYLOCK NUTS(M10x1.5)(68).
STEP 3
Attach the UPRIGHT(4) to the LOWER UPRIGHT(3) with BUTTON HEAD BOLTS(M10x1.5x15mm)(60)
and WASHERS(M10)(70).
7
To Next Page
