SET UP INSTRUCTIONS
LEVELING:
MOVING:
Equipment Mat

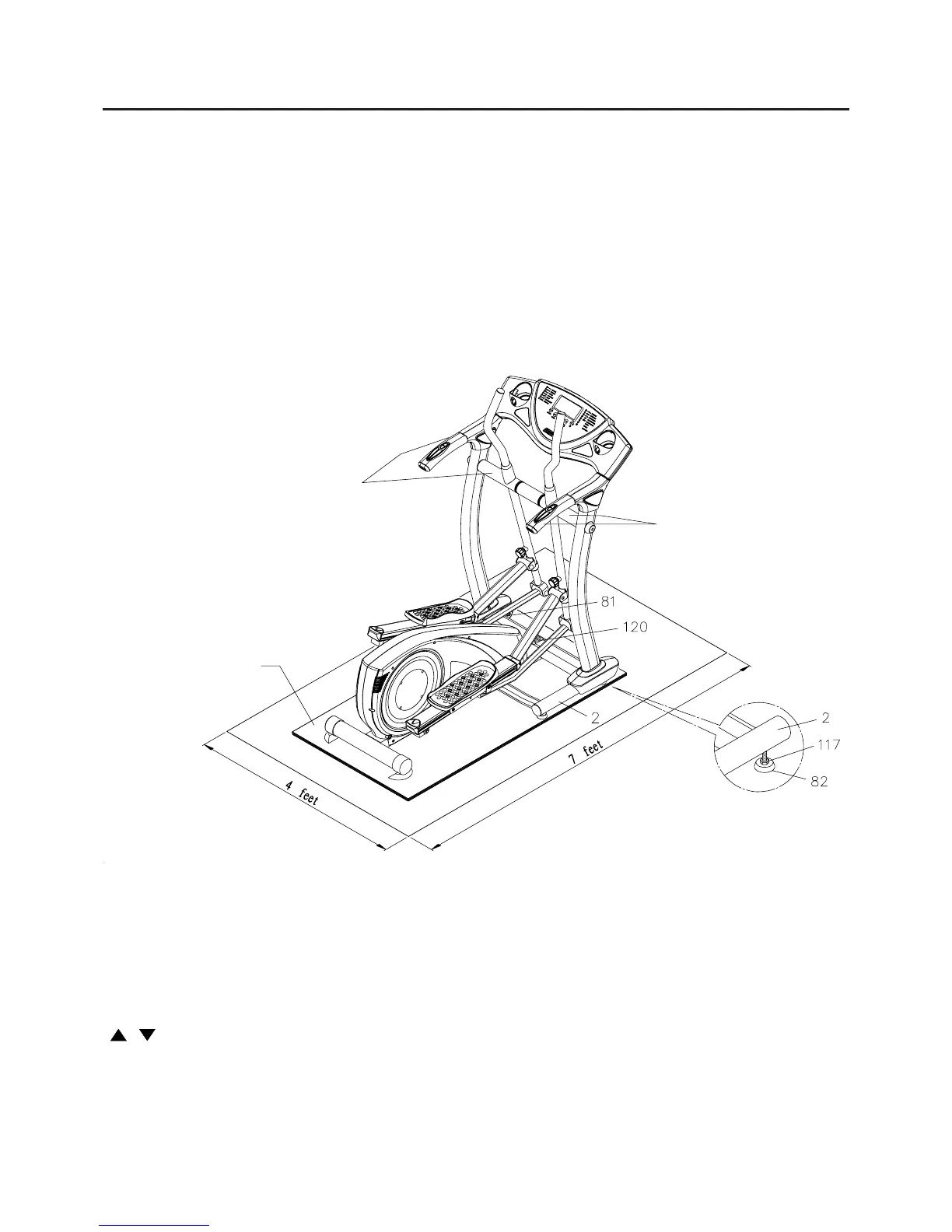

Place the EX 3.0 in the area where it will be used. It is recommended that the EX 3.0 be placed on an
equipment mat. The maximum usage dimensions of EX 3.0 are approximately 62 5/8" long x 32 3/4" wide x
58 3/8" tall. (These dimensions may vary up to one inch.) An area 4 feet wide x 7 feet long is required for
safe operation of the EX 3.0. Make sure that adequate space is available for access to and passage around
the EX 3.0.
Adjust the LEVELING STANDS(82) under the FRONT BASE(2) so that the EX 3.0 sits on the
floor without rocking. Refer to the instructions below the illustration.
Grasp the HANDRAILS and the shaft of the PIVOTING ARMS to lift and move the EX 3.0.
Two people are required.
12
Loosen the NUTS(M8x1.25)(117) until they
touch the LEVELING STANDS(82). Adjust the
LEVELING STANDS(82) for leveling. Tighten
the NUTS(M8x1.25)(117) securely against the
FRONT BASE(2) to lock the stand in position.
Grasp these parts
for moving
Grasp these parts
for moving
FUNCTION INSPECTION:
Visually inspect the EX 3.0 to verify that assembly is as shown in the above illustration. Check the function
of the EX 3.0. Stand on the foot pedals and place your hands at a comfortable position on the handlebars.
Slowly move your highest foot forward and follow the natural path of the machine. Turn the crank slowly
through one complete revolution to verify that the drive train functions properly. Use the "ENTER" and
"
/ " buttons on the COMPUTER(25) to select a program and verify that the Magnetic System provides
different tensions. Refer to the COMPUTER INSTRUCTIONS on pages 14 to 22.
Locate and read the WARNING LABEL(120) on the EX
3.0. Make sure that all users read the
WARNING LABEL(120).
