ASSEMBLY INSTRUCTIONS
10

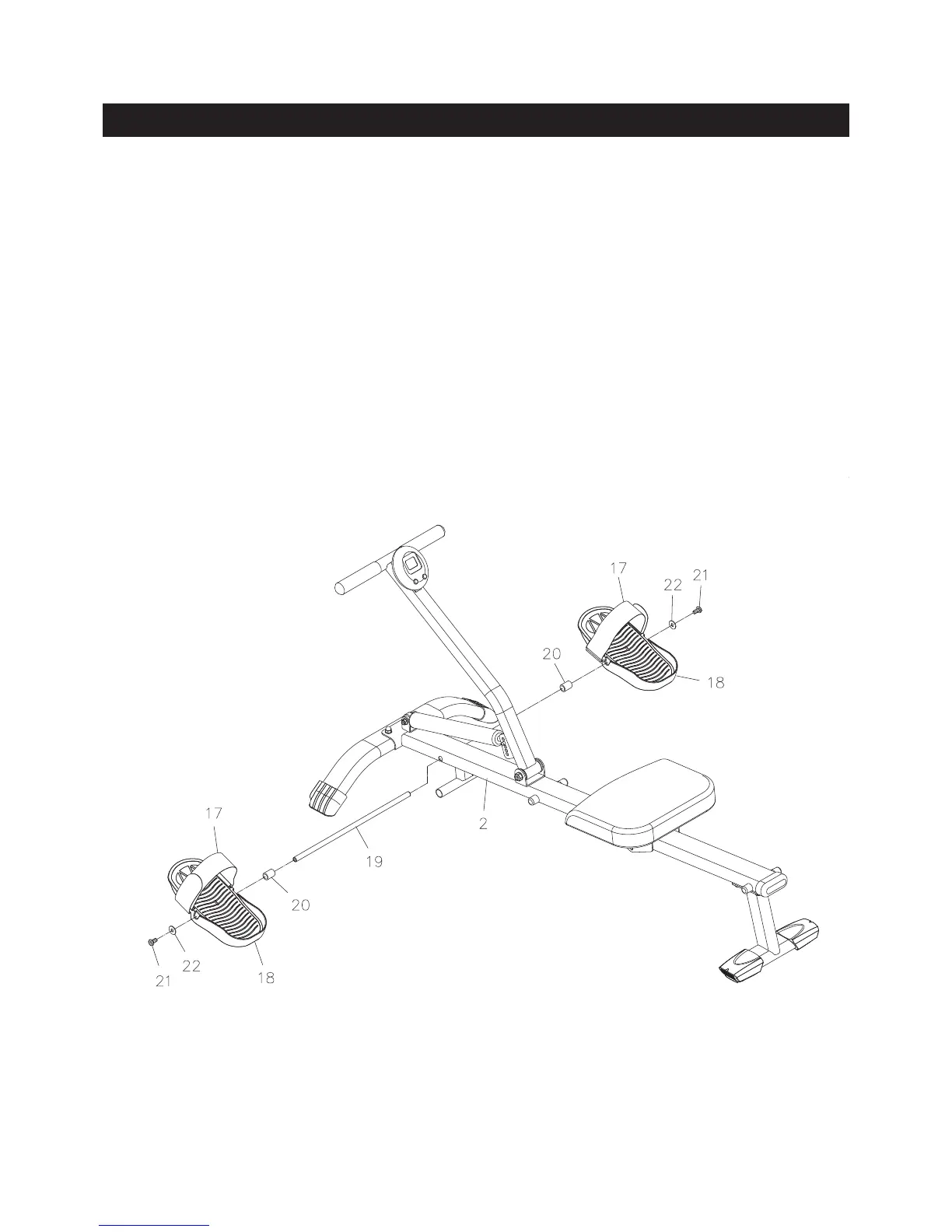

STEP 9
Insert the PEDAL SHAFT(19) through holes located on the CENTER BEAM(2). Slide a PEDAL SPACER(20)
and a PEDAL CAP(18) onto each end of the PEDAL SHAFT(19). Then secure the PEDAL CAPS(18)
with BUTTON HEAD BOLTS(M8x1.25x15mm)(21) and LARGE WASHERS(M8)(22) at both ends of the
PEDAL SHAFT(19).
NOTE: You need to use two Allen Wrenches to tighten the BUTTON HEAD BOLTS(M8x1.25x15mm)(21)
at both ends of the PEDAL SHAFT(19) at the same time.
